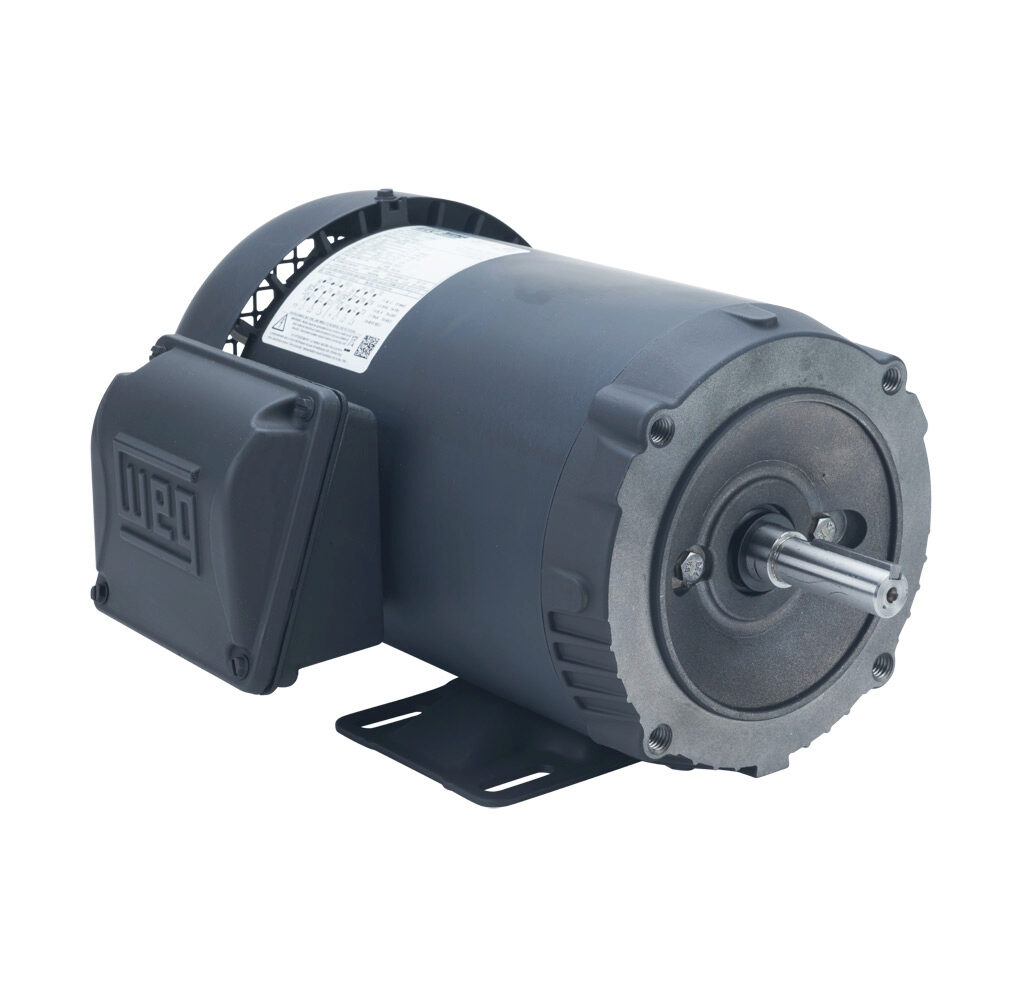

WEG 00156ET3E56C-S Electric Motor, 1 1/2Hp, 60 HzHz, 3520 Rpm | BB4AEF

WEG 00156ET3E56C-S 14798674 General Purpose Motor, 1.5 HP, 2 Poles, 56C Frame, 3 Phase, 230/460//190-220/380-415 V, 60 Hz, IC411-TEFC, Foot Mounted

Item: BB4AEFModel: 00156ET3E56C-SCross Ref: 52XR35 / 14798674
Check Availability
In Stock

Get it by Tuesday, Jul 7

€567.36
5.00% off
€539.00 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 1.87/3.74A , 3.74/1.87A
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 300%
Cc Number CC029A
Cold Locked Rotor Time 30 sec.
Connection Cables Quantity 9
Constant Torque Rating 5:1
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 84%
Efficiency 50% 71% , 80%
Efficiency 75% 82.5%
Efficiency @ 1 % 88%
Efficiency @ 100% 84%
Efficiency @ 75 % 82%
Efficiency Group Premium Efficiency
Electrically Reversible Yes
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Polymer , Steel
Fan Material Plastic
Flange C
Flange Type C
Frame 56C
Frame Material Rolled Steel
Frame Size 56C
Frequency 50/60 Hz , 60 Hz
Full Load Amps 3.74/1.87A
Full Load Amps @ 50 Hz 4.02/2.13/4.44/2.22A
Grounding Lugs Single
Hot Locked Rotor Time 17 sec.
Hp 1 1/2 hp
Hp @ 50 Hz 1 1/2 hp
Impregnation Method Dip And Bake Polyester
Included Conduit Box
Ins. Class Class F
Insulation Class Class F
Integrated Brake No
Inverter Rated Yes
Ip Rating IP55
L. R. Amps 17/34A , 34/17A
Length Less Shaft 11 1/4"
Locked Rotor Time (cold) 30 sec.
Locked Rotor Time(hot) 17 sec.
Locked Rotor Torque 229%
Lrc 9.1X(Code L)
Main Terminal Box Hole 0.881"
Main Terminal Box Hole Size 0.881"
Max. Ambient Temp. 40°C
Moment Of Inertia 0.1023 lbs.-sq. ft.
Moment Of Inertia (j) 0.1023 lbs.-sq. ft.
Motor Application General Purpose And Inverter Rated
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame 56C
Motor Frame Material Steel
Motor Mounting Position All Angle
Motor Mounting Type Rigid Base
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation CW, CCW
Motor Speed 3520 RPM
Motor Type Induction
Mounting F-1 , Foot Mounted
Mounting Orientation Horizontal, Vertical
Nameplate Speed 3520 RPM
Nema Design Design B
No Load Amps 0.859/1.72A , 1.72/0.859A
No. Of Phase 3
No. Of Poles 2
No. Of Speeds 1
Noise Level 68 dBA
Nominal Efficiency 84%
Output 1 1/2 hp
Output Rating 1 1/2 hp
Overall Length 13 1/8"
Overload Protection No
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor 100% 0.88
Power Factor 50% 0.71
Power Factor 75% 0.82
Power Factor @ 1 % 84
Power Factor @ 50 % 80
Power Factor @ 75 % 82.5
Product Datasheet weg-00156et3e56c-s.pdf
Resilient Base Without
Rotation CW, CCW
Screw Cap Carbon Steel
Series S Series
Service Factor 1.15
Shaft Dia. 5/8"
Shaft Length 1 7/8"
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Shaft Type Round With Square Key
Slip 2.22%
Speed 3001-3600 RPM , 3400-3600 RPM , 3520 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 2.24 lbs.-ft.
Tropicalized Painting Without
Usable @ 200v No
Usable @ 208v Yes
Variable Torque Rating 1000:1
Voltage 190-220/230/380-415/460V , 208-230/460V AC , 230/460V AC
Voltage Type AC

Shipping Info:

Ship weight (kg) 15.62
Ship height (cm)48.26
Ship length (cm)33.34
Ship width (cm)45.72
Country of OriginBR
