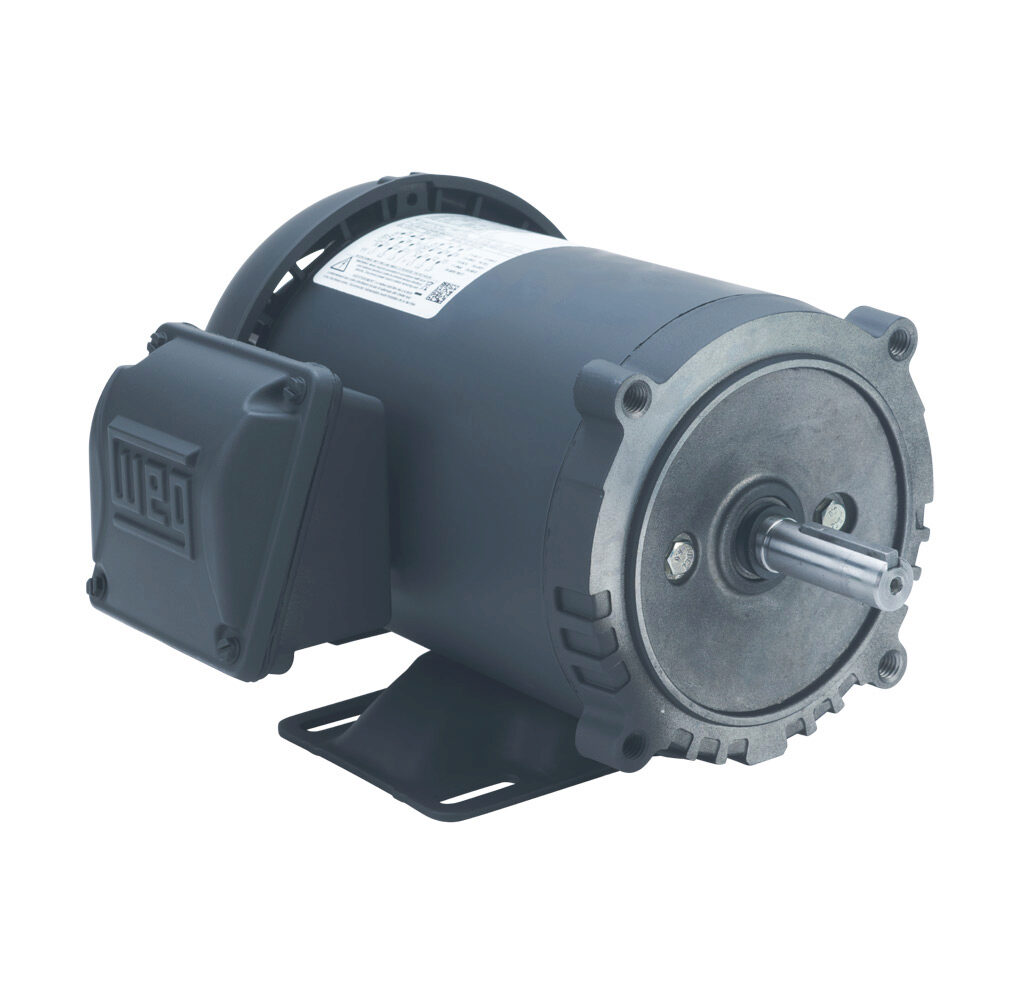

WEG 00136ET3EW56C-S 13483260 Electric Motor, 1Hp, 60Hz, 3600 Rpm
Get it by Tuesday, Dec 23
10.00% off
€424.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | Not Balanced |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 380% |
| Cc Number | CC029A |
| Cold Locked Rotor Time | 18 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Efficiency At 1 % | 80% |
| Efficiency At 50 % | 63% |
| Efficiency At 75 % | 75% |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer |
| Fan Material | Plastic |
| Flange Type | C |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frame Size | 56C |
| Frequency | 50/60 Hz |
| Full Load Amps | 3/1.5A |
| Full Load Amps @ 50hz | 3.13/1.66/3.4/1.7A |
| Grade | Grade 1045 |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 10 sec. |
| Hp | 1 hp |
| Hp @ 50hz | 1 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| Includes | Conduit Box |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Ip Rating | IP55 |
| L. R. Amps | 26.4/13.2A |
| Length Less Shaft | 9 1/4" |
| Locked Rotor Torque | 360% |
| Lrc | 8.8X(Code M) |
| Main Terminal Box Hole Size | 0.881" |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 40°C |
| Moment Of Inertia | 0.0254 lbs.-sq. ft. |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 56C |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Speed | 3435 RPM |
| Motor Type | Induction |
| Mounting | Foot Mounted |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Rpm | 3435 RPM |
| No Load Amps | 1.6/0.798A |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Noise Level | 65 dBA |
| Nominal Efficiency | 78.5% |
| Number Of Phases | 3 |
| Output | 1 hp |
| Output Rating | 1 hp |
| Overall Length | 11 1/8" |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 78.5 |
| Power Factor At 50 % | 74 |
| Power Factor At 75 % | 77 |
| Rated Current | 3/1.5A |
| Rated Torque | 1.53 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 3400-3600 RPM |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Diameter | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Ships Factory Direct | No |
| Slip | 4.58% |
| Standards | Csa, Ul |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 230/460V |
| Weight | 22 lbs. |
Shipping Info:
| Ship weight (kg) | 10.36 |
| Ship height (cm) | 48.26 |
| Ship length (cm) | 28.26 |
| Ship width (cm) | 45.72 |
| Country of Origin | BR |
Product Variants
| Model | Voltage | Frequency | Service Factor | Full Load Amps | Hp | Nameplate Rpm | Motor Type | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118ET3H143TC-W22 | 575V AC | 60 Hz | 1.25 | 1.18A | 1 hp | 1760 RPM | Three Phase | Rigid Base | €772.12 | |
| 00156ET3H143TC-W22 | 575V AC | 60 Hz | 1.25 | 1.57A | 1 1/2 hp | 3480 RPM | Three Phase | Rigid Base | €840.81 | |
| 00158ET3H145TC-W22 | 575V AC | 60 Hz | 1.25 | 1.62A | 1 1/2 hp | 1755 RPM | Three Phase | Rigid Base | €768.36 | |
| 00236ET3H145TC-W22 | 575V AC | 60 Hz | 1.25 | 2.05A | 2 hp | 3475 RPM | Three Phase | Rigid Base | €853.67 | |
| 00218ET3H145TC-W22 | 575V AC | 60 Hz | 1.25 | 2.21A | 2 hp | 1755 RPM | Three Phase | Rigid Base | €841.96 | |
| 00336ET3H182TC-W22 | 575V | 60 Hz | 1 | 2.9A | 3 hp | 3515 RPM | Three Phase | Rigid Base | €1,055.20 | |
| 00318ET3H182TC-W22 | 575V AC | 60 Hz | 1.25 | 3.1A | 3 hp | 1760 RPM | Three Phase | Rigid Base | €954.68 |
