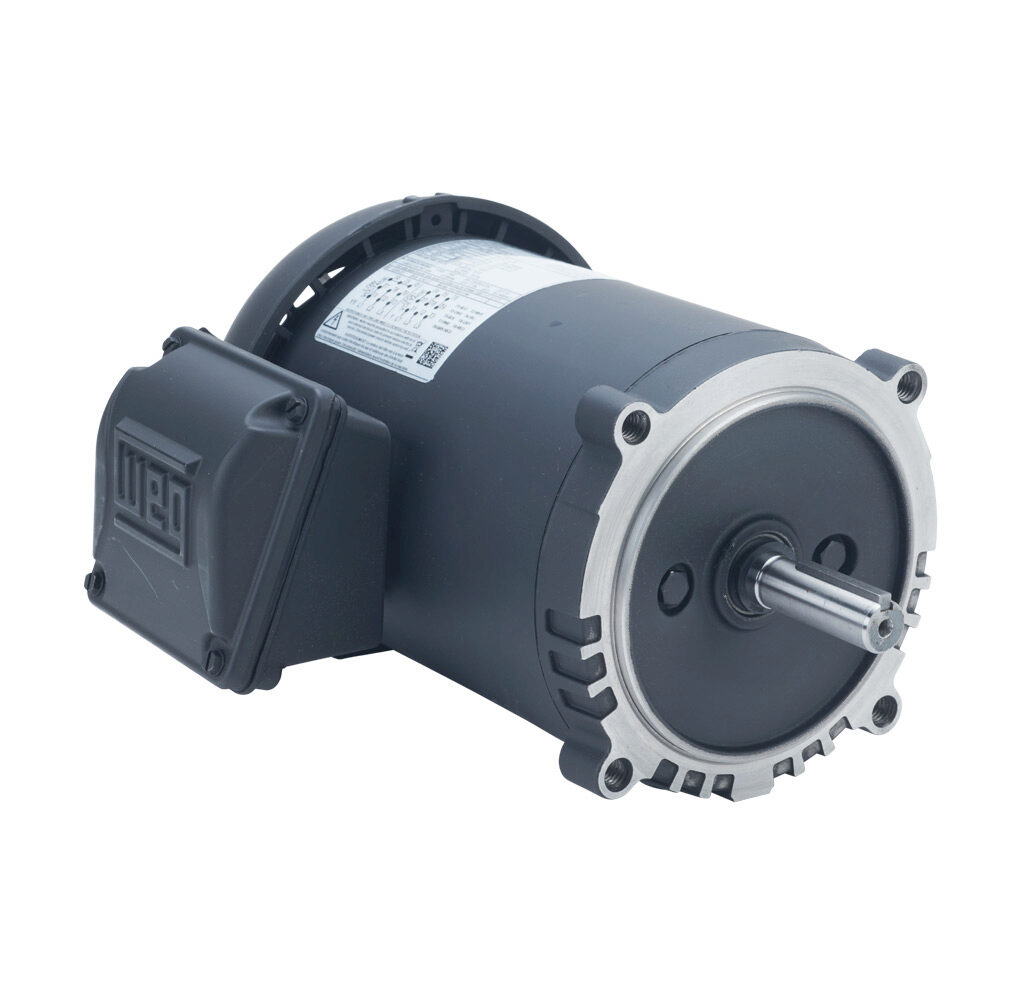

WEG 00136ET3EW56CFL-S 13547043 General Purpose Motor, 1 HP, 2 Poles, W56C Frame, 3 Phase, 230/460//190-220/380-415 V, 60 Hz, IC411-TEFC, Footless
Get it by Monday, Apr 6
€685.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | Not Balanced |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 380% |
| Breakdown Torque | 380% |
| Cold Locked Rotor Time | 18 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Constant Torque Rating | 5:1 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 78.5% |
| Efficiency @ 100% | 78.5% |
| Efficiency @ 50% | 74% |
| Efficiency @ 75% | 77% |
| Efficiency At 1 % | 80% |
| Efficiency At 50 % | 63% |
| Efficiency At 75 % | 75% |
| Efficiency Group | Premium Efficiency |
| Electrically Reversible | Yes |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Industrial Polymer , Polymer |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | W56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 10 sec. |
| Hp | 1 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Integrated Brake | No |
| Ip Rating | IP55 |
| L. R. Amps | 26.4/13.2A |
| L.r. Amperes | 13.2/26.4A |
| Locked Rotor Time (cold) | 18 sec. |
| Locked Rotor Time (hot) | 10 sec. |
| Locked Rotor Torque | 360% |
| Lrc | 8.8X(Code M) |
| Main Terminal Box Hole | 0.881" |
| Main Terminal Box Hole Size | 0.881" |
| Moment Of Inertia | 0.0254 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.0254 lbs.-sq. ft. |
| Motor Application | General Purpose And Inverter Rated |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 56C |
| Motor Speed | 3435 RPM |
| Motor Type | Induction |
| Mounting | F-1 , Footless |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Rpm | 3435 RPM |
| No Load Amps | 0.798/1.6A , 1.6/0.798A |
| No. Of Poles | 2 |
| Noise Level | 65 dBA |
| Number Of Phases | 3 |
| Output | 1 hp |
| Output Rating | 1 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 50% | 0.63 |
| Power Factor 75% | 0.75 |
| Power Factor At 1 % | 78.5 |
| Power Factor At 50 % | 74 |
| Power Factor At 75 % | 77 |
| Power Factor_100% | 0.8 |
| Rated Current | 1.5/3A , 3/1.5A |
| Rated Speed | 3435 RPM |
| Rated Torque | 1.53 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Screw Cap | Carbon Steel |
| Series | S Series |
| Service Factor | 1.15 |
| Shaft Diameter | 5/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Shaft Type | Round With Square Key |
| Slip | 4.58% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Variable Torque Rating | 1000:1 |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC |
| Voltage Rating | 208-230/460V AC |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 10.11 |
| Ship height (cm) | 77.98 |
| Ship length (cm) | 28.21 |
| Ship width (cm) | 85.09 |
| Country of Origin | BR |
Product Variants
| Product | Model | Frequency | Hp | Full Load Amps | Frame | Rpm | Duty Cycle | Synchronous Speed | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

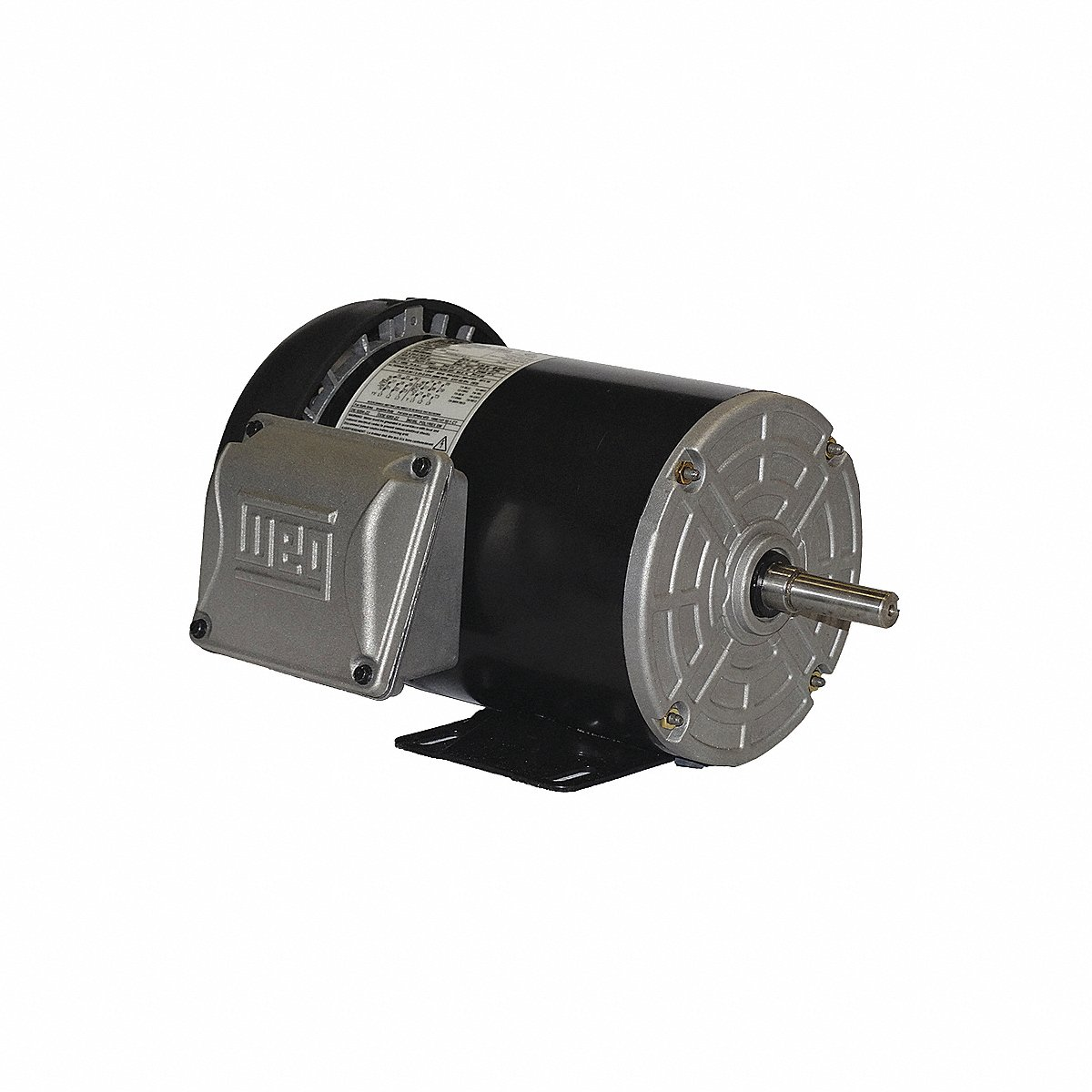

00136ET3EW56-S | 60 Hz | 1 hp | 3/1.5A | 56 | 3400-3600 RPM | S1 | 3600 RPM | 1.6/0.798A | €440.24 | |
 |
.2518ES3E56CFL-S | 50/60 Hz | - | - | 56C | 1700-1800 RPM | S1 | 1800 RPM | 0.776-0.9/0.45A | €322.14 | |
 |

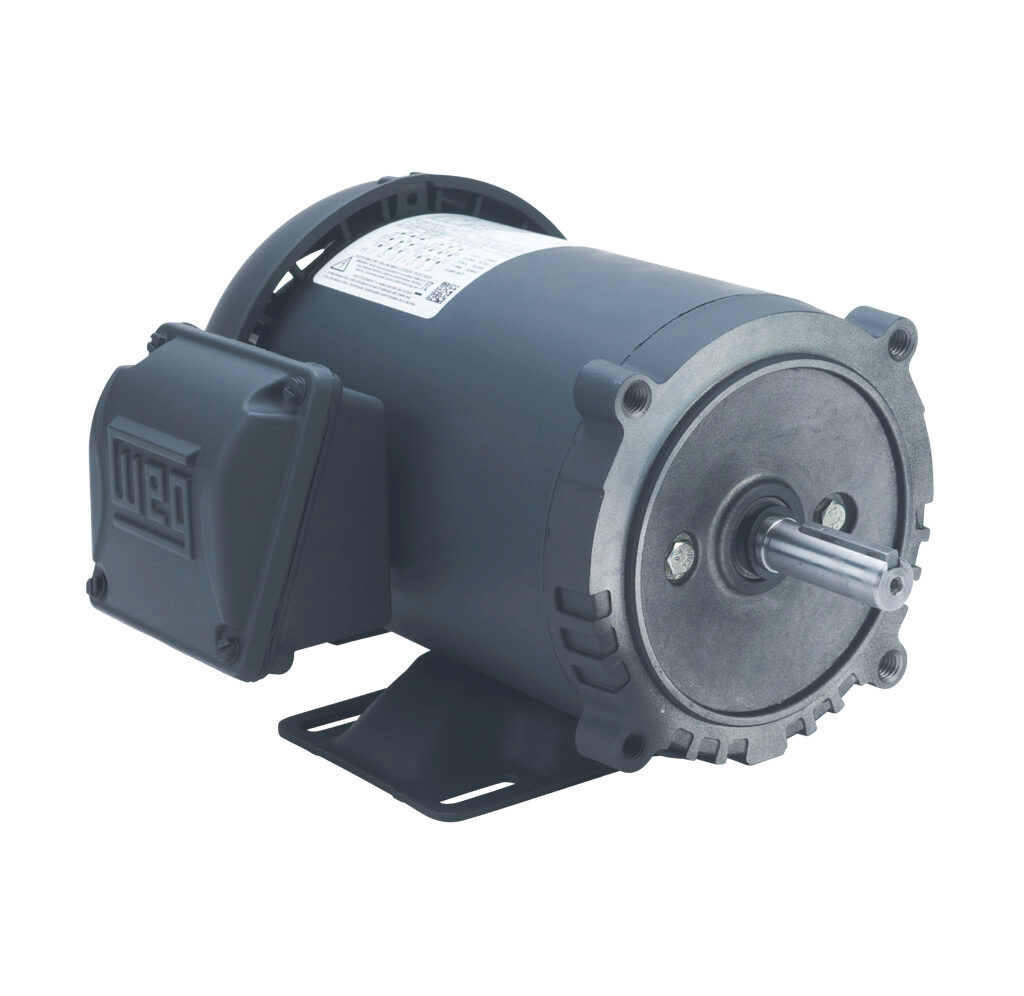

00136ET3EW56C-S | 50/60 Hz | 1 hp | 3/1.5A | 56C | 3400-3600 RPM | Continuous | 3600 RPM | 1.6/0.798A | €471.70 | |
 |
00136ET3VW56C-S | - | - | - | 56C | 3400-3600 RPM | - | - | - | €501.10 | |
 |

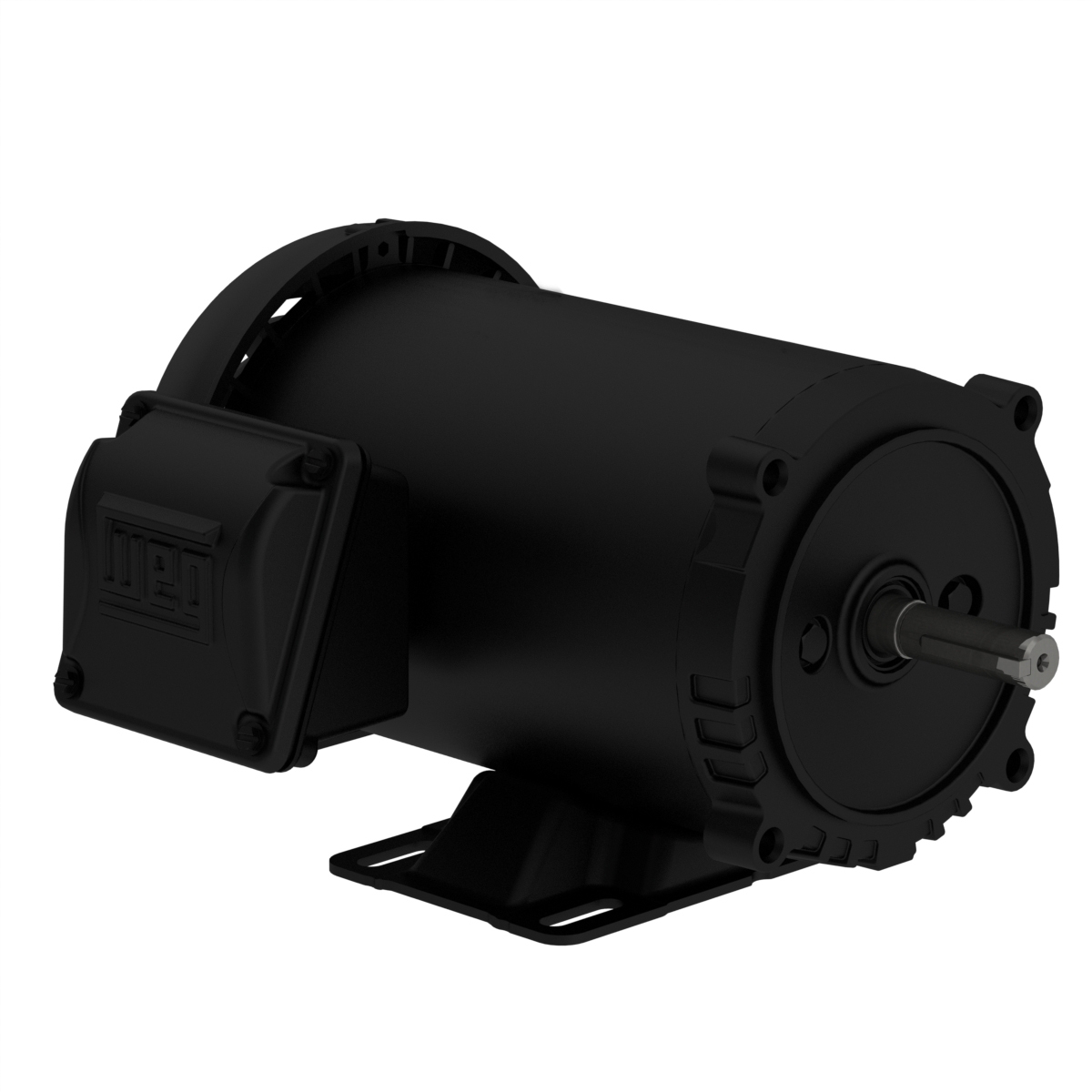

00156ET3V56C-S | 60 Hz | - | - | 56C | 3400-3600 RPM | S1 | 3600 RPM | 1.98/0.988A | €550.01 | |
 |
.5036ES3V56C-S | - | 1/2 hp | - | 56C | 3400-3600 RPM | - | - | - | €249.67 | |
 |
.7536ES3V56C-S | 60 Hz | - | - | 56C | 3400-3600 RPM | S1 | 3600 RPM | 1.27/0.633A | €371.05 |
