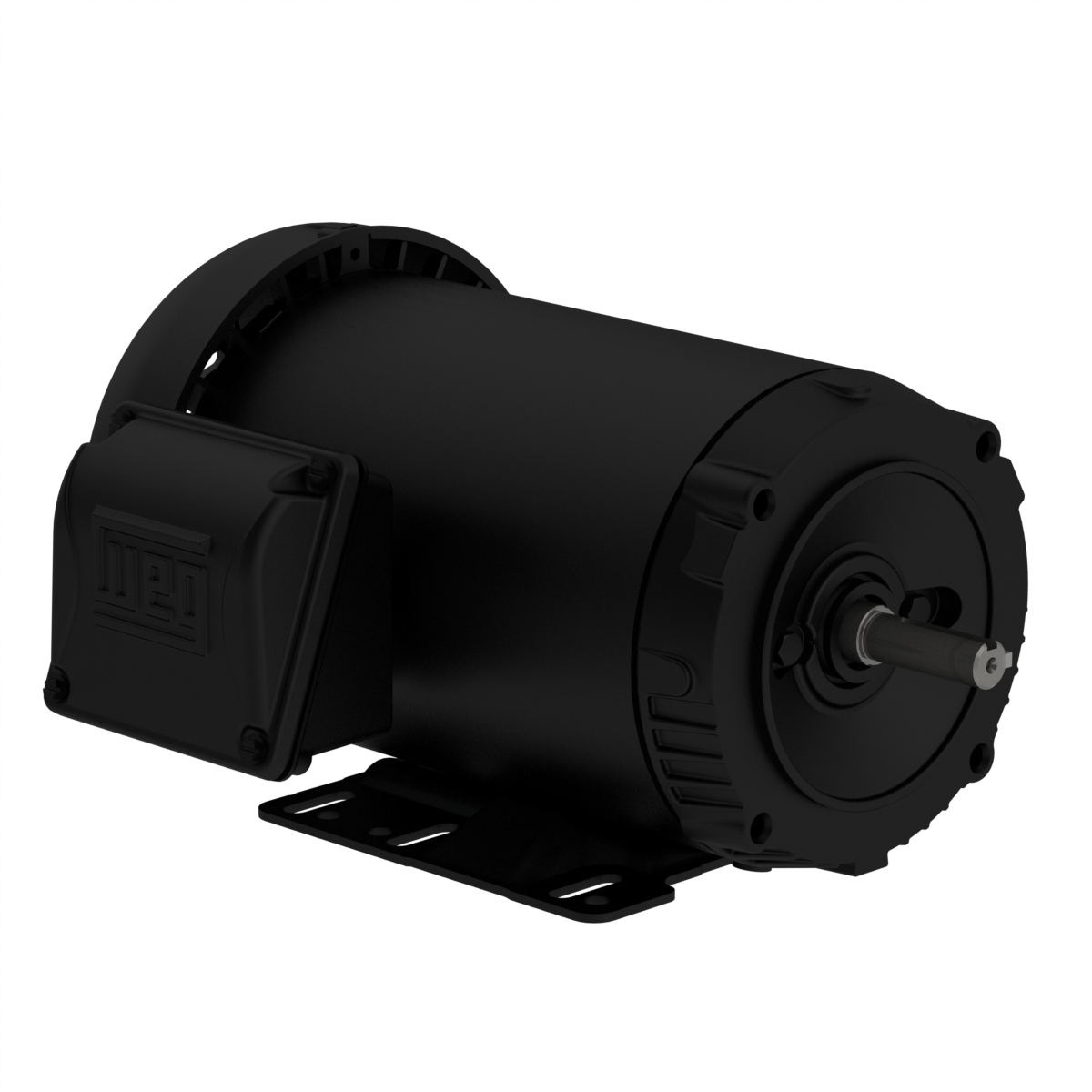

WEG 00236ET3V56C-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BC3HDQ

WEG 00236ET3V56C-S 14799272 General Purpose Motor, 2 HP, 2 Poles, 56HC Frame, 3 Phase, 200/400 V, 60 Hz, IC411-TEFC, Foot Mounted

Item: BC3HDQModel: 00236ET3V56C-SCross Ref: 14799272
Check Availability
In Stock
HP
Voltage

Get it by Tuesday, Apr 7

€616.83 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 300%
Breakdown Torque 300%
Cable Press Material Sem
Cold Locked Rotor Time 23 sec.
Connection Cables Quantity 9
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency @ 100% 85.5%
Efficiency @ 50% 82.5%
Efficiency @ 75% 85.5%
Efficiency At 1 % 89%
Efficiency At 50 % 73%
Efficiency At 75 % 83%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange C
Flange Type C
Frame 56HC
Frame Material Rolled Steel
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 13 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 56.2/28.1A
L.r. Amperes 28.1/56.2A
Locked Rotor Time (cold) 23 sec.
Locked Rotor Time (hot) 13 sec.
Locked Rotor Torque 250%
Lrc 9.9X(Code L)
Main Terminal Box Hole 0.881"
Main Terminal Box Hole Size 0.881"
Moment Of Inertia 0.1279 lbs.-sq. ft.
Moment Of Inertia (j) 0.1279 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 3520 RPM
Mounting F-1 , Foot Mounted
No Load Amps 1.22/2.44A , 2.44/1.22A
No. Of Poles 2
Noise Level 68 dBA
Output 2 hp
Output Rating 2 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor 50% 0.73
Power Factor 75% 0.83
Power Factor At 1 % 85.5
Power Factor At 50 % 82.5
Power Factor At 75 % 85.5
Power Factor_100% 0.89
Rated Current 2.84/5.68A , 5.68/2.84A
Rated Speed 3520 RPM
Rated Torque 2.98 lbs.-ft.
Rated Voltage 200/400V , 200/400V AC
Resilient Base Without
Rotation CW/CCW
Rpm 3400-3600 RPM
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.22%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 200/400V AC

Shipping Info:

Ship weight (kg) 19.8
Ship height (cm)24.38
Ship length (cm)39.88
Ship width (cm)30.99
Country of OriginUS

Product Variants

ProductModelFrequencyHpFull Load AmpsFrameRpmDuty CycleSynchronous SpeedNo Load AmpsPrice
WEG 00136ET3EW56-S Electric Motor, 1Hp, 60 HZHz, 3435 Rpm | BB7JYC 00136ET3EW56-S60 Hz1 hp3/1.5A563400-3600 RPMS13600 RPM1.6/0.798A€440.24
WEG 00136ET3EW56CFL-S Electric Motor, 1Hp, 60 HzHz, 3600 Rpm | BC2LBY 00136ET3EW56CFL-S60 Hz1 hp-W56C3400-3600 RPMS13600 RPM1.6/0.798A€685.80
WEG .2518ES3E56CFL-S Electric Motor, 0.25Hp, 60Hz, 1800 Rpm | BC3DDR .2518ES3E56CFL-S50/60 Hz--56C1700-1800 RPMS11800 RPM0.776-0.9/0.45A€322.14
WEG 00136ET3EW56C-S Electric Motor, 1Hp, 60Hz, 3600 Rpm | BC3ENJ 00136ET3EW56C-S50/60 Hz1 hp3/1.5A56C3400-3600 RPMContinuous3600 RPM1.6/0.798A€471.70
WEG 00136ET3VW56C-S Electric Motor, 1Hp, 60Hz, 3600 Rpm | BC3ENK 00136ET3VW56C-S---56C3400-3600 RPM---€501.10
WEG 00156ET3V56C-S Electric Motor, 1.5Hp, 60Hz, 3600 Rpm | BC3ENM 00156ET3V56C-S60 Hz--56C3400-3600 RPMS13600 RPM1.98/0.988A€550.01
WEG .5036ES3V56C-S Electric Motor, 0.5Hp, 60Hz, 3600 Rpm | BC3FFR .5036ES3V56C-S-1/2 hp-56C3400-3600 RPM---€249.67
