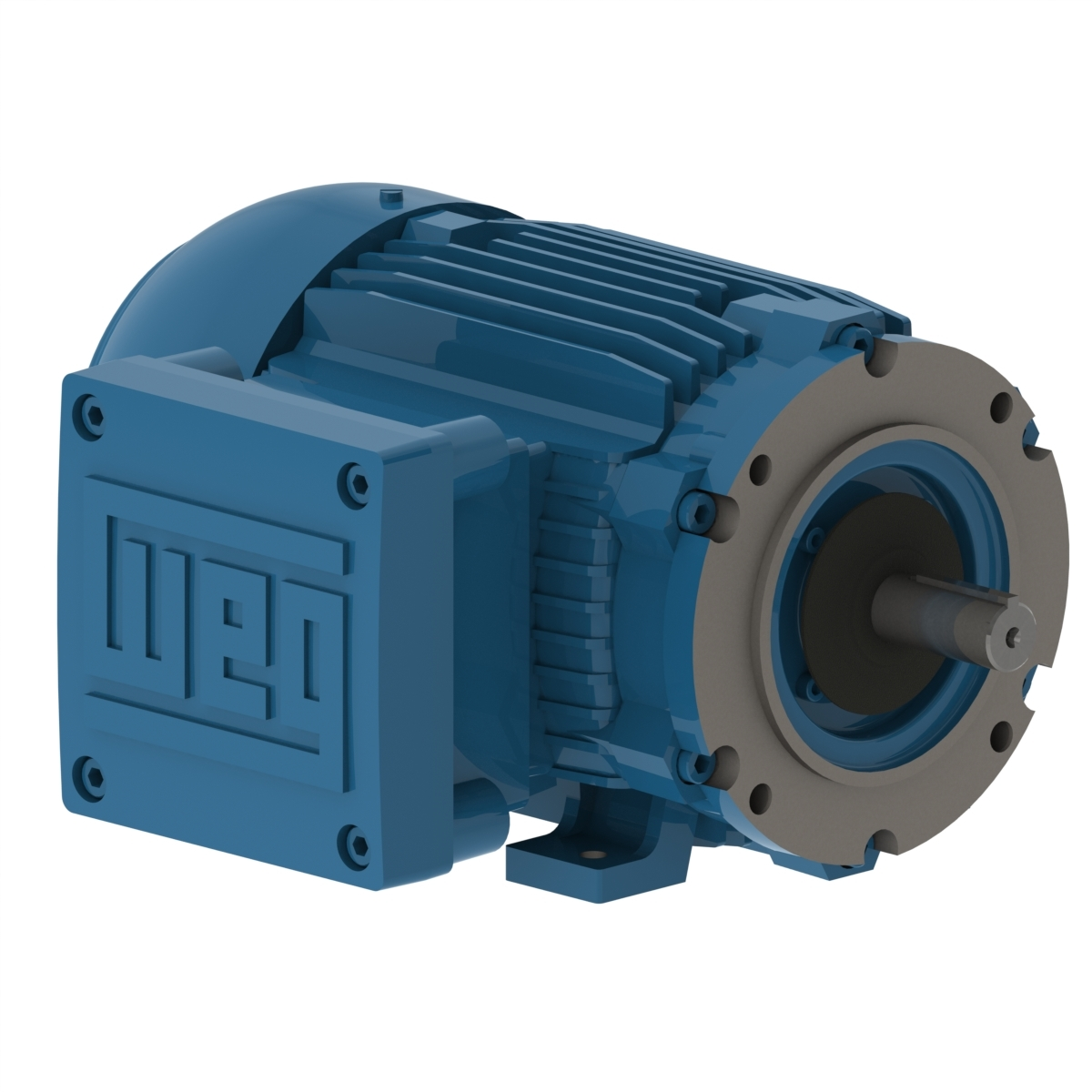

WEG 00118XT3E143TC Electric Motor, 1Hp, 60Hz, 1765 Rpm | BB4RAB

WEG 00118XT3E143TC 14343086 Explosion Proof Motor, 1 HP, 1800 RPM, 208/230/460 V, 3 Phase, XPFC, 143TC Frame, Footed

Item: BB4RABModel: 00118XT3E143TCCross Ref: 14343086
Check Availability
In Stock

Get it by Tuesday, Feb 17

€1,257.50 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Hazardous Location Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 360%
Cold Locked Rotor Time 32 sec.
Connection Cables Quantity 9
Cooling IC411
Design B
Drip Cover Without
Duty Cycle S1
Efficiency 50%
Efficiency At 1 % 75%
Efficiency At 50 % 57%
Efficiency At 75 % 68%
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange C
Frame 143/5TC
Frame Material Cast Iron
Frequency 50/60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 18 sec.
Hz 60 Hz
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 25.3/12.6A
Locked Rotor Torque 280%
Lrc 8.6X(Code M)
Main Terminal Box Hole Size 3/4"
Main Terminal Box Hole Type NPT
Moment Of Inertia 0.0975 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Shaft Rotation Clockwise/Counter Clockwise
Mounting Type F-1
Nameplate Rpm 1755 RPM
No Load Amps 1.88/0.94A
No. Of Poles 4
Noise Level 51 dBA
Output 1 hp
Output Hp 1 hp
Output Rating 0.75 kW
Overload Protector Without Overload Protector
Painting RAL 5009 202P (ISO 12944 - C4)
Phase 3
Power Factor At 1 % 85.5
Power Factor At 50 % 80
Power Factor At 75 % 82.5
Product Datasheet weg-00118xt3e143tc.pdf
Rated Current 2.94/1.47A
Rated Torque 2.99 lbs.-ft.
Rated Voltage 230/460V AC
Rotation CW/CCW
Rpm 1700-1800 RPM
Service Factor 1.15
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.5%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460/380V
Winding Thermal Protection Thermostat - 2 wires 1 per phase 155°C

Shipping Info:

Ship weight (kg) 31.5
Ship height (cm)27.94
Ship length (cm)32.41
Ship width (cm)35.56
Country of OriginBR

Documentation:

Datasheet

Product Variants

ProductModelVoltageFrameNameplate RpmHpMotor ApplicationMounting TypeFrame MaterialOutput RatingPrice
WEG 00518XT3E184TC Electric Motor, 5Hp, 60Hz, 1755 Rpm | BA9JHN 00518XT3E184TC230/460/380V182/4TC1750 RPM5 hpHazardous ApplicationF-1Cast Iron3.7 kW€2,274.81
WEG 02018XT3E256TC Electric Motor, 20Hp, 60Hz, 1770 Rpm | BB2AJM 02018XT3E256TC230/460/380V----Foot MountedCast Iron20 hp€3,850.71
WEG 01018XT3E215TC Electric Motor, 10Hp, 60Hz, 1765 Rpm | BB2DLL 01018XT3E215TC208-230/460/380VL215TC---Foot MountedCast Iron10 hp€2,520.13
WEG 00736XT3E213TC Electric Motor, 7.5Hp, 60Hz, 3540 Rpm | BB2MPL 00736XT3E213TC230/460V213/5TC3535 RPM7 1/2 hp-F-1Cast Iron5.5 kW€1,990.68
WEG 00218XT3E145TC Electric Motor, 2Hp, 60Hz, 1750 Rpm | BB2PRK 00218XT3E145TC230/460/380V143/5TC1750 RPM--Foot MountedCast Iron1.5 kW€1,369.66
WEG 00718XT3E213TC Electric Motor, 7.5Hp, 60Hz, 1765 Rpm | BB2UCG 00718XT3E213TC230/460/380V213/5TC1765 RPM--F-1Cast Iron5.5 kW€2,404.52
WEG 01518XT3E254TC Electric Motor, 15Hp, 60Hz, 1770 Rpm | BB2XQF 01518XT3E254TC230/460/380V254TC1770 RPM--Foot MountedCast Iron11 kW€3,440.34
