WEG 02018XT3E256TC 14406917 Explosion Proof Motor, 20 HP, 1800 RPM, 208/230/460 V, 3 Phase, XPFC, 256TC Frame, Footed
Get it by Tuesday, Mar 31
€3,850.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Breakdown Torque | 300% |
| Cable Press Material | Sem |
| Connection Cables Quantity | 12 |
| Cooling | IC411 |
| Drain | Sinterized, Exd |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency @ 100% | 93% |
| Efficiency @ 50% | 91.7% |
| Efficiency @ 75% | 92.4% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | C |
| Frame Material | Cast Iron |
| Frame Size | 256TC |
| Frequency | 60 Hz |
| Full Load Amps | 25/50-55.3A |
| Grounding Lugs | Single |
| Horsepower | 20 hp |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| L.r. Amperes | 188/375A |
| Locked Rotor Time (cold) | 36 sec. |
| Locked Rotor Time (hot) | 20 sec. |
| Locked Rotor Torque | 300% |
| Main Terminal Box Hole | 1 1/2" |
| Main Terminal Box Type | NPT |
| Moment Of Inertia (j) | 2.89 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting | F-1 |
| Mounting Type | Foot Mounted |
| No Load Amps | 11.8/23.6A |
| No. Of Poles | 4 |
| Noise | 69 dBA |
| Noise Level | 69 dBA |
| Output Rating | 20 hp |
| Overload Protection | No |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 50% | 0.63 |
| Power Factor 75% | 0.75 |
| Power Factor_100% | 0.81 |
| Product Datasheet | weg-02018xt3e256tc.pdf |
| Rated Current | 25/50A |
| Rated Speed | 1770 RPM |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW/CCW |
| Rpm | 1770 RPM |
| Screw Cap | Stainless Steel |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 1.67% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 58.5 lbs.-ft. |
| Voltage | 230/460/380V |
Shipping Info:
| Ship weight (kg) | 175.5 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 45.72 |
| Ship width (cm) | 35.56 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Frame | Nameplate Rpm | Hp | Motor Application | Mounting Type | Frame Material | Output Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00518XT3E184TC | 230/460/380V | 182/4TC | 1750 RPM | 5 hp | Hazardous Application | F-1 | Cast Iron | 3.7 kW | €2,274.81 | |
 |
01018XT3E215TC | 208-230/460/380V | L215TC | - | - | - | Foot Mounted | Cast Iron | 10 hp | €2,520.13 | |
 |
00736XT3E213TC | 230/460V | 213/5TC | 3535 RPM | 7 1/2 hp | - | F-1 | Cast Iron | 5.5 kW | €1,990.68 | |
 |
00218XT3E145TC | 230/460/380V | 143/5TC | 1750 RPM | - | - | Foot Mounted | Cast Iron | 1.5 kW | €1,369.66 | |
 |
00718XT3E213TC | 230/460/380V | 213/5TC | 1765 RPM | - | - | F-1 | Cast Iron | 5.5 kW | €2,404.52 | |
|
01518XT3E254TC | 230/460/380V | 254TC | 1770 RPM | - | - | Foot Mounted | Cast Iron | 11 kW | €3,440.34 | |
 |

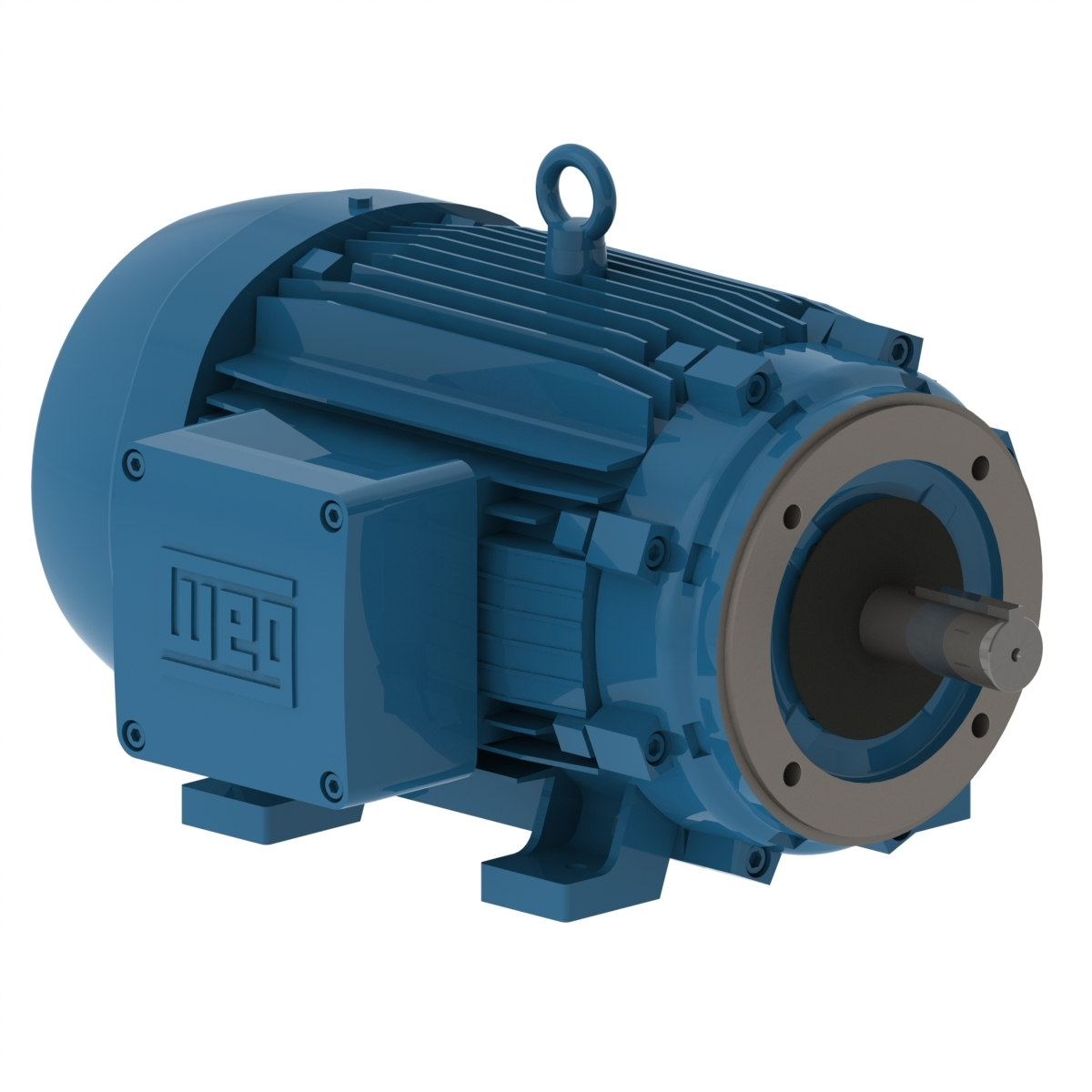

03018XT3E286TC | 230/460/380V | 286TC | 1770 RPM | - | - | F-1 | Cast Iron | 22 kW | €5,352.11 |
