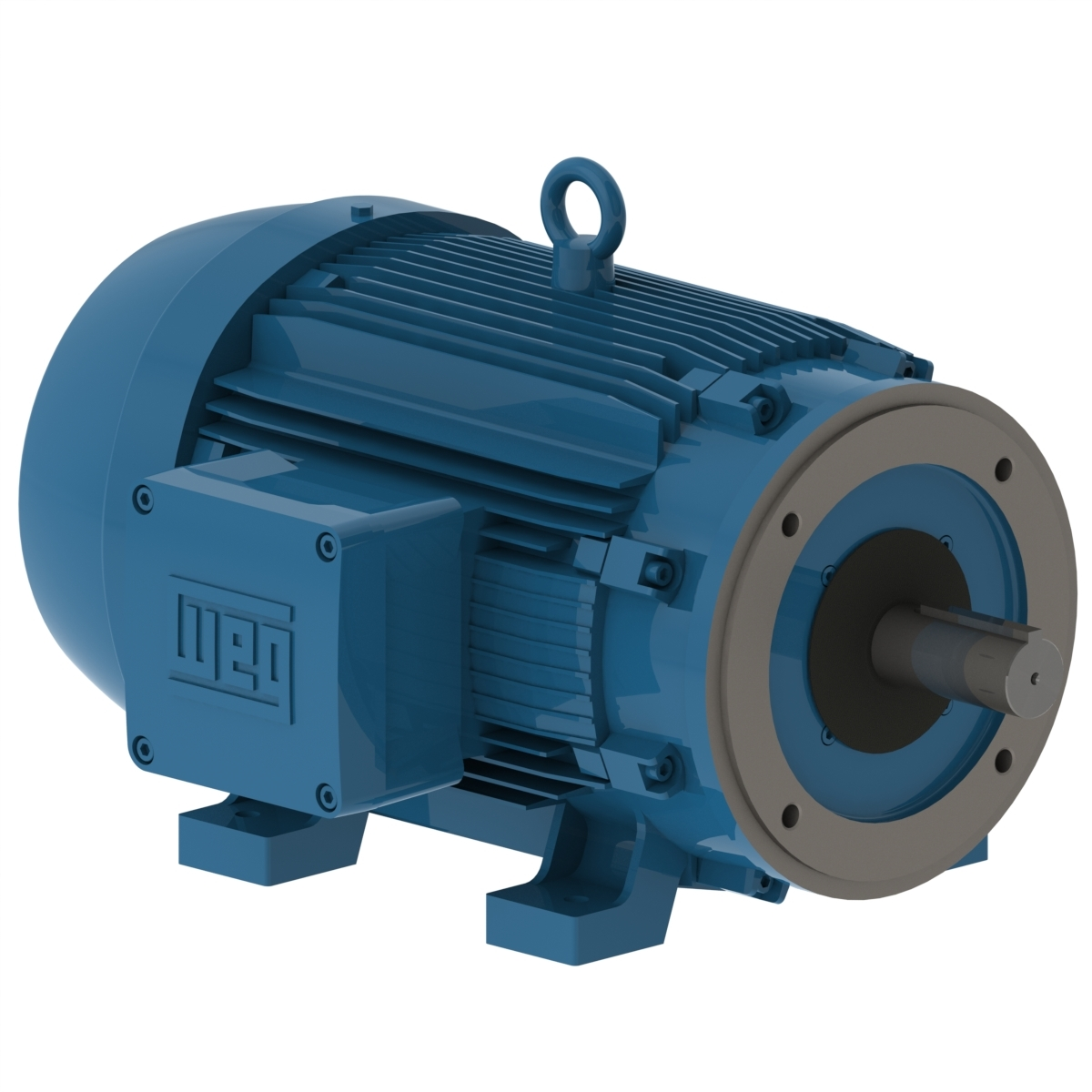

WEG 05018XT3E326TC 14407174 Explosion Proof Motor, 50 HP, 4 Poles, 326TC Frame, 3 Phase, 230/460//380V, 60//50 Hz, Foot-mounted
1800 rpm
50 hp
Get it by Wednesday, Jul 1
€8,115.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 121/60.7A , 60.7/121A |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 280% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 28 sec. |
| Connection Cables Quantity | 12 |
| Cooling | IC411 |
| Design | B |
| Drain | Sinterized, EXD |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency 50% | 65% , 93.6% |
| Efficiency 75% | 94.5% |
| Efficiency @ 1 % | 81% |
| Efficiency @ 100% | 94.5% |
| Efficiency @ 75 % | 76% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | C |
| Frame | 326TC |
| Frame Material | Cast Iron |
| Frame Size | 326TC |
| Frequency | 50/60 Hz , 60 Hz |
| Full Load Amps | 60.6/121-134A |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 16 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 443/886A , 470A , 886/443A |
| Locked Rotor Time (cold) | 28 sec. |
| Locked Rotor Time(hot) | 16 sec. |
| Locked Rotor Torque | 260% |
| Lrc | 7.3X(Code H) |
| Main Terminal Box Hole | 2" |
| Main Terminal Box Hole Size | 2" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Moment Of Inertia | 9.16 lbs.-sq. ft. |
| Moment Of Inertia (j) | 9.16 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | CW, CCW |
| Mounting | F-1 |
| Mounting Type | F-1 |
| Nameplate Speed | 1775 RPM |
| No Load Amps | 25/50A , 50/25A |
| No. Of Poles | 4 |
| Noise | 71 dBA |
| Noise Level | 71 dBA |
| Output | 50 hp |
| Output Hp | 50 hp |
| Output Rating | 37 kW |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL 5009 202P (ISO 12944 - C4) |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 100% | 0.81 |
| Power Factor 50% | 0.65 |
| Power Factor 75% | 0.76 |
| Power Factor @ 1 % | 94.5 |
| Power Factor @ 50 % | 93.6 |
| Power Factor @ 75 % | 94.5 |
| Product Datasheet | weg-05018xt3e326tc.pdf |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Rotation | CW, CCW |
| Screw Cap | Stainless Steel |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.39% |
| Speed | 1700-1800 RPM , 1775 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 146 lbs.-ft. , 148 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 230/460/380V , 230/460V AC , 415V |
| Winding Thermal Protection | Thermostat - 2 wires 1 per phase 155°C |
Shipping Info:
| Ship weight (kg) | 333 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 45.72 |
| Ship width (cm) | 35.56 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Frame | Hp | Motor Application | Mounting Type | Frame Material | Output Rating | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00518XT3E184TC | 230/460V AC | 182/4TC | 5 hp | Hazardous Application | F-1 | Cast Iron | 3.7 kW | 4 | €2,274.81 | |
 |
02018XT3E256TC | 230/460/380V | - | 20 hp | - | Foot Mounted | Cast Iron | 20 hp | 4 | €3,850.71 | |
 |
01018XT3E215TC | 208-230/460/380V | L215TC | 10 hp | - | Foot Mounted | Cast Iron | 10 hp | 4 | €2,520.13 | |
 |
00736XT3E213TC | 230/460V | 213/5TC | 7 1/2 hp | - | F-1 | Cast Iron | 5.5 kW | 2 | €1,990.68 | |
 |
00218XT3E145TC | 230/460V AC | 143/5TC | - | - | Foot Mounted | Cast Iron | 1.5 kW | 4 | €1,369.66 | |
 |
00718XT3E213TC | 230/460V AC | 213/5TC | - | - | F-1 | Cast Iron | 5.5 kW | 4 | €2,404.52 | |
|
01518XT3E254TC | 230/460V AC | 254TC | 15 hp | - | Foot Mounted | Cast Iron | 11 kW | 4 | €3,440.34 |
