WEG 00212XT3E184TC 14281643 Explosion Proof Motor, 2 HP, 1200 RPM, 208/230/460 V, 3 Phase, XPFC, 184TC Frame, Footed, Explosion Proof
Get it by Tuesday, Feb 17
€1,578.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 330% |
| Cold Locked Rotor Time | 82 sec. |
| Connection Cables Quantity | 9 |
| Cooling | IC411 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency At 1 % | 68% |
| Efficiency At 50 % | 47% |
| Efficiency At 75 % | 58% |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Frame | 182/4TC |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 46 sec. |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 46.9/23.5A |
| Locked Rotor Torque | 300% |
| Lrc | 7.5XA |
| Main Terminal Box Hole Size | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 0.5323 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Foot Mounted |
| Nameplate Rpm | 1165 RPM |
| No Load Amps | 4/2A |
| No. Of Poles | 6 |
| Noise Level | 52 dBA |
| Output | 2 hp |
| Output Hp | 2 hp |
| Output Rating | 1.5 kW |
| Overload Protector | Without Overload Protector |
| Painting | RAL 5009 202P (ISO 12944 - C4) |
| Phase | 3 |
| Power Factor At 1 % | 88.5 |
| Power Factor At 50 % | 84.5 |
| Power Factor At 75 % | 86.5 |
| Product Datasheet | weg-00212xt3e184tc.pdf |
| Rated Current | 6.26/3.13A |
| Rated Torque | 9.02 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Rotation | CW/CCW |
| Rpm | 1165 RPM |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.92% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/380V |
| Winding Thermal Protection | Thermostat - 2 wires 1 per phase 155°C |
Shipping Info:
| Ship weight (kg) | 62.1 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 45.72 |
| Ship width (cm) | 35.56 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Frame | Nameplate Rpm | Hp | Motor Application | Mounting Type | Frame Material | Output Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
00518XT3E184TC | 230/460/380V | 182/4TC | 1750 RPM | 5 hp | Hazardous Application | F-1 | Cast Iron | 3.7 kW | €2,274.81 | |
 |
02018XT3E256TC | 230/460/380V | - | - | - | - | Foot Mounted | Cast Iron | 20 hp | €3,850.71 | |
 |
01018XT3E215TC | 208-230/460/380V | L215TC | - | - | - | Foot Mounted | Cast Iron | 10 hp | €2,520.13 | |
 |
00736XT3E213TC | 230/460V | 213/5TC | 3535 RPM | 7 1/2 hp | - | F-1 | Cast Iron | 5.5 kW | €1,990.68 | |
 |
00218XT3E145TC | 230/460/380V | 143/5TC | 1750 RPM | - | - | Foot Mounted | Cast Iron | 1.5 kW | €1,369.66 | |
 |

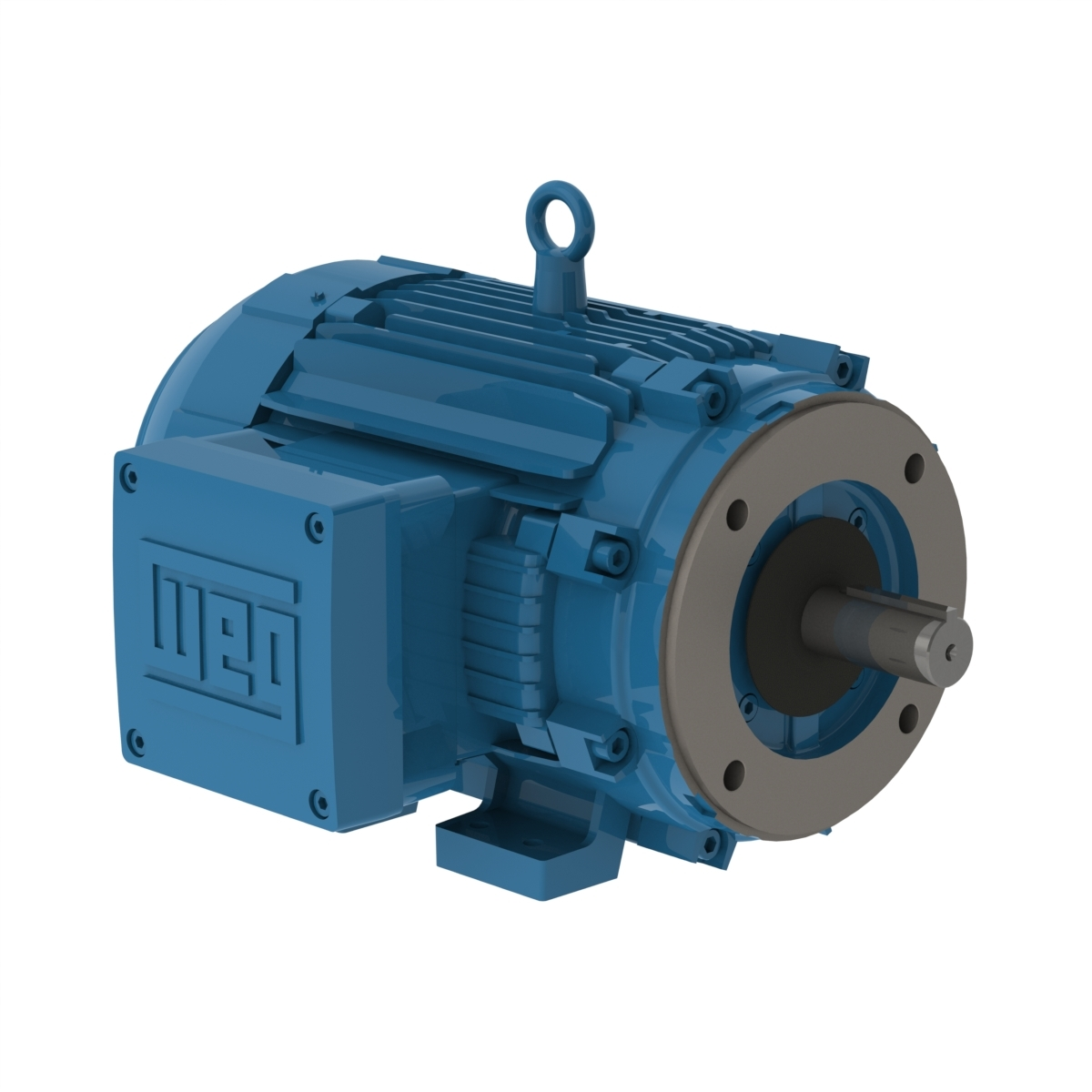

00718XT3E213TC | 230/460/380V | 213/5TC | 1765 RPM | - | - | F-1 | Cast Iron | 5.5 kW | €2,404.52 | |
|
01518XT3E254TC | 230/460/380V | 254TC | 1770 RPM | - | - | Foot Mounted | Cast Iron | 11 kW | €3,440.34 |
