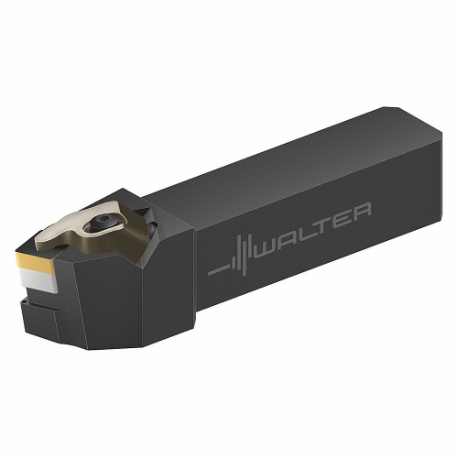

WALTER TOOLS DSBNL2525X12-P 6824250 Indexable Turning and Profiling Tool Holder, DSBN Toolholder, Square
Item: CU9KBZModel: DSBNL2525X12-PCross Ref: 56RC40 / 6824250
7 In Stock
1.713"
SN .. 1204 ..
5.315"
0.866"
Ships within 2 days via
5.00% off
€544.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tool Holder |
| Approach Angle | 75° |
| Coolant Fed | Coolant Through |
| Coolant Pressure | 2175.566 psi |
| Cutting Direction | Left Hand |
| Functional Width | 0.866" |
| Hand | L |
| Inclination Angle | -6° |
| Insert Clearance Angle | 0° |
| Insert Cutting Edge Length | 12 mm |
| Insert Holding Type | Top And Hole Clamping |
| Insert Seat Size | 12 |
| Insert Shape | Square |
| Lead Angle | 75° |
| Length | 5.315" |
| Orthogonal Rake Angle | -6° |
| Overall Length | 135 mm |
| Projection Length | 1.713" |
| Shank Height | 25 mm |
| Shank Width | 25 mm |
| Toolholder Style | DSBN |
| Width | 0.276" |
Shipping Info:
| Ship weight (kg) | 0.7 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 13.5 |
| Ship width (cm) | 2.54 |
| Country of Origin | SE |
Product Variants
| Product | Model | Shank Height | Shank Width | Projection Length | Insert Seat Size | Functional Width | Insert Cutting Edge Length | Insert Holding Type | Cutting Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CRDCN3225P09-A | 32 mm | 25 mm | 1.22" | 9 | 0.677" | 9 mm | Top Clamp | Neutral | €475.31 | |
|
CRDCN3225P12-A | 32 mm | 25 mm | 1.575" | 12 | 0.74" | 12 mm | Top Clamp | Neutral | €475.31 | |
 |
CRDNN2525M12-ID | 25 mm | 25 mm | 1.26" | 12 | 0.74" | 12 mm | Top Clamp | Neutral | €372.44 | |
|
CRDNN3225P12-ID | 32 mm | 25 mm | 1.26" | 12 | 0.74" | 12 mm | Top Clamp | Neutral | €372.44 | |
 |
CRSNL3232P15-ID | 32 mm | 32 mm | 1.181" | 15 | 1.575" | 12 mm | Top Clamp | Left Hand | €460.05 | |
 |
CRSNL2525X12-P | 25 mm | 25 mm | 1.516" | 12 | 1.26" | 12 mm | Top Clamp | Left Hand | €573.15 | |
|
CRSNL2525M12-ID | 25 mm | 25 mm | 1.102" | 12 | 1.26" | 12 mm | Top Clamp | Left Hand | €372.44 |
