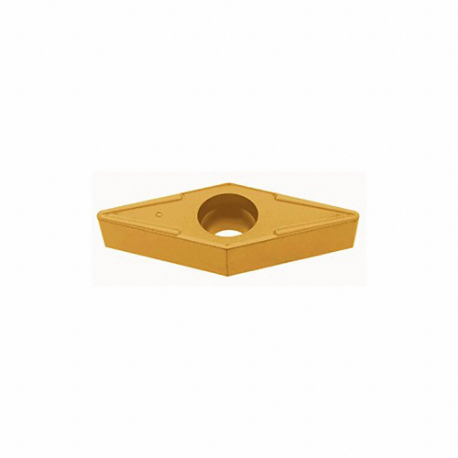

TUNGALOY 6774064 Turning Insert, Neutral/16 Inch Thick, 0.0310 Inch Corner Radius
Item: CU7DHUModel: 6774064Cross Ref: 60WH74
7 In Stock
Ships within 2 days via
10.00% off
€38.01 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | VBMT160408-24 |
| Chip-breaker | Yes |
| Chip-breaker Code | 24 |
| Chip-breaker Style | Yes |
| Clearance Angle | 5° |
| Coating Process | CVD |
| Corner Radius | 0.031" |
| Cutting Depth | 0.5 mm to 3 mm |
| Cutting Direction | Neutral |
| Cutting Edge | Rounded |
| Cutting Edge Length | 0.6563" |
| Cutting Material Coverage | Multi Mini Tip |
| Finish - Machining | Ticn+Al2O3+Tin |
| General Shape | Rhombic |
| Hole Angle | 40° to 60° |
| Hole Type | 40° To 60° Countersink Through Hole |
| Included Angle | 35° |
| Inscribed Circle | 3/8" |
| Insert Code | VBMT332 |
| Insert Holding Angle | 40° to 60.0° |
| Insert Holding Type | 40° To 60° Countersink Through Hole |
| Insert Style | VBMT |
| Iso Number | VBMT160408 |
| Manufacturer Grade | Grade T9215 |
| Material | Carbide |
| Material - Machining | Carbide |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, P |
| Rake | 0° |
| Shape | Rhombic |
| System Of Measurement | Metric |
| Thickness | 3/16" |
| Through Hole Inside Dia. | 4.4 mm |
| Width | 4.76 mm |
| Wiper Insert | Yes |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Inscribed Circle | Thickness | Corner Radius | Insert Style | Chip-breaker Code | Cutting Direction | Insert Code | Number Of Cutting Edges | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

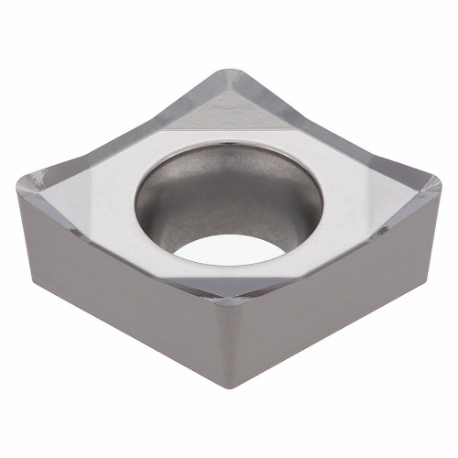

6843406 | 1/4" | 3/32" | 1/64" | CCGT | AL | Neutral | CCGT21.51 | 2 | €24.66 | |
 |

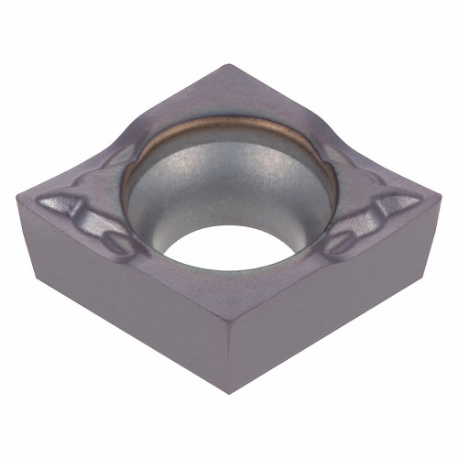

6837456 | 0.172" | 0.078" | 0.008" | CCGT | JS | Neutral | CCGT1.5.5 | 2 | €37.12 | |
 |
6801368 | 3/8" | 5/32" | 1/32" | CCGW | Yes | Neutral | CCGW32.52 | 2 | €216.02 | |
 |

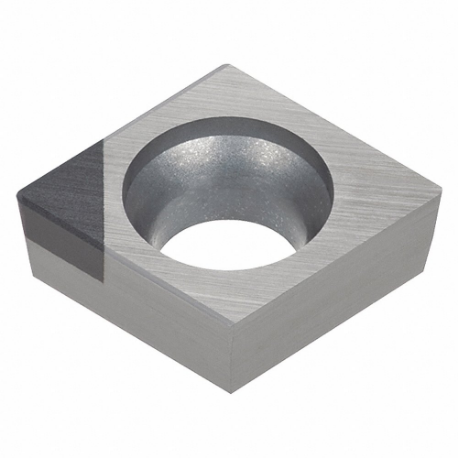

6888191 | 11/64" | 5/64" | 0.008" | CCGW | Yes | Neutral | CCGW1.5.5 | 1 | €92.01 | |
 |

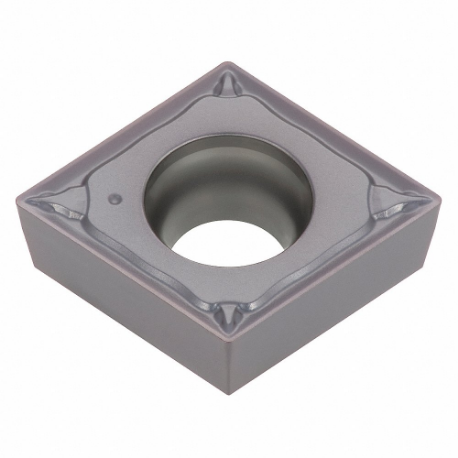

6856761 | 1/4" | 0.094" | 0.016" | CCMT | PS | Neutral | CCMT21.51 | 2 | €15.85 | |
|
6856763 | 3/8" | 5/32" | 0.008" | CCMT | PS | Neutral | CCMT32.5.5 | 2 | €20.32 | |
 |

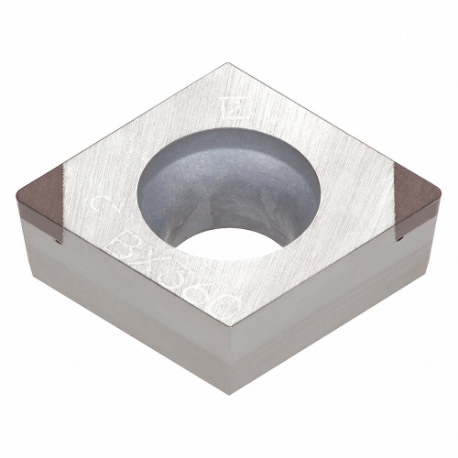

6805037 | 3/8" | 5/32" | 1/32" | CCMW | Yes | Neutral | CCMW32.52 | 2 | €160.39 |
