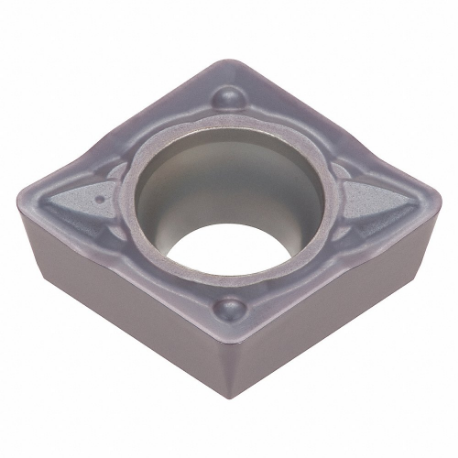

TUNGALOY 6864987 Diamond Turning Insert, Neutral, 3/32 Inch Thick, 1/64 Inch Corner Radius
Item: CU7DDVModel: 6864987Cross Ref: 38UC99
7 In Stock
Ships within 2 days via
10.00% off
€15.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | CPMT 21.51 PSS AH725 |
| Chip-breaker | Yes |
| Chip-breaker Code | PSS |
| Clearance Angle | 11° |
| Corner Radius | 1/64" |
| Cutting Application | Finishing To Light Cutting |
| Cutting Direction | Neutral |
| Cutting Edge Length | 0.256" |
| Depth Of Cut | 0.0787" |
| Finish | Titanium Aluminum Nitride Coat |
| Finish - Machining | TiAlN |
| Included Angle | 80° |
| Inscribed Circle | 1/4" |
| Insert Code | CPMT21.51 |
| Insert Holding Angle | 40° to 60.0° |
| Insert Holding Type | 40° To 60° Countersink Hole |
| Insert Style | CPMT |
| Manufacturer Grade | Grade AH725 |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Nickel, Titanium |
| Primary Material Application Iso Code | S |
| Rake | Positive |
| Secondary Material Application | Cast Iron, Stainless Steel, Steel |
| Secondary Material Application Iso Code | K, M, P |
| Shape | Rhombic |
| System Of Measurement | Imperial |
| Thickness | 3/32" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Inscribed Circle | Thickness | Corner Radius | Insert Style | Chip-breaker Code | Cutting Direction | Insert Code | Number Of Cutting Edges | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6843406 | 1/4" | 3/32" | 1/64" | CCGT | AL | Neutral | CCGT21.51 | 2 | €24.66 | |
 |
6837456 | 0.172" | 0.078" | 0.008" | CCGT | JS | Neutral | CCGT1.5.5 | 2 | €37.12 | |
 |
6801368 | 3/8" | 5/32" | 1/32" | CCGW | Yes | Neutral | CCGW32.52 | 2 | €216.02 | |
 |
6888191 | 11/64" | 5/64" | 0.008" | CCGW | Yes | Neutral | CCGW1.5.5 | 1 | €92.01 | |
 |
6856761 | 1/4" | 0.094" | 0.016" | CCMT | PS | Neutral | CCMT21.51 | 2 | €15.85 | |
|
6856763 | 3/8" | 5/32" | 0.008" | CCMT | PS | Neutral | CCMT32.5.5 | 2 | €20.32 | |
 |
6805037 | 3/8" | 5/32" | 1/32" | CCMW | Yes | Neutral | CCMW32.52 | 2 | €160.39 |
