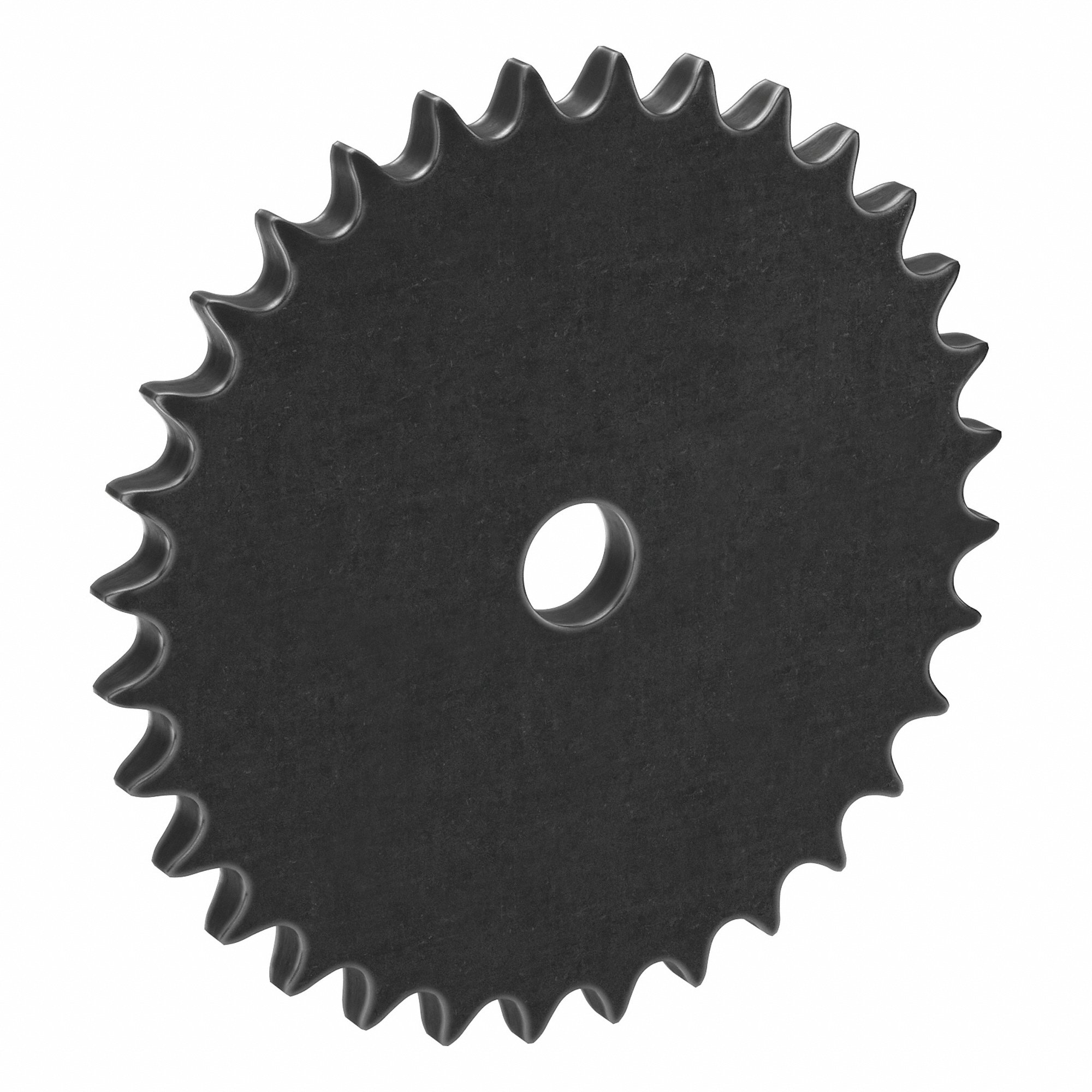

TRITAN 60A32 X 1 Roller Chain Sprocket, No Hub, 32 Teeth, 7.652 Inch Pitch Dia, Steel
Item: CU6ZLXModel: 60A32 X 1Cross Ref: 55WC37
7 In Stock
No Hub
1"
8.07"
Ships within 2 days via
13.00% off
€93.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1" |
| Bore Type | Plain |
| Chain Number | 60 |
| Finish | Black Oxide |
| For Chain Number | 60.0 |
| For Chain Pitch | 3/4" |
| For No. Of Strands | 1 |
| Hub Projection | Not Applicable |
| Hub Type | No Hub |
| Industry Chain Size | 60 |
| Keyway Depth | Not Applicable |
| Keyway Width | Not Applicable |
| Length Through Bore | 7/16" |
| Material | Steel |
| Max. Bore Dia. | 2 3/4" |
| Max. Bore-sprockets | 2 3/4" |
| No. Of Set Screws | 0 |
| No. Of Teeth | 32 |
| Outside Dia. | 8.07" |
| Pitch Dia. | 7.652" |
| Roller Chain Sprockets | Roller Chain Sprocket |
| Set Screw Location | Not Applicable |
| Set Screw Size | Not Applicable |
| Teeth Heat Treatment | Not Hardened |
| Tooth Width | 0.459" |
| Width Across Tooth Sets | Not Applicable |
Shipping Info:
| Ship weight (kg) | 2.48 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 20.5 |
| Ship width (cm) | 20.5 |
| Country of Origin | CN |
Product Variants
| Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Max. Bore Dia. | Bore Dia. | Hub Type | For Chain Pitch | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 50A10H X 5/8 | 2.023" | 10 | 5/16" | 7/8" | 5/8" | No Hub | 5/8" | 50.0 | €23.90 | |
| 80A10H X 3/4 | 3.236" | 10 | 9/16" | 1 1/2" | 3/4" | No Hub | 1" | 80.0 | €33.13 | |
| 100A10H X 1 | 4.045" | 10 | 11/16" | 1 7/8" | 1" | No Hub | 1 1/4" | 100.0 | €64.81 | |
| 100A11H X 1 | 4.438" | 11 | 11/16" | 2 1/4" | 1" | No Hub | 1 1/4" | 100.0 | €70.79 | |
| 40A12H X 1/2 | 1.932" | 12 | 5/16" | 1" | 1/2" | No Hub | 1/2" | 40.0 | €19.44 | |
| 50A12H X 5/8 | 2.415" | 12 | 5/16" | 1 1/4" | 5/8" | No Hub | 5/8" | 50.0 | €24.17 | |
| 60A12H X 3/4 | 2.898" | 12 | 7/16" | 1 3/8" | 3/4" | No Hub | 3/4" | 60.0 | €27.42 |
