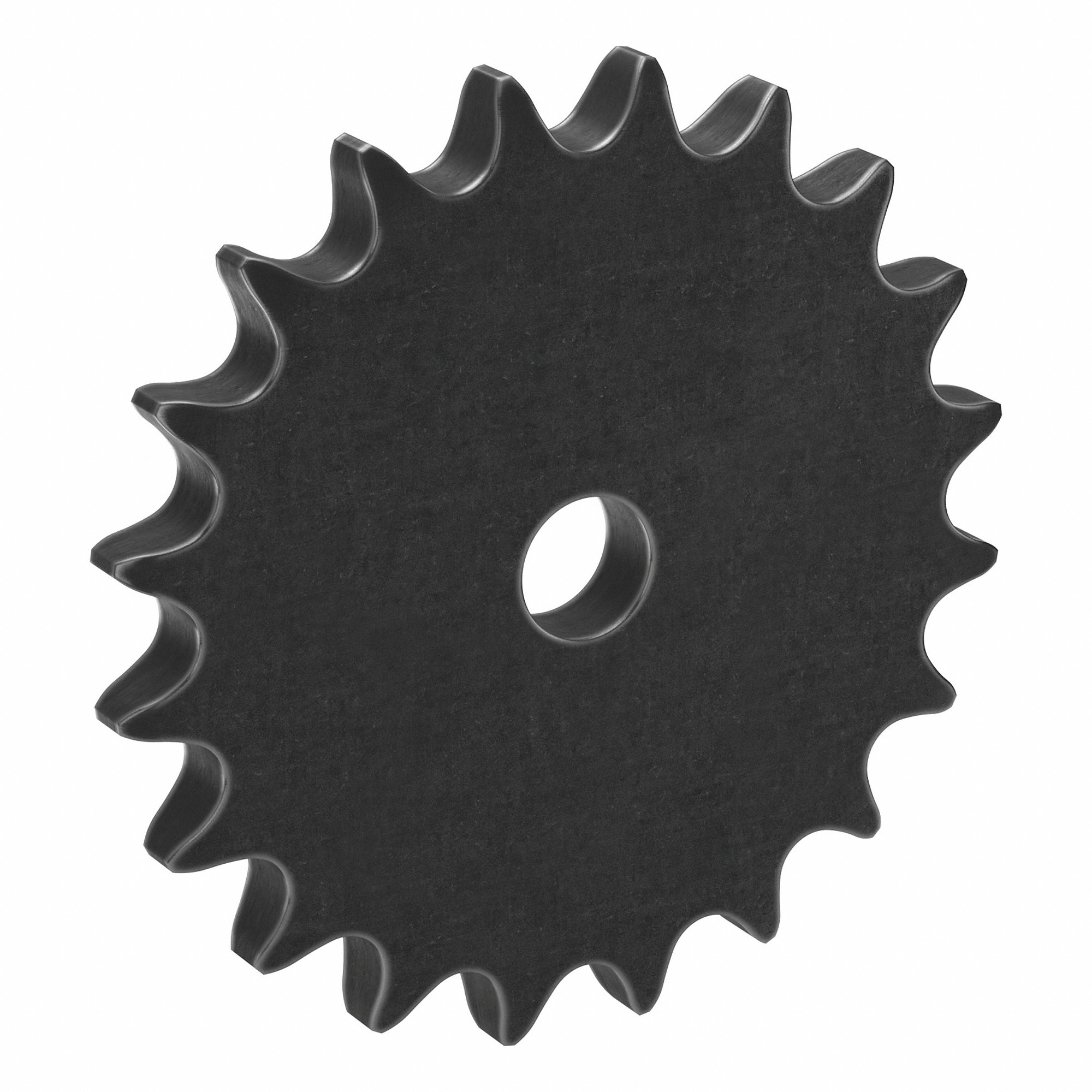

TRITAN 60A20H X 3/4 Roller Chain Sprocket, No Hub, 20 Teeth, 4.794 Inch Pitch Dia, Steel
Item: CU6ZJWModel: 60A20H X 3/4Cross Ref: 55WC29
7 In Stock
Ships within 2 days via
10.00% off
€58.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 3/4" |
| Bore Type | Plain |
| Chain Number | 60 |
| Finish | Black Oxide |
| For Chain Number | 60.0 |
| For Chain Pitch | 3/4" |
| For Number Of Strands | 1 |
| Hub Projection | Not Applicable |
| Hub Type | No Hub |
| Industry Chain Size | 60 |
| Item - Roller Chain Sprockets | Roller Chain Sprocket |
| Keyway Depth | Not Applicable |
| Keyway Width | Not Applicable |
| Length Through Bore | 7/16" |
| Material | Steel |
| Max. Bore - Sprockets | 2 5/8" |
| Maximum Bore Dia. | 2 5/8" |
| Number Of Set Screws | 0 |
| Number Of Teeth | 20 |
| Outside Dia. | 5.19" |
| Pitch Dia. | 4.794" |
| Set Screw Location | Not Applicable |
| Set Screw Size | Not Applicable |
| Teeth Heat Treatment | Hardened Teeth |
| Tooth Width | 0.459" |
| Width Across Tooth Sets | Not Applicable |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 13.18 |
| Ship width (cm) | 13.18 |
| Country of Origin | CN |
Product Variants
| Model | Number Of Teeth | Bore Dia. | Outside Dia. | For Chain Number | For Chain Pitch | Pitch Dia. | Maximum Bore Dia. | Hub Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 50A10H X 5/8 | 10 | 5/8" | 2.3" | 50.0 | 5/8" | 2.023" | 7/8" | No Hub | €28.27 | |
| 80A10H X 3/4 | 10 | 3/4" | 3 17/25" | 80.0 | 1" | 3.236" | 1 1/2" | No Hub | €40.22 | |
| 100A10H X 1 | 10 | 1" | 4 3/5" | 100.0 | 1 1/4" | 4.045" | 1 7/8" | No Hub | €80.38 | |
| 100A11H X 1 | 11 | 1" | 5.01" | 100.0 | 1 1/4" | 4.438" | 2 1/4" | No Hub | €87.18 | |
| 40A12H X 1/2 | 12 | 1/2" | 2.17" | 40.0 | 1/2" | 1.932" | 1" | No Hub | €23.70 | |
| 50A12H X 5/8 | 12 | 5/8" | 2.71" | 50.0 | 5/8" | 2.415" | 1 1/4" | No Hub | €28.37 | |
| 60A12H X 3/4 | 12 | 3/4" | 3 1/4" | 60.0 | 3/4" | 2.898" | 1 3/8" | No Hub | €33.76 |
