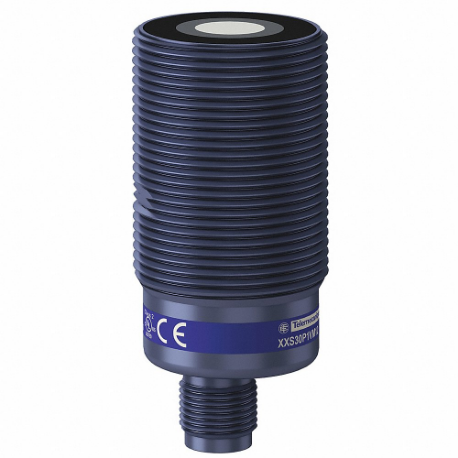

TELEMECANIQUE SENSORS XXS30P1VM12 Cylindrical Ultrasonic Sensor, 30 mm Dia, 0 To 10V, Analogue, 5 Pin M12 Male Connector
Item: CU6ELRModel: XXS30P1VM12Cross Ref: 55WX64
7 In Stock
Ships within 2 days via
5.00% off
€585.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylindrical Ultrasonic Sensor |
| Analog Output Signal | 0-10V DC |
| Body Material | PBT |
| Case Material | Polybutylene Terephthalate |
| Circuit Type | Analogue |
| Depth | 2.53" |
| Dia. | 30 mm |
| Display Qty | 1 |
| Electrical Connection | 5 Pin M12 Male Connector |
| Features | M30 Sensor Body, Reverse Polarity Protection, Software Configurable, Synchronization Mode |
| Ip Rating | IP65, IP67 |
| Length | 1.18" |
| Max. Load Amps | 30 mA |
| Max. Operating Temp. | 158°F |
| Max. Output Circuit Voltage | 10V |
| Max. Sensing Distance | 100cm |
| Min. Operating Temp. | -13°F |
| Min. Output Circuit Voltage | 0V |
| Min. Sensing Distance | 11cm |
| No. Of Pins | 5 |
| Nominal Sensor Dia. | M30 Threaded |
| Operating Frequency | 200 kHz |
| Operating Temp. | -13°F to +158°F |
| Output | 0 To 10V |
| Output Circuit Type | Analog |
| Resistance Properties | Electrical Fast Transient Resistant, Electromagnetic Fields Resistant, Electrostatic Discharge Resistant, Shock Resistant, Vibration Resistant |
| Response Time | 100 ms |
| Sensor Body Style | Cylindrical |
| Sensor Connector Type | M12 |
| Sensor Dia. | 30 mm |
| Sensor Face Orientation | Straight |
| Sensor Height | 64 mm |
| Series | XXS Series |
| Supply Voltage | 14-30V DC |
| Switching Frequency | 200 kHz |
| Width | 1.18" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 6.43 |
| Ship length (cm) | 3 |
| Ship width (cm) | 3 |
| Country of Origin | US |
Product Variants
| Product | Model | Depth | Circuit Type | Operating Frequency | Response Time | Output | Body Material | Case Material | Electrical Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XXS18B1VM12 | 2 13/25" | Analogue | 200 kHz | 100 ms | 0 To 10V | Brass | Nickel Plated Brass | 5 Pin M12 Male Connector | - | RFQ
|
 |
XXS18P1VM12 | 2 13/25" | Analogue | 200 kHz | 100 ms | 0 To 10V | PBT | Polybutylene Terephthalate | 5 Pin M12 Male Connector | - | RFQ
|
|
XXS18S1VM12 | 2 13/25" | Analogue | 200 kHz | 100 ms | 0 To 10V | Stainless Steel | Stainless Steel | 5 Pin M12 Male Connector | - | RFQ
|
 |
XXS18B1PM12 | 2 13/25" | Discrete | 200 kHz | 45 ms | PNP | Brass | Nickel Plated Brass | 5 Pin M12 Male Connector | €542.66 | |
|
XXS18S1PM12 | 2 13/25" | Discrete | 200 kHz | 45 ms | PNP | Stainless Steel | Stainless Steel | 5 Pin M12 Male Connector | €569.77 | |
 |
XXS18P1PM12 | 2 13/25" | Discrete | 200 kHz | 45 ms | PNP | PBT | Polybutylene Terephthalate | 5 Pin M12 Male Connector | €461.93 | |
 |
XXS30B2VM12 | 4.02" | Analogue | 120 kHz | 200 ms | 0 To 10V | Brass | Nickel Plated Brass | 5 Pin M12 Male Connector | €691.60 |
