LEESON Fan and Blower Motors, Three Phase, Dripproof, Resilient Base
Marathon fan and blower motors are used in band saws, drill presses, ventilators, farm equipment and summer cooling fans. These motors feature permanently lubricated, double sealed bearings for smooth movement & extended motor life.
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y| Style | Model | Hp | Shaft Length | Voltage | Motor Enclosure Design | Motor Mounting Position | Frame | Motor Thermal Protection | Motor Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 5KC35JN7 | - | - | - | - | - | - | - | - | €301.88 | |
| B | 5K46MN4087X | - | - | - | - | - | - | - | - | €628.46 | |
| C | 056T17F15661 | - | - | - | - | - | - | - | - | €790.82 | |
| D | 5K49PN4088X | 1 1/2 hp | 1 7/8" | 200-230/460V AC | Open Dripproof | Horizontal | 56H | Automatic | Cradle Base | €688.69 | |
| E | 056T17D5348 | 1 1/2 hp | 1.91" | 208-230/460V AC | Dripproof | Horizontal | 56 | Automatic | Resilient Base | €684.64 | |
| F | 056T17D5329 | 1 1/2 hp | 1 15/16" | 208-230/460V AC | Open Dripproof | Horizontal | 56 | None | Cradle Base | €603.95 | |
| G | 5K46MN4087 | 1 hp | 1 7/8" | 208-230/460V AC | ODP | Horizontal | 56 | None | Cradle Base | €516.79 | |
| H | 056T17D2101 | 1 hp | 1 15/16" | 208-230/460V AC | Open Dripproof | Horizontal | 56 | Auto | Cradle Base | €589.63 | |
| I | 056T17D5347 | 1 hp | 1.91" | 208-230/460V AC | Dripproof | Horizontal | 56 | Automatic | Resilient Base | €628.46 | |
| J | 5K42HN4089X | 1/2 hp | 1 7/8" | 208-230/460V AC | Open Dripproof | Horizontal | 56 | Auto | Cradle Base | €583.64 | |
| K | 056T17D2118 | 1/2 hp | 1.97" | 575V AC | Dripproof | Horizontal | 56 | No | Resilient Base | €455.60 | |
| L | 056T17D5345 | 1/2 hp | 1 22/25" | 208-230/460V AC | - | Horizontal | 56 | - | - | €845.07 | |
| M | 5K42HN4089 | 1/2 hp | 1 7/8" | 208-230/460V AC | Open Dripproof | Vertical, Horizontal | 56 | Automatic | Cradle Base | €458.35 | |

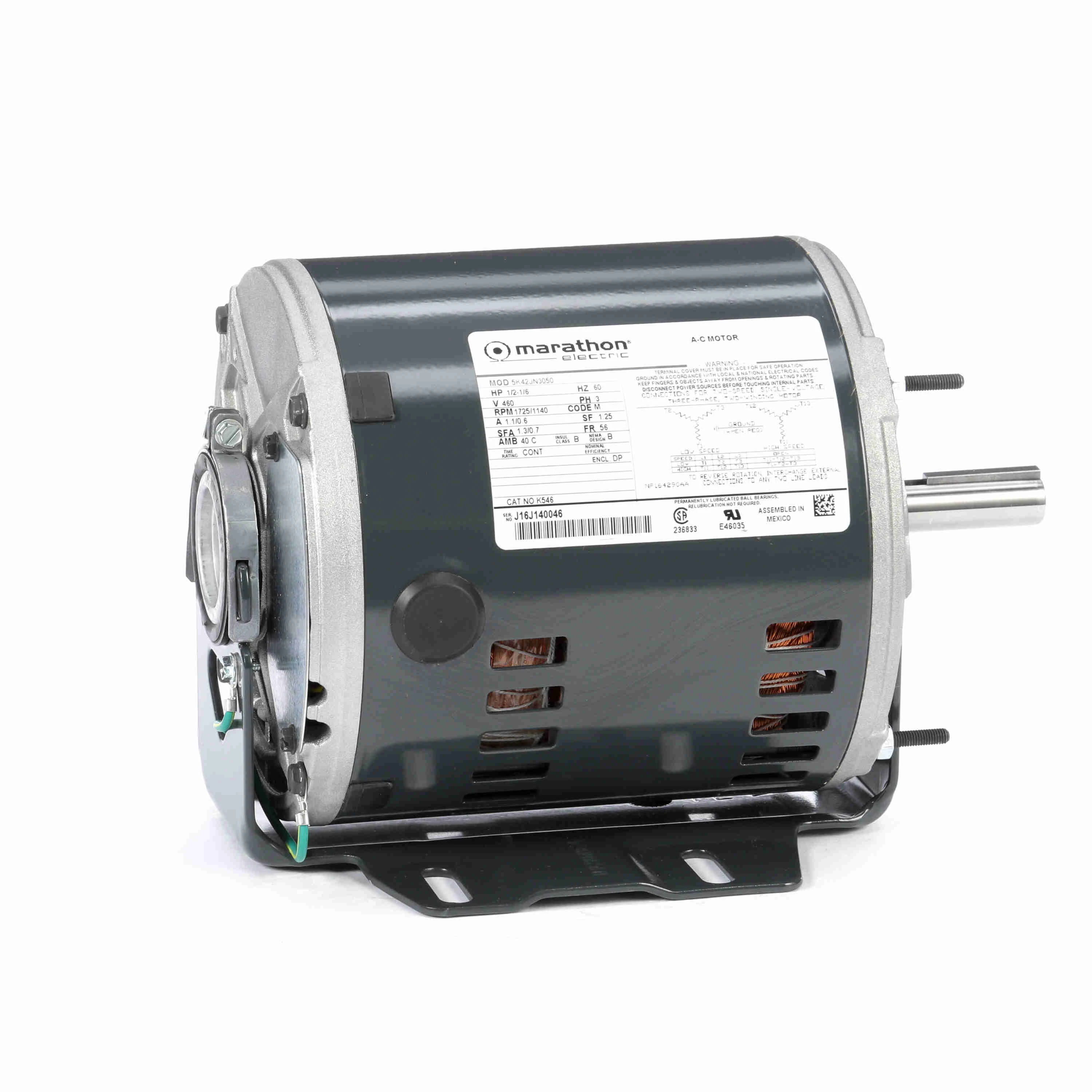

| N | 5K42JN3050 | 1/2 hp, 1/6 hp | 1 22/25" | 460V AC | Dripproof | All Angle | 56 | No | Rigid Base | €665.51 | |
| O | 056T17D2104 | 1/3 hp | 1.97" | 208-230/460V | Dripproof | Horizontal | 56 | Automatic | Resilient Base | €695.20 | |
| P | 5K49NN2147X | 2 hp | 1 7/8" | 208-230/460V AC | ODP | Horizontal | 56H | None | Cradle Base | €669.94 | |
| Q | 056T17D5332 | 2 hp | 1.91" | 208-230/460V AC | Dripproof | Horizontal | 56H | No | Resilient Base | €632.78 | |
| R | 5K49UN4086X | 2 hp | 1 7/8" | 208-230/460V AC | Open Dripproof | Horizontal | 56H | None | Cradle Base | €737.00 | |
| S | 056T17D5349 | 2 hp | 1.91" | - | Dripproof | Horizontal | 56H | Automatic | Resilient Base | €1,147.41 | |
| T | 5K49PN3052 | 3 1/4 hp | 1 22/25" | 460V AC | Dripproof | All Angle | 56 | No | Rigid Base | €790.82 | |
| U | 056T17D5350 | 3 hp | 2 1/4" | 208-230/460V AC | Open Dripproof | Horizontal | 56HZ | Auto | - | €969.96 | |
| V | 056T17D2119 | 3/4 hp | 1.97" | 575V AC | Dripproof | Horizontal | 56 | No | Resilient Base | €508.08 | |
| W | 056T17D5346 | 3/4 hp | 1.91" | 208-230/460V AC | Dripproof | Horizontal | 56 | Automatic | Resilient Base | €877.13 | |
| X | 5K46KN4085 | 3/4 hp | 1 7/8" | 208-230/460V AC | Open Dripproof | Horizontal | 56 | None | Cradle Base | €463.96 | |
| Y | 056T17D2099 | 3/4 hp, 1/2 hp | 1 7/8" | 208-230/460V AC | Open Drip Proof | - | - | Auto | Cradle Base | €754.57 |
Features
- They feature dripproof enclosures to permit the flow of external air through the motor windings to keep it cool during continuous operation.
- Their three-phase design offers a variety of speeds ranging between 1725 and 3450 rpm and is incorporated with class B insulation to sustain temperatures up to 130 degrees C.
- They come integrated with resilient ring mounts to keep the motor suspended for reduced vibration and noise produced during motor startup.
Standards and Approvals
- CSA
- CE
- UL
Frequently Asked Questions
What are the uses of automatic thermal protectors?
Thermal protector is a device that is sensitive to increased motor temperature and protects the motor against overheating due to overload or failure to start. These units are available with either manual or automatic reset.
What is the difference between single-and-multi-speed motors?
A single-speed motor has a constant speed rating at which it runs when supplied with the pre-determined voltage and frequency. A multi-speed motor runs at more than one speed (depending on how the motor has been connected to the supply).
What is the type of mounting orientation in these motors?
The fan and blower motors can be mounted in a horizontal or vertical orientation for user convenience.
