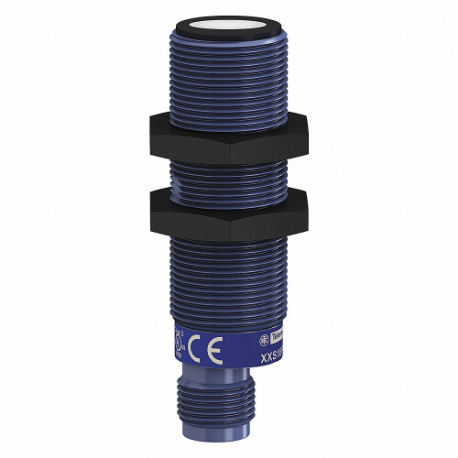

TELEMECANIQUE SENSORS XXS18P1PM12 Cylindrical Ultrasonic Sensor, 18 mm Dia, Pnp, Discrete, 5 Pin M12 Male Connector
Item: CU6ELLModel: XXS18P1PM12Cross Ref: 55WX48
7 In Stock
Ships within 2 days via
5.00% off
€438.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylindrical Ultrasonic Sensor |
| Body Material | PBT |
| Case Material | Polybutylene Terephthalate |
| Circuit Type | Discrete |
| Depth | 2 13/25" |
| Dia. | 18 mm |
| Display Qty | 1 |
| Electrical Connection | 5 Pin M12 Male Connector |
| Features | M18 Sensor Body, Reverse Polarity Protection, Software Configurable, Synchronization Mode |
| Ip Rating | IP65, IP67 |
| Length | 0.71" |
| Max. Load Amps | 30 mA |
| Max. Operating Temp. | 158°F |
| Max. Sensing Distance | 100cm |
| Min. Operating Temp. | -13°F |
| Min. Sensing Distance | 11cm |
| No. Of Pins | 5 |
| Nominal Sensor Dia. | M18 Threaded |
| Operating Frequency | 200 kHz |
| Operating Temp. | -13°F to +158°F |
| Output | PNP |
| Output Circuit Contact Form | NO, NC |
| Output Circuit Type | PNP |
| Resistance Properties | Electrical Fast Transient Resistant, Electromagnetic Fields Resistant, Electrostatic Discharge Resistant, Shock Resistant, Vibration Resistant |
| Response Time | 45 ms |
| Sensor Body Style | Cylindrical |
| Sensor Connector Type | M12 |
| Sensor Dia. | 18 mm |
| Sensor Face Orientation | Straight |
| Sensor Height | 64 mm |
| Series | XXS Series |
| Supply Voltage | 10-30V DC |
| Switching Frequency | 200 kHz |
| Width | 0.71" |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 6.4 |
| Ship length (cm) | 1.8 |
| Ship width (cm) | 1.8 |
Product Variants
| Product | Model | Depth | Dia. | Max. Load Amps | Supply Voltage | Sensor Dia. | Nominal Sensor Dia. | Sensor Height | Circuit Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XXS18B1VM12 | 2 13/25" | 18 mm | 30 mA | 14-30V DC | 18 mm | M18 Threaded | 64 mm | Analogue | - | RFQ
|
 |
XXS18P1VM12 | 2 13/25" | 18 mm | 30 mA | 14-30V DC | 18 mm | M18 Threaded | 64 mm | Analogue | - | RFQ
|
|
XXS18S1VM12 | 2 13/25" | 18 mm | 30 mA | 14-30V DC | 18 mm | M18 Threaded | 64 mm | Analogue | - | RFQ
|
 |
XXS18B1PM12 | 2 13/25" | 18 mm | 30 mA | 10-30V DC | 18 mm | M18 Threaded | 64 mm | Discrete | €542.66 | |
|
XXS18S1PM12 | 2 13/25" | 18 mm | 30 mA | 10-30V DC | 18 mm | M18 Threaded | 64 mm | Discrete | €569.77 | |
 |
XXS30P1VM12 | 2.53" | 30 mm | 30 mA | 14-30V DC | 30 mm | M30 Threaded | 64 mm | Analogue | €616.41 | |
 |
XXS30B2VM12 | 4.02" | 30 mm | 65 mA | 14-30V DC | 30 mm | M30 Threaded | 102 mm | Analogue | €691.60 |
