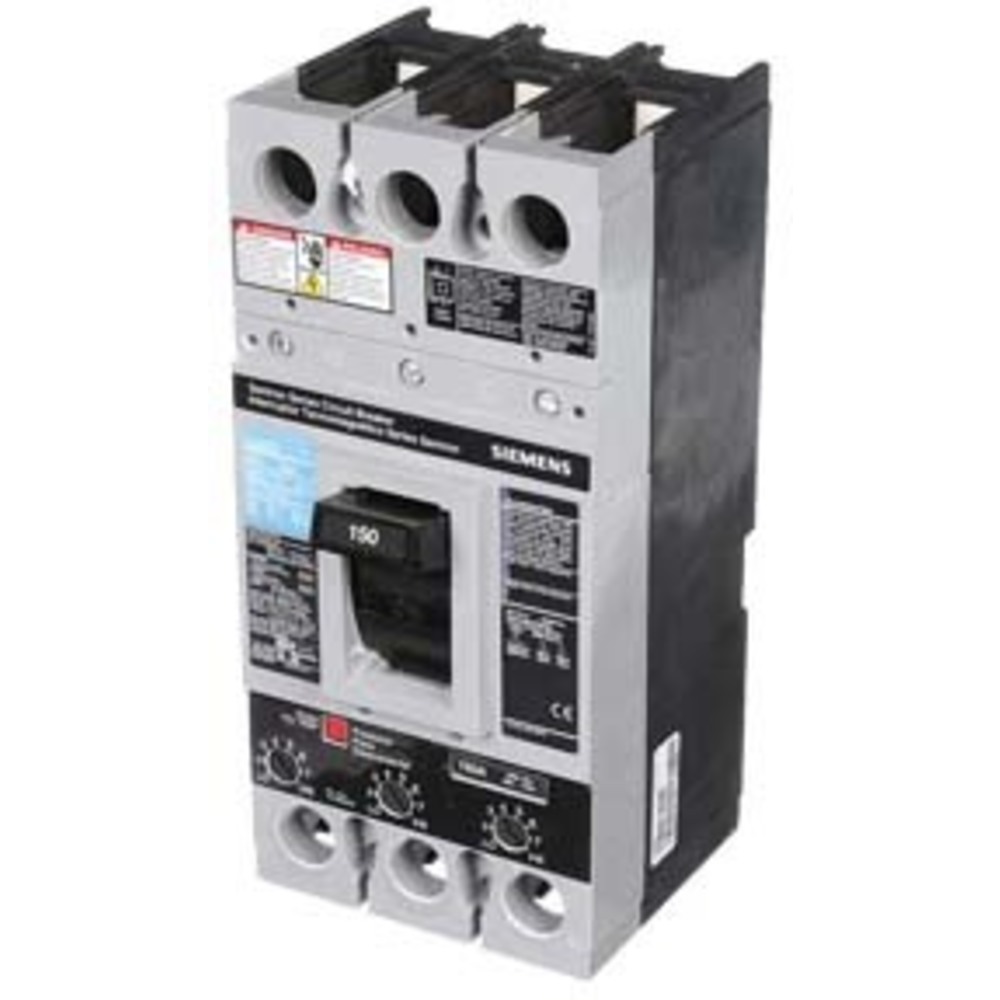

SIEMENS FXD63B150 Bolt On Circuit Breaker, FXD, 150 A, 600 VAC
Item: AG8NUAModel: FXD63B150Cross Ref: 6FNE7
7 In Stock
Ships within 2 days via
10.00% off
€1,607.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 600V AC |
| Aic Rating | 35 kAIC @ 480V |
| Amps | 150A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Circuit Breaker Type | Standard |
| Dc Voltage Rating | 500V DC |
| Depth | 4" |
| For Use With | Sb Switchboards Without Lugs, Sentron Panelboards |
| Frame Size | 250A/FD |
| Frame Type | FXD |
| Height | 9 1/2" |
| High Amp Trip Setting | 150A |
| Instantaneous Trip | Fixed |
| Low Amp Trip Setting | 150A |
| Maximum Air Rating | 22 Ka @ 600V Ac |
| Number Of Poles | 3 |
| Phase | Three |
| Phase Connection | ABC |
| Series | FXD6-A Series |
| Terminal Connection | Lug |
| Trip Type | Thermal Magnetic |
| Voltage | 600V |
| Voltage Type | AC |
| Width | 4.5" |
Shipping Info:
| Ship weight (kg) | 4 |
| Ship height (cm) | 17.4 |
| Ship length (cm) | 13.8 |
| Ship width (cm) | 27.5 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Details:
- Low-voltage molded case circuit breaker designed to protect Sentron Series load centres, panelboards and switchboard distribution panels from overloads or short-circuits
- Features a non-interchangeable thermal-magnetic trip unit to provide both instantaneous and long-time current limiting protection
- Adjustable magnetic trip value within the range of 800 - 1500 A and a fixed thermal trip value of 150 A
- Bolt-on mounting facility equipped with load-side lug terminals that allow both horizontal and vertical installations
- Meets UL 489 and IEC 60947-2 Standards
Product Variants
| Product | Model | Number Of Poles | Amps | Phase | Dc Voltage Rating | High Amp Trip Setting | Low Amp Trip Setting | Circuit Breaker Type | Frame Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FXD62B200 | 2 | 200A | - | - | - | - | - | - | €1,620.20 | |
 |
FXD62B225 | 2 | 225A | - | - | - | - | - | - | €1,620.20 | |
 |
FXD62B250 | 2 | 250A | Single | 250V AC | 250A | 250A | Standard | 250A/FD | €1,681.83 | |
 |
FXD63A150 | 3 | 150A | - | - | - | - | - | - | €2,151.34 | |
 |
FXD63A250 | 3 | 250A | - | - | - | - | - | - | €2,151.34 | |
 |
FXD63B070 | 3 | 70A | - | - | - | - | - | - | €1,786.52 | |
 |
FXD63B080 | 3 | 80A | - | - | - | - | - | - | €1,786.52 |
