Hydraulic Cartridge Valves

Filter

Hydraulic cartridge valves are small, self-contained valves designed to be installed directly into hydraulic manifolds or other hydraulic systems. They consist of a valve body containing the...Read more

PARKER -

B20 Valve Body

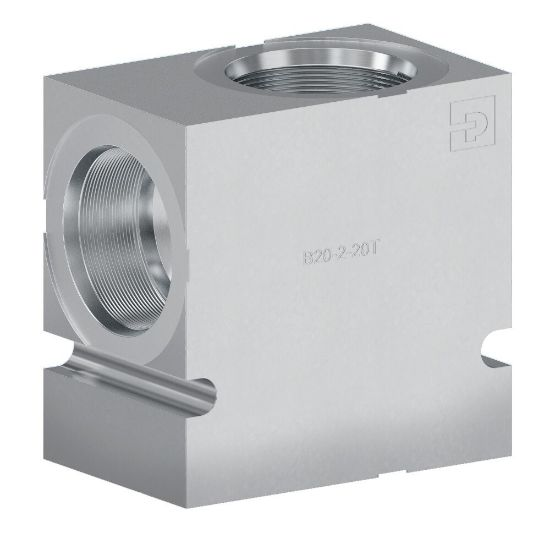

PARKER B20-2-20T

A

Style	Model	Port Size	Port Type	Valve Type	Valve Body	Series	Price
A	B20-2-20T	20	SAE	Cartridge Valve Body	B20-2	B20 Series	€352.58
A	B20-2-A20T	20	SAE	Cartridge Valve Body	B20-2	B20 Series	€175.23

VICKERS -

CVI Series Cartridge Valve Inserts

VICKERS 847AN00197A

A

Style	Model	Flow Rate	Price
A	847AN00197A	-	€1,488.96	RFQ
A	847AN00050A	-	€627.66	RFQ
A	847AN00004A	-	€1,873.08	RFQ
A	847AN00016A	-	€1,255.32	RFQ
A	02-111938	-	€1,387.47	RFQ
A	847AN00045A	-	€526.68	RFQ
A	847AN00070A	255 LPM	€685.08	RFQ
A	847AN00026A	255 LPM	€526.68	RFQ
A	02-310563	255 LPM	€1,918.62	RFQ
A	02-310564	255 LPM	€1,918.62	RFQ
A	847AN00239A	590 LPM	€1,134.54	RFQ
A	02-157741	590 LPM	€2,320.56	RFQ
A	847AN00020A	590 LPM	€700.92	RFQ
A	847AN00044A	590 LPM	€944.46	RFQ
A	847AN00031A	590 LPM	€900.90	RFQ
A	02-310642	1250 LPM	€3,027.42	RFQ
A	02-157559	1250 LPM	€1,189.98	RFQ
A	02-310643	1250 LPM	€3,027.42	RFQ
A	847AN00001A	1250 LPM	€1,021.68	RFQ
A	847AN00066A	1700 LPM	€1,554.30	RFQ
A	847AN00034A	1700 LPM	€1,411.74	RFQ
A	847AN00017A	1700 LPM	€1,411.74	RFQ
A	847AN00037A	1700 LPM	€1,411.74	RFQ
A	02-157233	1700 LPM	€3,712.50	RFQ
A	02-157234	1700 LPM	€3,712.50	RFQ

VICKERS -

Cartridge Valve Units

VICKERS 02-147613

A

Style	Model	Flow Rate	Price
A	02-147613	10 LPM	€2,405.34	RFQ
A	515866	190 LPM	€6,977.72	RFQ
A	515870	450 LPM	€6,375.88	RFQ

MONARCH -

Hydraulic Cartridge Valves

MONARCH 500205524369

A

MONARCH 500205524370

B

Style	Model	Voltage	Overall Height	Overall Width	Max. Pressure	Included Filter	Max. Flow Rate	Filter Media	Valve Cavity Size	Price
A	500205524369	24V DC	1.87"	1.13"	5000 psi	Filter Not Included	5 GPM	Not Applicable	C08 2	€169.99
B	500205524370	110V AC	2.39"	1.34"	5000 psi	Filter Not Included	5 GPM	Not Applicable	C08 2	€300.06

PARKER -

Cartridge Valves

A

B

Style	Model	Flow Rate	Max. Pressure	Max. Flow Rate	Included Filter	Filter Media	Cartridge Material	Included Seals	For Media	Price
A	DL081K	8 GPM	3000 psi	8 GPM	Filter Not Included	Not Applicable	Steel	Seals Included	Mineral Oil, Synthetic Oil	€202.30
B	DL101K	13 GPM	3500 psi	13 GPM	Filter Not Included	Not Applicable	Steel	Seals Included	Mineral Oil, Synthetic Oil	€241.35

EATON -

Danfoss ERV1-10 Series Proportional Valves

A

EATON 02-169422

B

Style	Model	Factory Set Pressure	Flow Rate	Valve Material	Height	Pressure Rating	Port Type	No. Of Valve Ports	Max. Operating Pressure	Price
A	566385	-	-	-	-	-	-	-	-	€354.20
A	02-169617	206.7 Bar	60 LPM	Steel	1.53"	240 Bar	Cartridge Only	2	240 Bar	€379.76
B	02-169422	241.15 Bar	60 LPM	Steel	1.53"	240 Bar	Cartridge Only	2	240 Bar	€196.79

EATON -

VLH Priority Valves

EATON 606-1317-003-UA

A

Style	Model	Valve Material	Height	Max. Pressure	Pressure Rating	Nominal Flow Rating	Mounting Type	Ports	Actuation Type	Price
A	606-1317-003-UA	Cast Iron	4 1/2"	276 Bar	276 Bar	240 LPM	Through Holes	SAE	Hydraulic Pilot Operated	€889.97
A	606-1318-003-UA	Ductile Iron	4 1/2"	276 Bar	276 Bar	240 LPM	Through Holes	SAE	Hydraulic Pilot Operated	€889.97
A	606-1202-003-LA	Ductile Iron	4 1/2"	276 Bar	276 Bar	240 LPM	Through Holes	SAE	Hydraulic Pilot Operated	€809.07

EATON -

Danfoss EFV1-12-C Series Proportional Valves

EATON 02-198900

A

EATON 02-201084

B

Style	Model	Flow Rate	Height	Override Type	Leakage Rate	Valve Material	Pressure Rating	Port Type	No. Of Valve Ports	Price
A	02-198900	77 LPM	2.63"	None	77 cc/min. to 483 cc/min.	Steel	210 Bar	Cartridge Only	3	€373.88
B	02-201084	114 LPM	3 12/25"	Screw In Type Manual Override	240 cc/min.	Steel	210 Bar	Cartridge Only	3	€513.61

PARKER -

B16 Valve Body

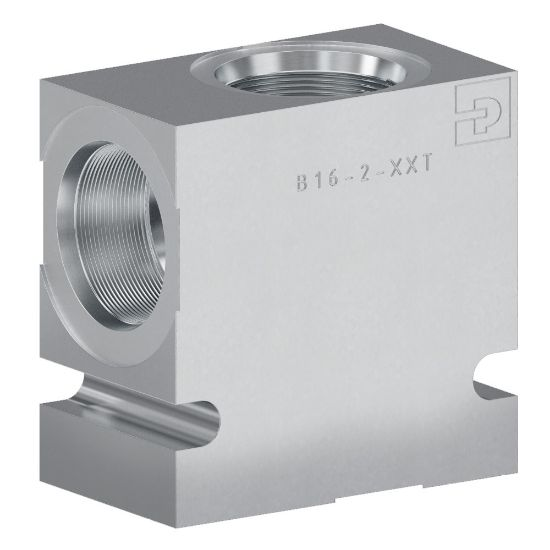

PARKER B16-2-16T

A

PARKER B16-2-A16T

B

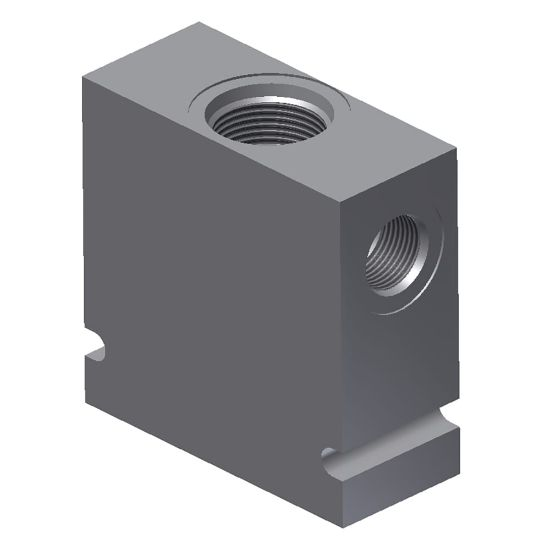

PARKER B16-3-A16T

C

Style	Model	Valve Body	Port Size	Port Type	Valve Type	Series	Price
A	B16-2-16T	B16-2	16	SAE	Cartridge Valve Body	B16 Series	€209.18
B	B16-2-A16T	B16-2	16	SAE	Cartridge Valve Body	B16 Series	€121.77
C	B16-3-A16T	B16-3	16	SAE	Cartridge Valve Body	B16 Series	€173.11

EATON -

SV13-16-O/OP/OS Series Solenoid Valves

EATON 02-177185

A

EATON 02-175821

B

Style	Model	Housing Material	Operating Temp.	Valve Material	Height	Flow Rate	Pressure Rating	Port Type	No. Of Valve Ports	Price
A	02-177185	Aluminum	-40°C to +120°C	Cartridge Only	1 23/25"	-	350 Bar	Cartridge Only	2	€309.28
B	02-175821	Steel	-40°C to +100°C	Cartridge Only	1 23/25"	132 LPM	350 Bar	Cartridge Only	2	€244.02

EATON -

Danfoss ERV1-16 Series Proportional Valves

EATON 02-172081

A

Style	Model	Voltage	Valve Material	Height	Flow Rate	Port Type	Max. Operating Pressure	Min. Operating Pressure	Factory Set Pressure	Price
A	02-172081	12V	Steel	1.53"	132 LPM	Cartridge Only	210 Bar	3.5 Bar	206.7 Bar	€346.01
A	02-113060	24V	Steel	1.53"	-	Cartridge Only	210 Bar	3.5 Bar	206.7 Bar	€415.19

PARKER -

Cartridge Valve Body

Cartridge Valve Body

Model	Item	Price (ex. VAT)
B10-2-8P	EA9AZB	€357.25

EATON -

Proportional Valve Epv10-0-0-V-00D-0-0-10

Proportional Valve Epv10-0-0-V-00D-0-0-10

Model	Item	Price (ex. VAT)
02-330255	AL7QCC	€738.62

PARKER -

Cartridge Valve Body

Cartridge Valve Body

Model	Item	Price (ex. VAT)
B16-3-16T	EA9AZM	€289.78

EATON -

Proportional Valve Esv1-12-C-0-00

Proportional Valve Esv1-12-C-0-00

Model	Item	Price (ex. VAT)
308AA00018A	AN9EAZ	€280.43

EATON -

Proportional Valve Esv1-10V-C-0-00

Proportional Valve Esv1-10V-C-0-00

Model	Item	Price (ex. VAT)
308AA00078A	AN8YEG	€293.28

PARKER -

Cartridge Valve Body

Cartridge Valve Body

Model	Item	Price (ex. VAT)
B10-4-8T	EA9AZD	€226.57

PARKER -

Hydraulic Cartridge PO Check Valve, C10-3 Valve Cavity Size, 5000 PSI Max. Pressure

Hydraulic Cartridge PO Check Valve, C10-3 Valve Cavity Size, 5000 PSI Max. Pressure

Model	Item	Price (ex. VAT)
CPH124P	CT7CZN	€301.33

PARKER -

Cartridge Ball Type Shuttle Valve, 10 gpm, Steel

Cartridge Ball Type Shuttle Valve, 10 gpm, Steel

Model	Item	Price (ex. VAT)
CSH101B	AD7DBA	€93.99

EATON -

Valve

Model	Item	Price (ex. VAT)
566313	AK3JUX	€96.49	RFQ

EATON -

Solenoid Valve Sv3-10-4-0-00

Solenoid Valve Sv3-10-4-0-00

Model	Item	Price (ex. VAT)
566022	AK3KGB	€97.59	RFQ

12

Working Mechanism

Direction Control Valves

When the valve is in the neutral position, hydraulic fluid is blocked from flowing through the valve.
When the valve is shifted to one of its active positions, it allows the hydraulic fluid to flow through the valve and into the appropriate hydraulic cylinder or motor.

Pressure Control Valves

These valves work by sensing the pressure of the hydraulic fluid and opening or closing a passage to maintain a specific pressure level.

Flow Control Valves

They control the size of a passage through which the fluid flows, thereby controlling the flow rate.
