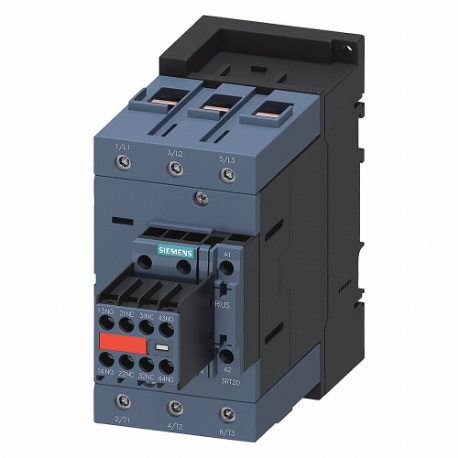

SIEMENS 3RT20461AK643MA0 Iec Magnetic Contactor, 110/120 VAC Coil Volts, 96 A, 2No/2Nc
Item: CU2TBHModel: 3RT20461AK643MA0Cross Ref: 499K01
7 In Stock
Ships within 2 days via
10.00% off
€981.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Magnetic Contactor |
| Aux. Contact Configuration | 2NO/2NC |
| Auxiliary Contacts Included | 2NO/2NC |
| Coil Voltage | 120V AC |
| Contactor Style | IEC |
| Depth | 7 17/25" |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Frame Size | S3 |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 96A |
| Full Load Amps-resistive | 130A |
| Full Load Current - Resistive | 130A |
| Height | 5.51" |
| Horsepower @ Single Phase - 240v Ac | 20 hp |
| Horsepower @ Three Phase (600 Vac) | 75 hp |
| Horsepower @ Three Phase - 208v Ac | 30 hp |
| Horsepower @ Three Phase - 480v Ac | 75 hp |
| Hp @ 1 Phase - 240v | 20 hp |
| Hp @ 3 Phase - 208v | 30 hp |
| Hp @ 3 Phase - 240v | 30 hp |
| Hp @ 3 Phase - 480v | 75 hp |
| Hp @ 3 Phase - 575v | 75 hp |
| Includes Auxiliary Contacts | Yes |
| Integrated Surge Suppression | No |
| Main Power Pole Contact Form | 3NO |
| Maximum Operating Temperature | 140°F |
| Maximum Voltage Rating | 1000V AC |
| Mechanical Operating Durability | 10000000 |
| Minimum Operating Temperature | -13°F |
| Mounting Hole Dia. | 1/5" |
| Mounting Hole Distance | 5 3/25" |
| Mounting Hole Distance - Width | 2 9/25" |
| Mounting Position | Vertical |
| Mounting Style | Din Rail, Surface |
| Number Of Auxillary Contacts | 4 |
| Number Of Normally Open Main Contacts | 3 |
| Number Of Poles | 3 |
| Overall Depth | 7.68" |
| Overall Height | 5.51" |
| Overall Width | 2 19/25" |
| Reversible | No |
| Reversing Capability | Non-reversing |
| Series | SIRIUS 3RT SAFETY CONTACTORS |
| Terminal Connection Type | Screw Terminals |
| Width | 2 19/25" |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 1.78 |
| Ship height (cm) | 14 |
| Ship length (cm) | 19.51 |
| Ship width (cm) | 7.01 |
| Country of Origin | DE |
Product Variants
| Product | Model | Number Of Poles | Reversing Capability | Main Power Pole Contact Form | Auxiliary Contacts Included | Wire Termination Type | Frame Size | Integrated Surge Suppression | Nominal Coil Voltage @ 60hz | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3RT20182AF02 | 3 | Non-reversing | 3NO | 1NC | Spring Loaded | S00 | No | 120V AC | €218.26 | |
 |
3RT20181AF01 | 3 | Non-reversing | 3NO | 1NO | Screw | S00 | No | 120V AC | €216.44 | |
 |
3RT20182AF01 | 3 | Non-reversing | 3NO | 1NO | Spring Loaded | S00 | No | 120V AC | €218.26 | |
 |
3RT20271AG20 | 3 | - | - | - | - | - | - | - | €415.54 | |
|
3RT20271AF00 | 3 | Non-reversing | 3NO | 1NO/1NC | Screw | S0 | No | 120V AC | €429.72 | |
|
3RT20181AK610UA0 | 3 | Non-reversing | 3NO | 1NO | Screw | S00 | - | 120V AC | €327.93 | |
 |
3RT20272AK60 | 3 | Non-reversing | 3NO | 1NO/1NC | Spring Loaded | S0 | No | 120V AC | €452.06 |
