Round Standoffs Caps

Filter

APPROVED VENDOR -

Clear Anodized Aluminum Round Standoffs Caps

APPROVED VENDOR ZA0240-AL28A

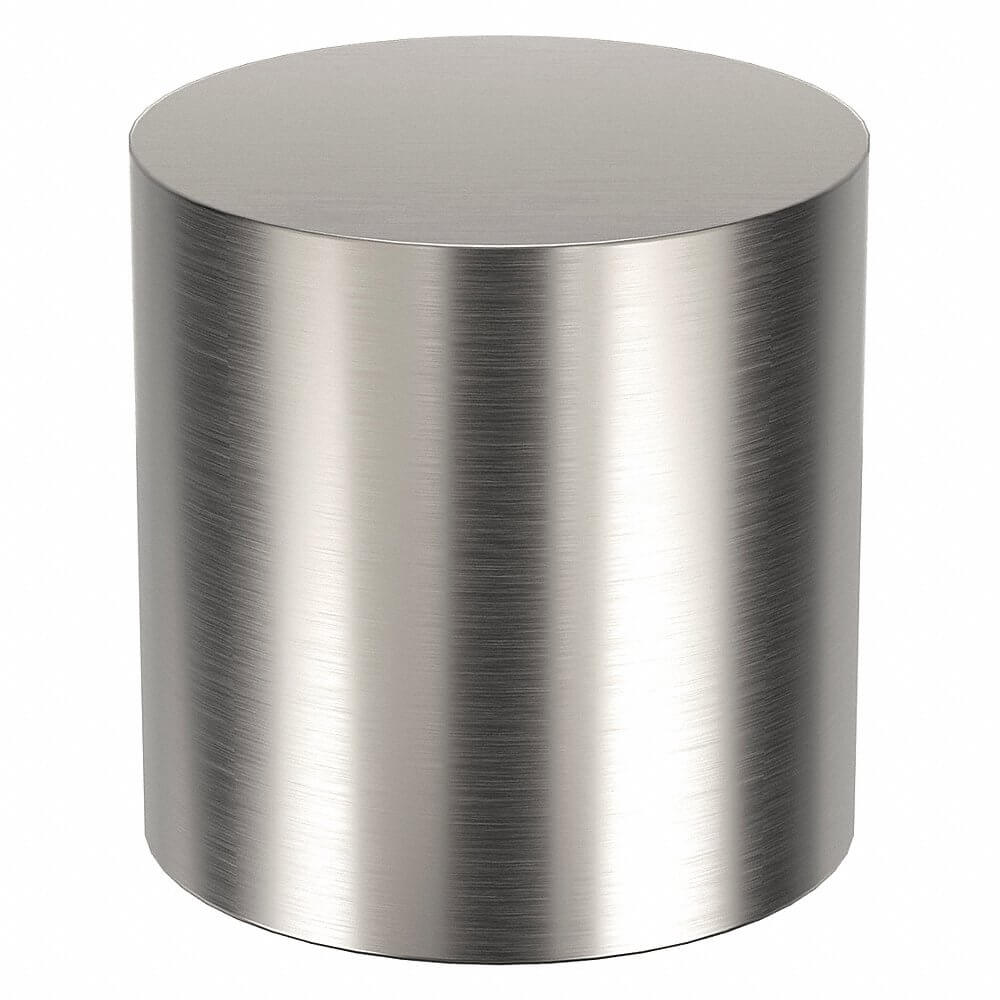

APPROVED VENDOR ZA0241-AL28B

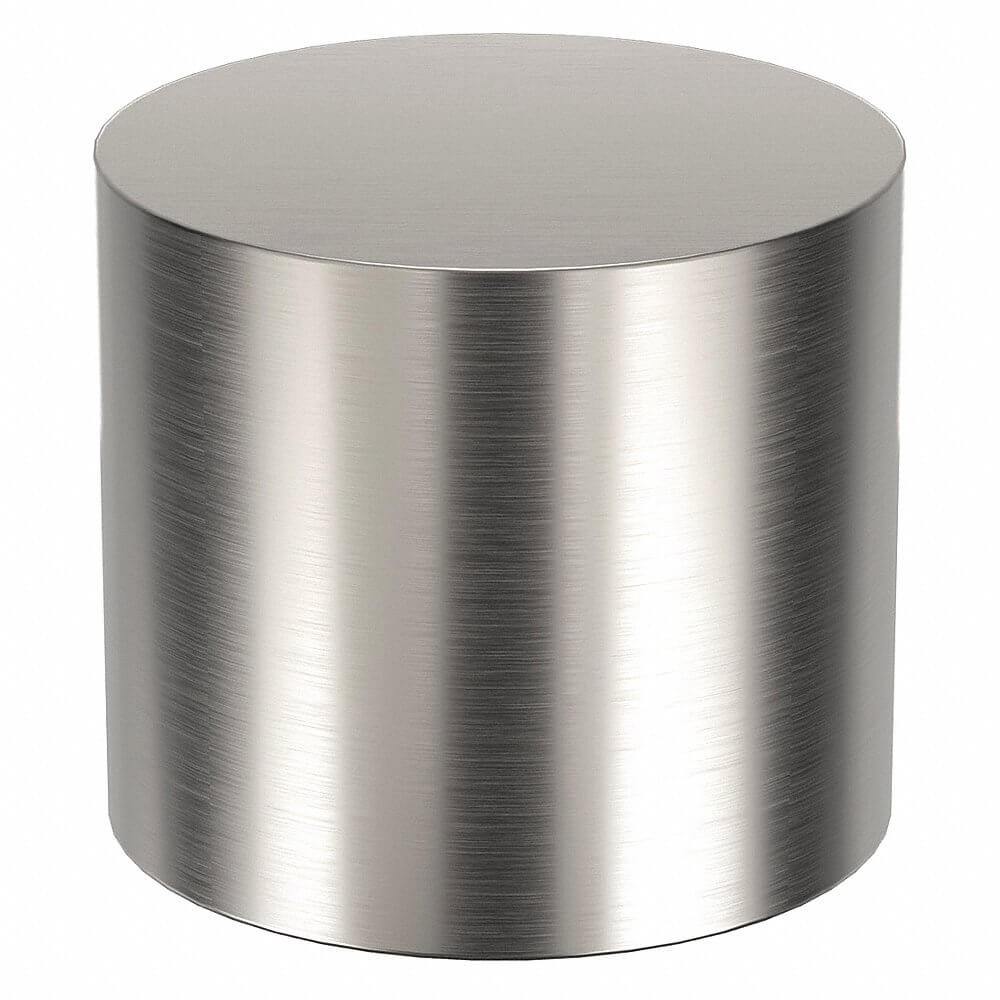

APPROVED VENDOR ZA0243-AL28C
APPROVED VENDOR ZA0244-AL28D

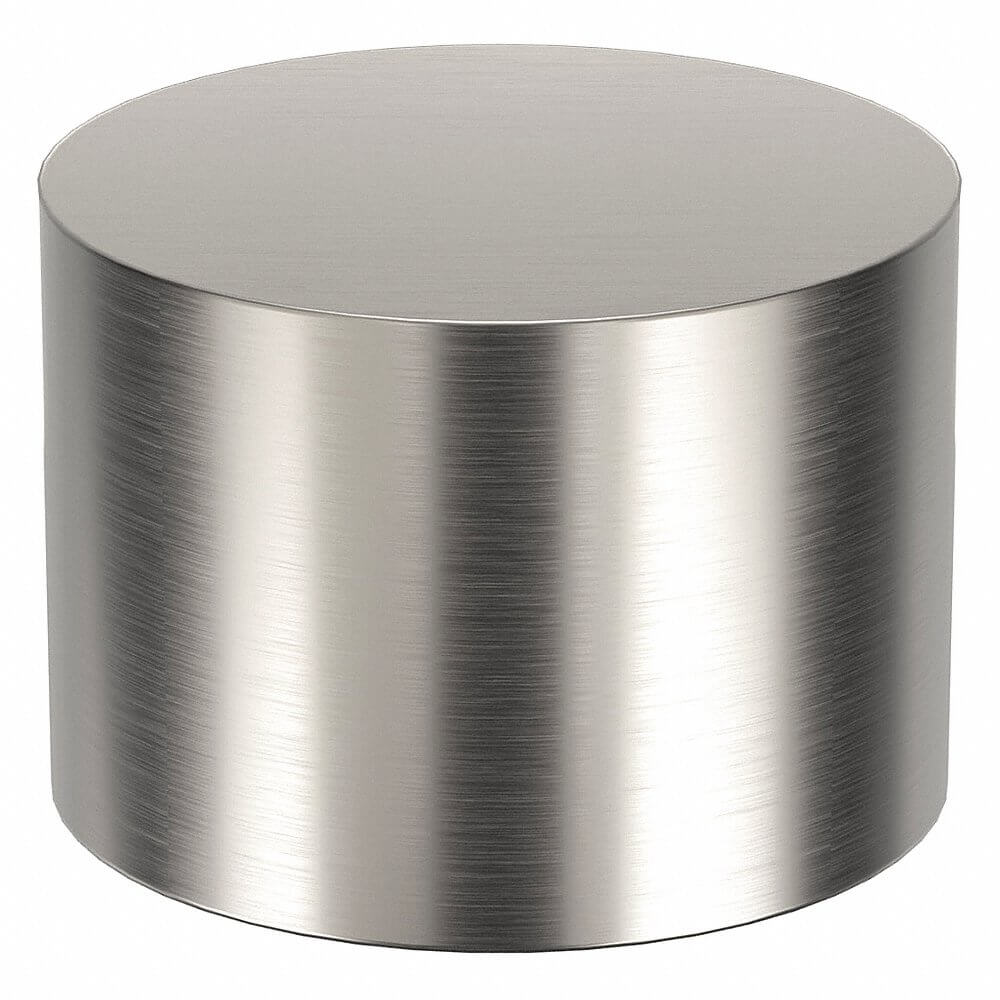

APPROVED VENDOR ZA0246-AL28E
APPROVED VENDOR ZA0247-AL28F

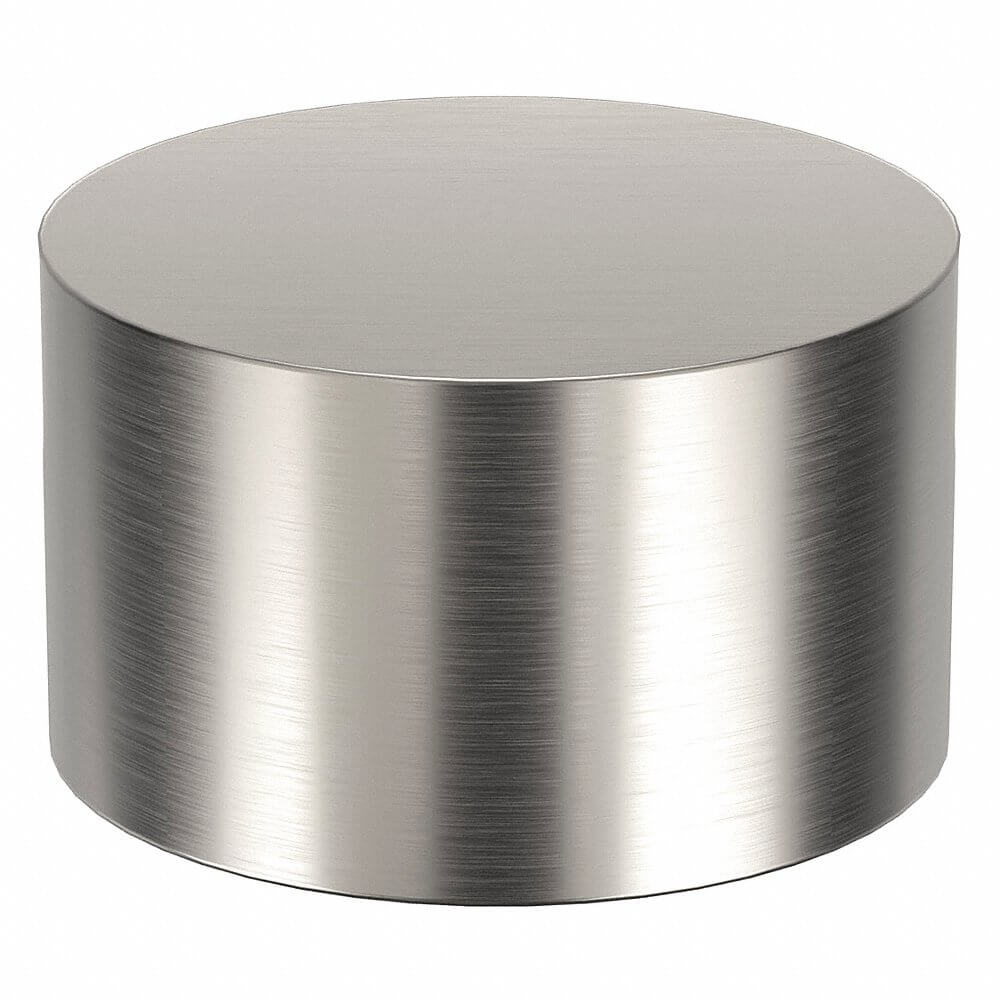

APPROVED VENDOR ZA0249-AL28G

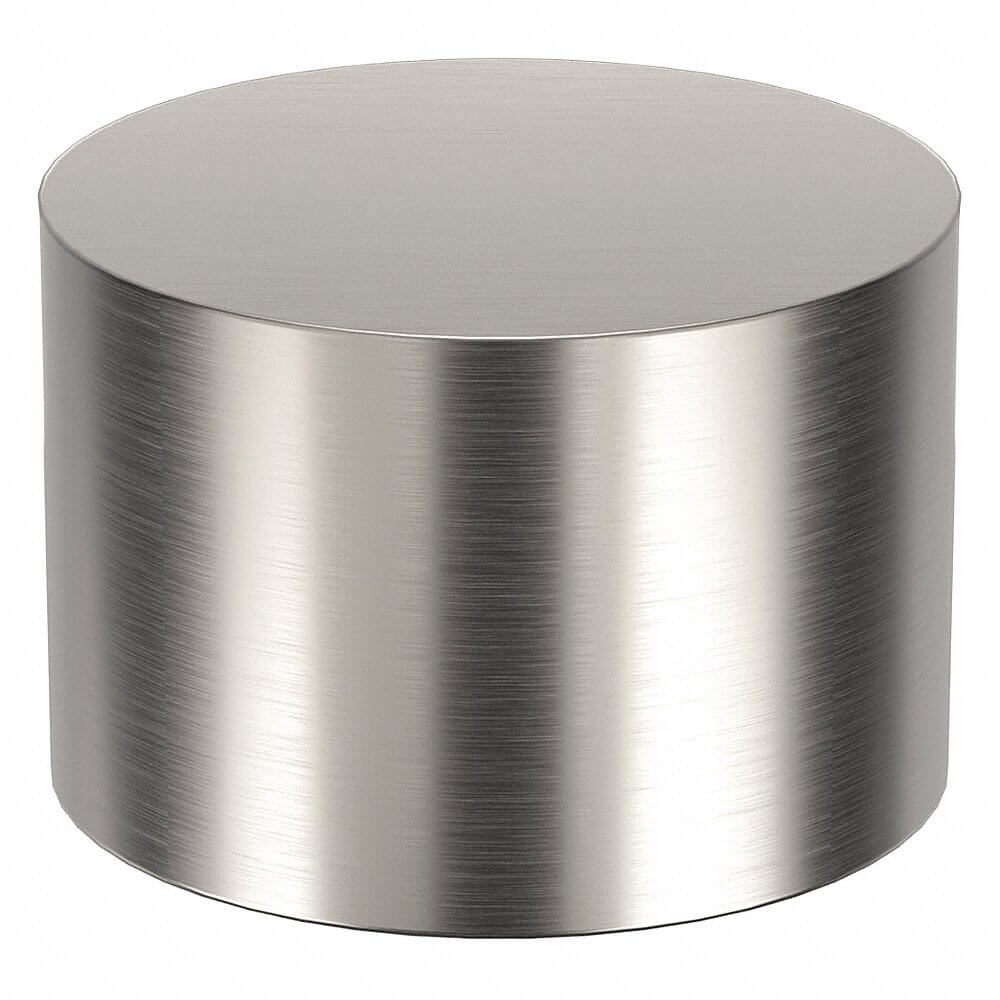

APPROVED VENDOR ZA0250-AL28H

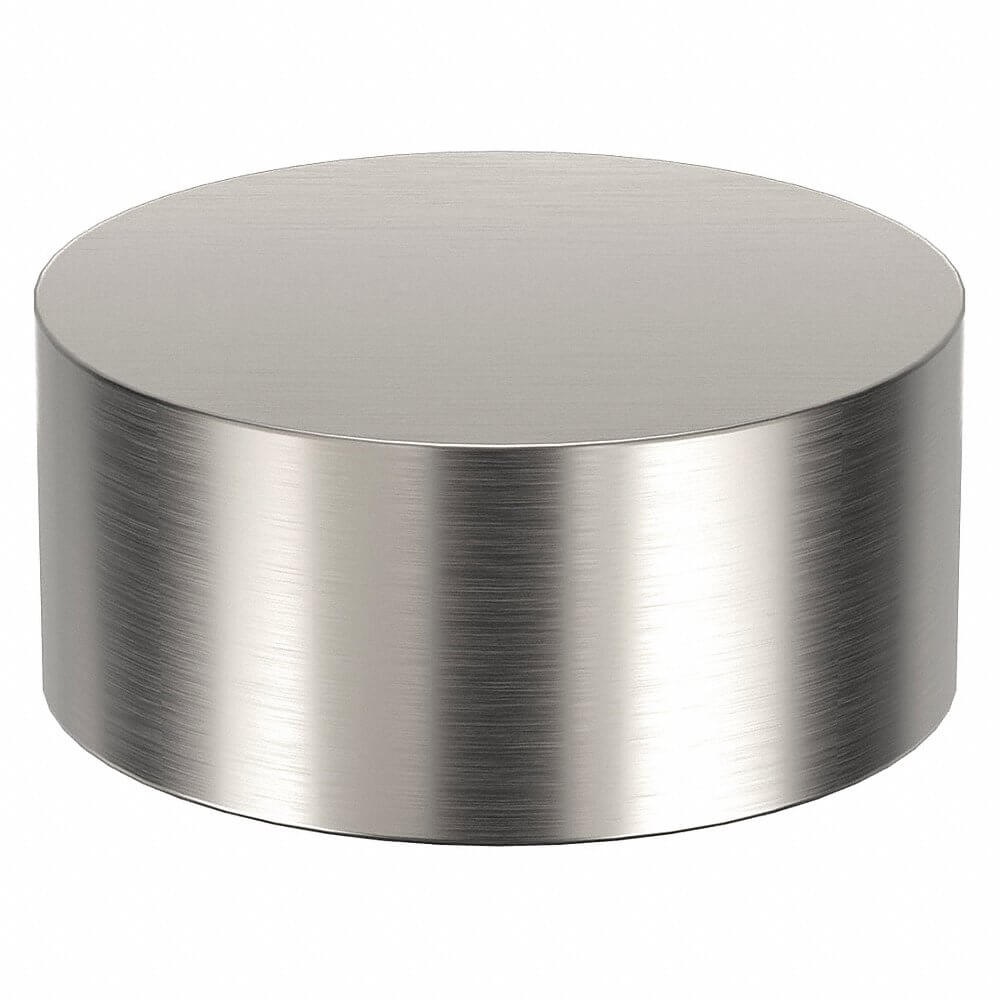

APPROVED VENDOR ZA0252-AL28I

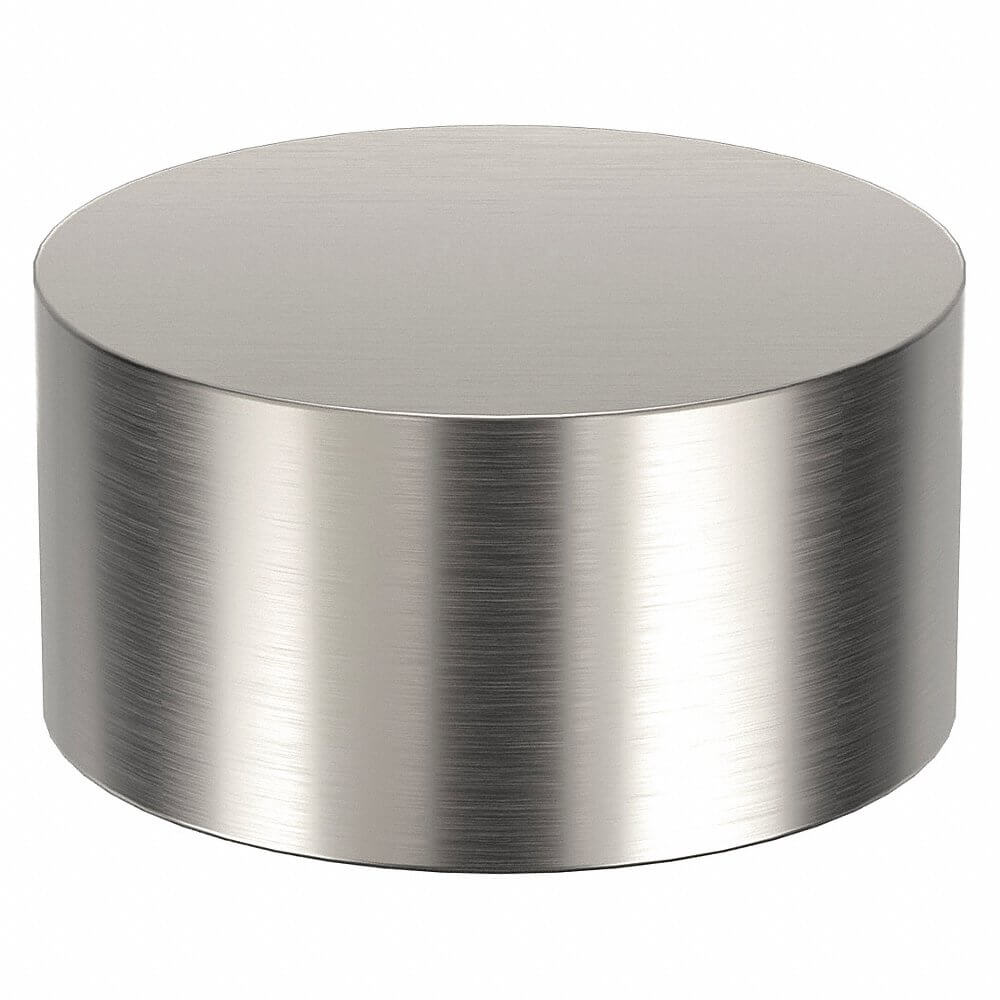

APPROVED VENDOR ZA0253-AL28J

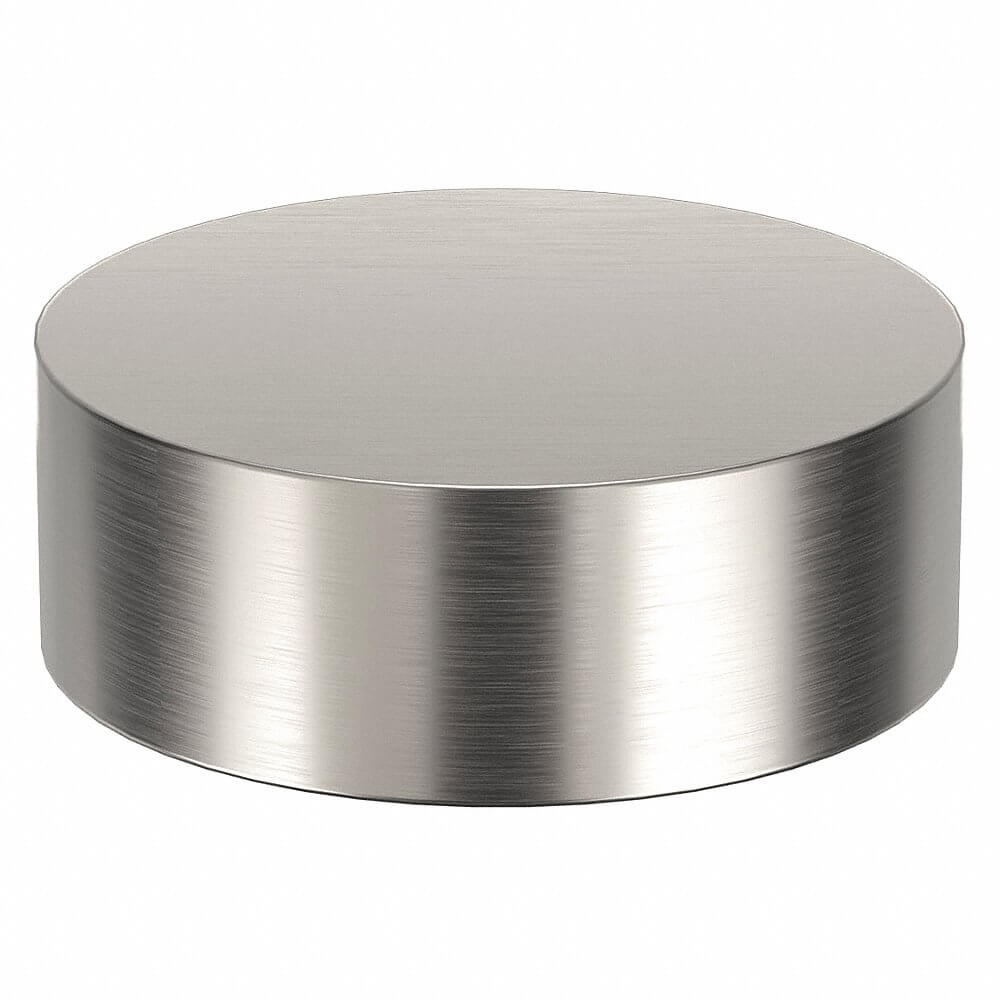

APPROVED VENDOR ZA0255-AL28K

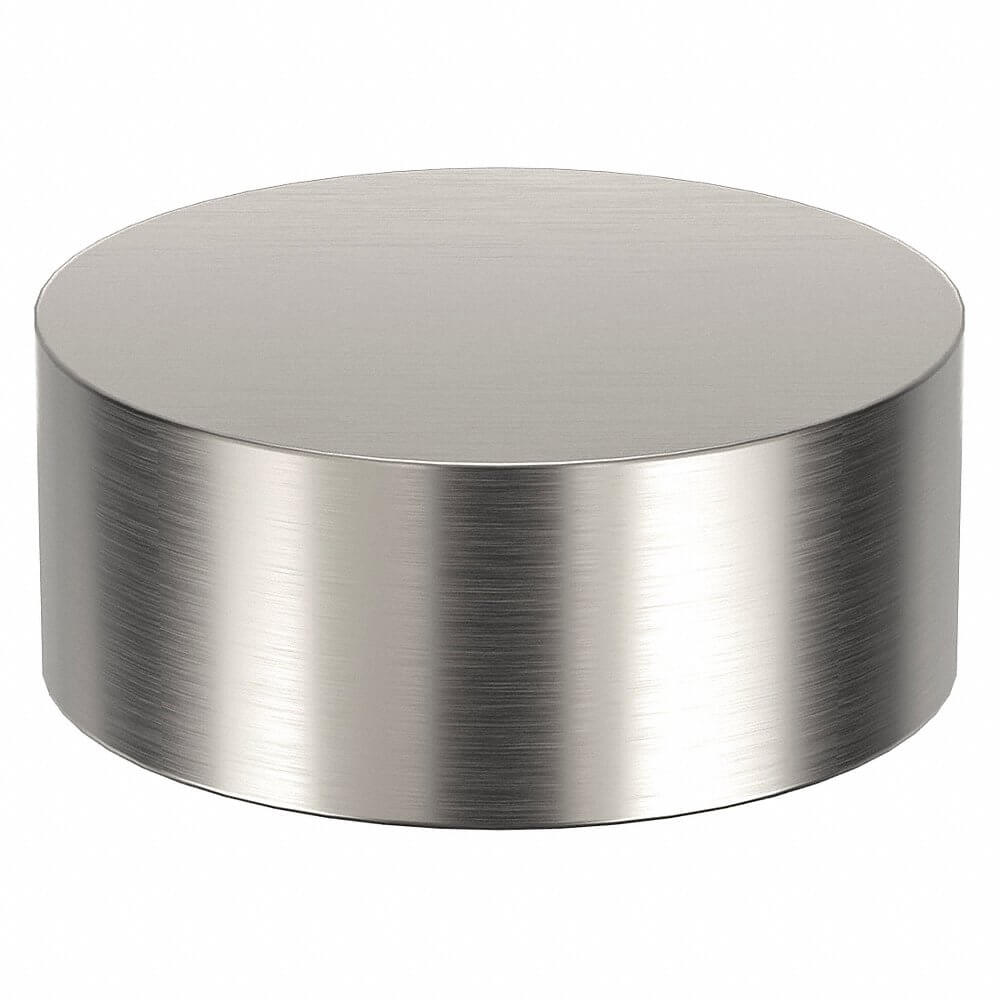

APPROVED VENDOR ZA0256-AL28L

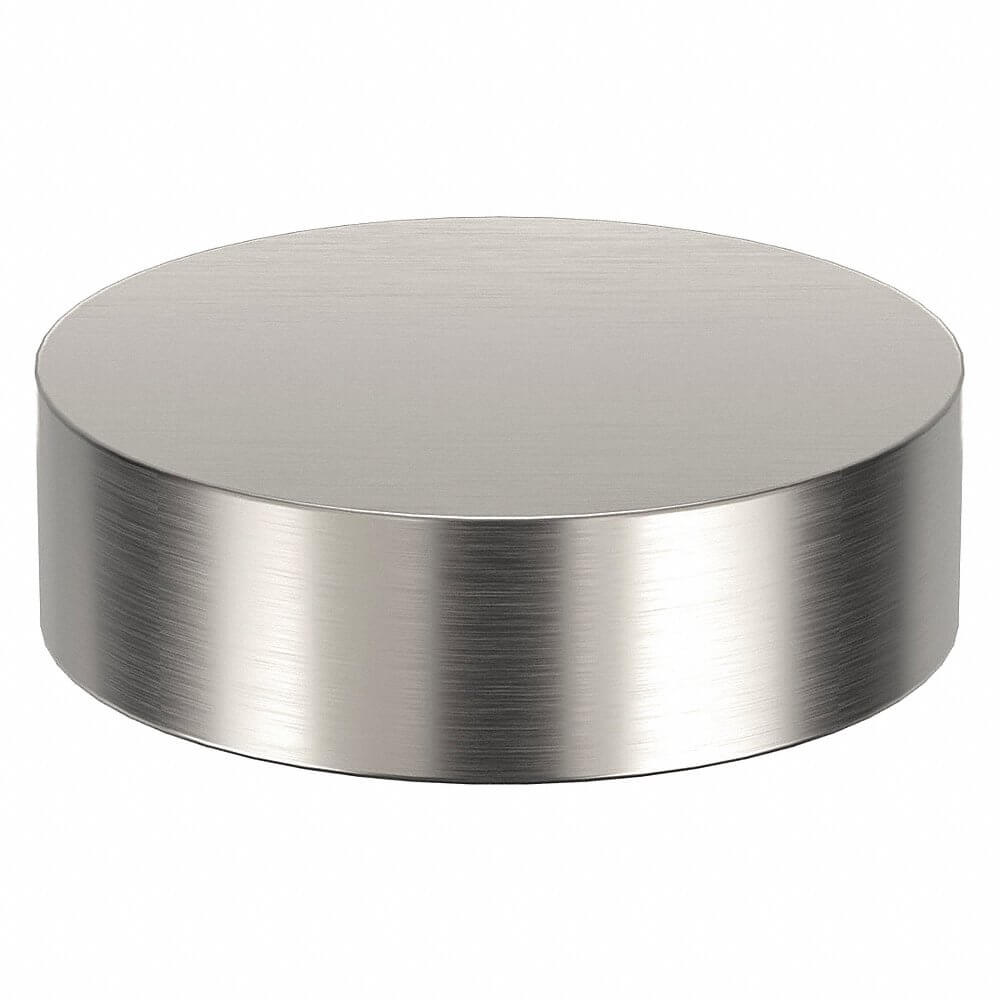

APPROVED VENDOR ZA0260-AL28M

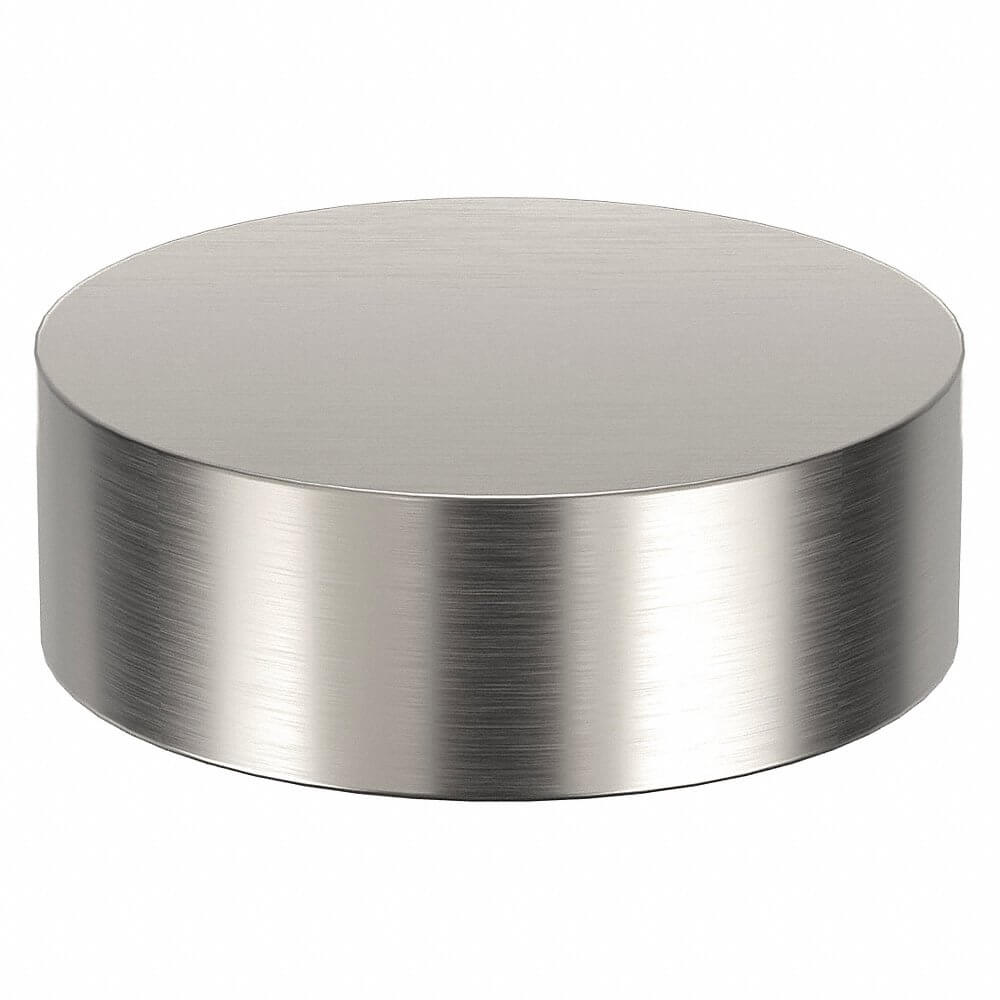

APPROVED VENDOR ZA0261-AL28N
StyleModelThread SizeThread LengthBushing Dia.ShapeDia. ToleranceHeight ToleranceMaterialFinishPricePkg. Qty.
AZA0240-AL28#10-241/2"1/4"Round-0.025" to 0"-0.01" to +0.01"AluminumPlain€22.612
BZA0241-AL28#10-241"3/8"Round-0.025" to 0"-0.01" to +0.01"AluminumPlain€24.912
CZA0243-AL281/4"-201/2"7/16"Round-0.025" to 0"-0.01" to +0.01"AluminumPlain€28.272
DZA0244-AL281/4"-201 1/2"1/2"Round-0.025" to 0"-0.01" to +0.01"AluminumPlain€34.922
EZA0246-AL285/16"-181/2"7/16"Round-0.025" to 0"-0.01" to +0.01"AluminumPlain€39.142
FZA0247-AL285/16"-181 1/2"1/2"Round-0.025" to 0"-0.01" to +0.01"AluminumPlain€44.692
GZA0249-AL285/16"-181/2"7/16"Round-0.025" to 0"-0.01" to +0.01"AluminumPlain€43.752
HZA0250-AL285/16"-181 1/2"1/2"Round-0.025" to 0"-0.01" to +0.01"AluminumPlain€52.032
IZA0252-AL285/16"-181/2"7/16"Round-0.025" to 0"-0.01" to +0.01"AluminumPlain€39.012
JZA0253-AL285/16"-181 1/2"1/2"Round-0.025" to 0"-0.01" to +0.01"AluminumPlain€52.032
KZA0255-AL285/16"-181/2"7/16"Round-0.025" to 0"-0.01" to +0.01"AluminumPlain€52.032
LZA0256-AL285/16"-181 1/2"1/2"Round-0.025" to 0"-0.01" to +0.01"AluminumPlain€59.992
MZA0260-AL285/16"-181/2"7/16"Round-0.025" to 0"-0.01" to +0.01"AluminumPlain€52.032
NZA0261-AL285/16"-181 1/2"1/2"Round-0.025" to 0"-0.01" to +0.01"AluminumPlain€59.992
APPROVED VENDOR -

Polished Stainless Steel Round Standoffs Caps

APPROVED VENDOR ZA0241-SS32A
APPROVED VENDOR ZA0240-SS32B
APPROVED VENDOR ZA0244-SS32C
APPROVED VENDOR ZA0243-SS32D
APPROVED VENDOR ZA0246-SS32E

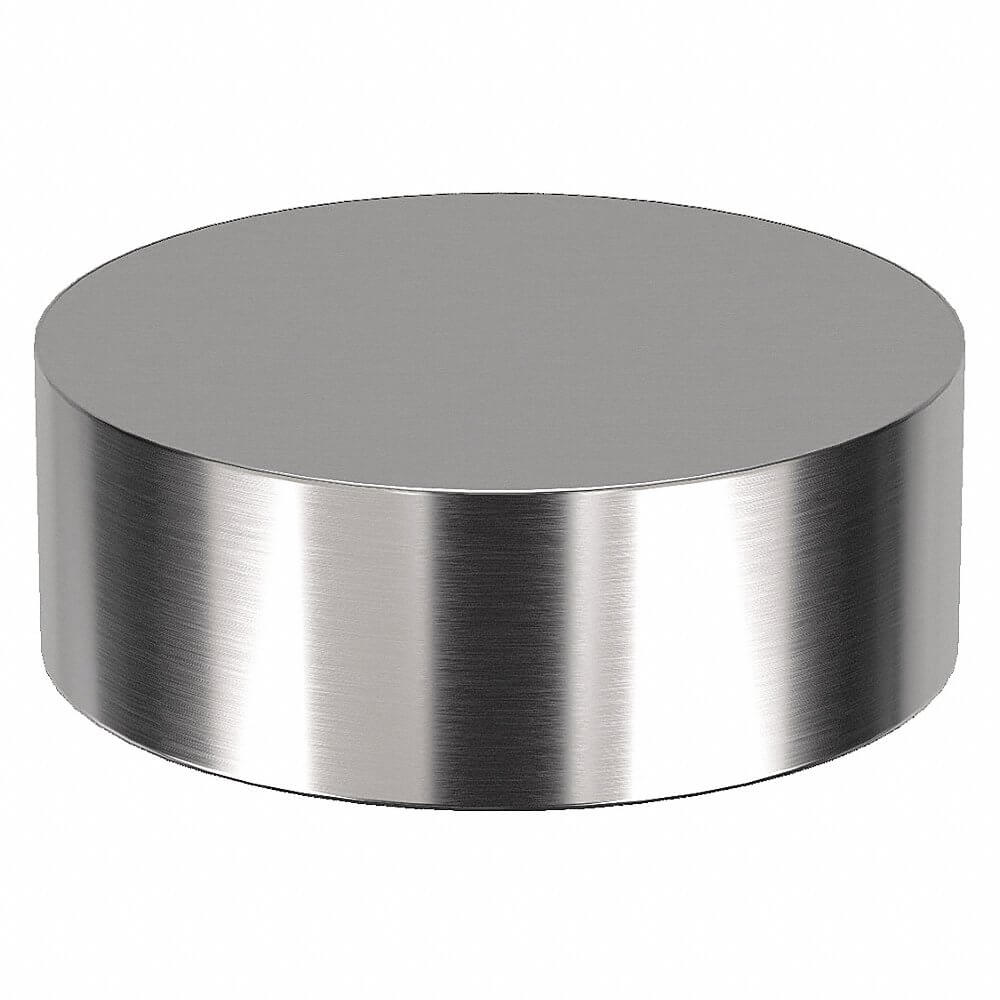

APPROVED VENDOR ZA0255-SS32F
APPROVED VENDOR ZA0247-SS32G

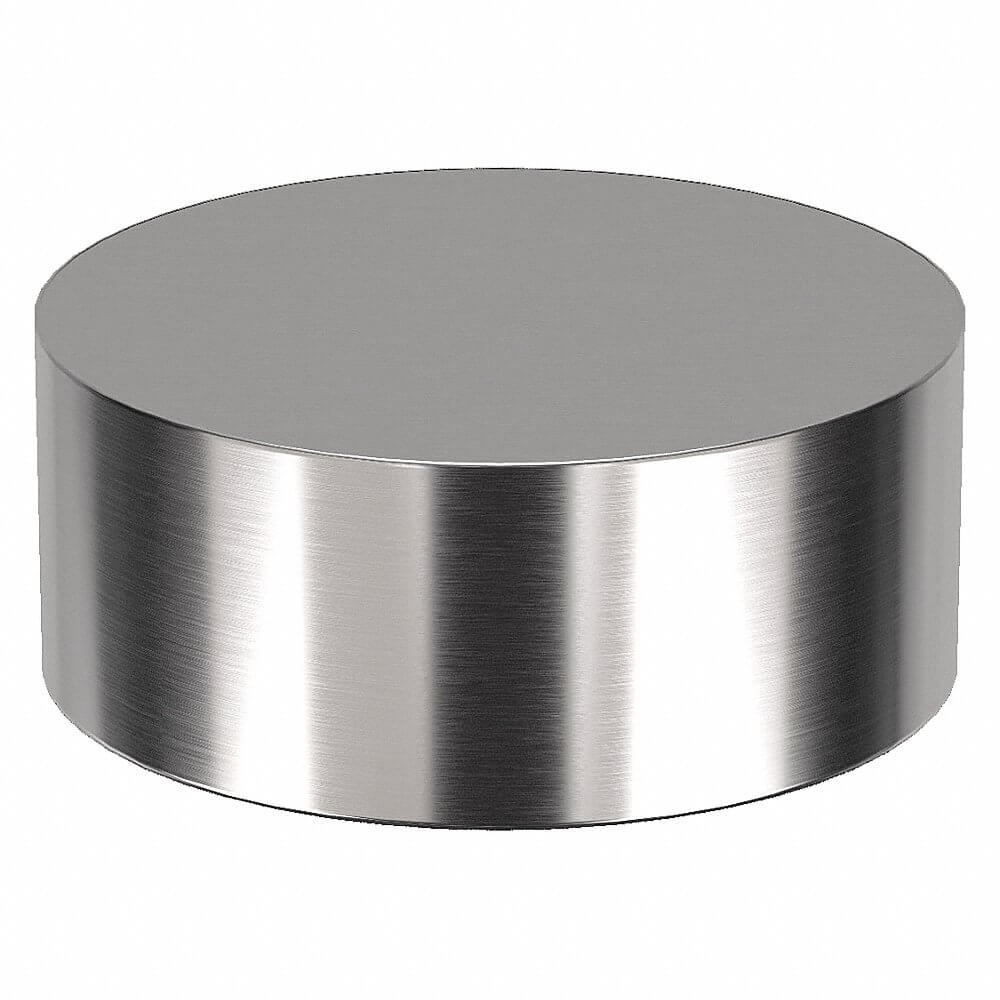

APPROVED VENDOR ZA0256-SS32H
APPROVED VENDOR ZA0249-SS32I

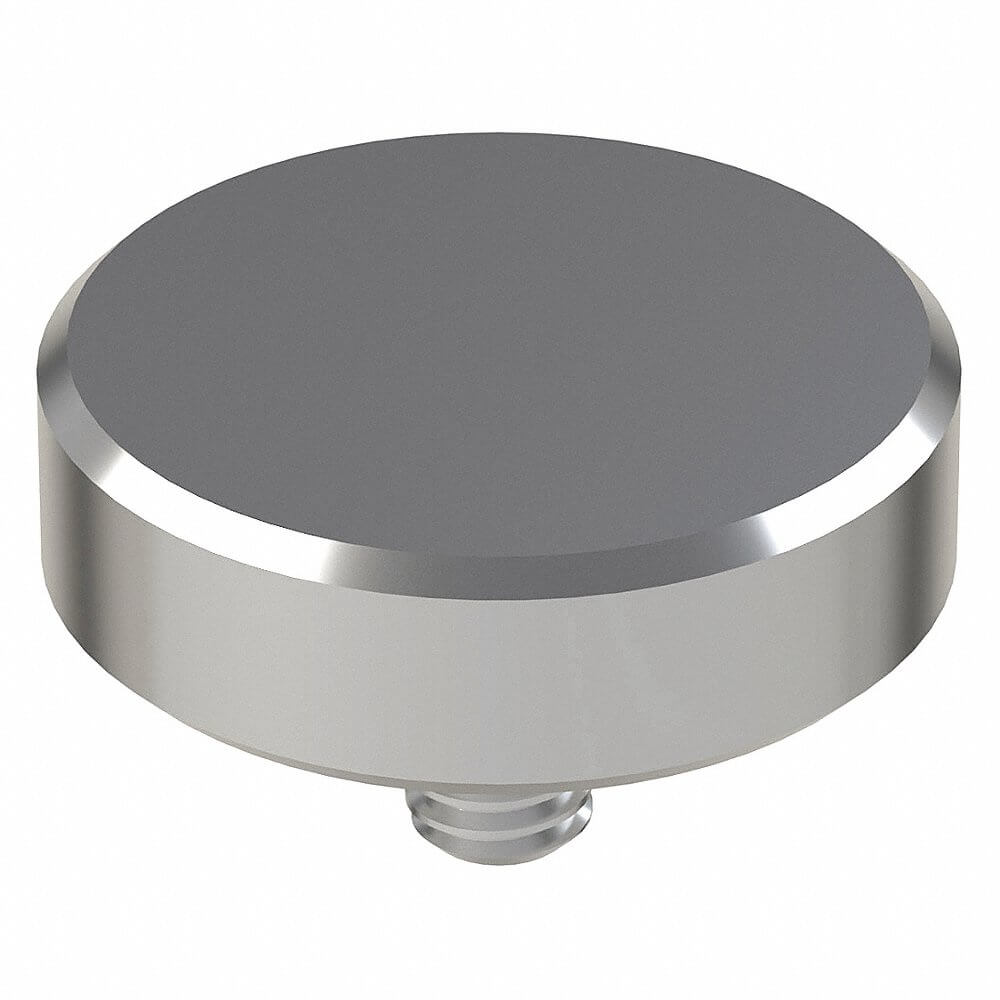

APPROVED VENDOR ZA0260-SS32J

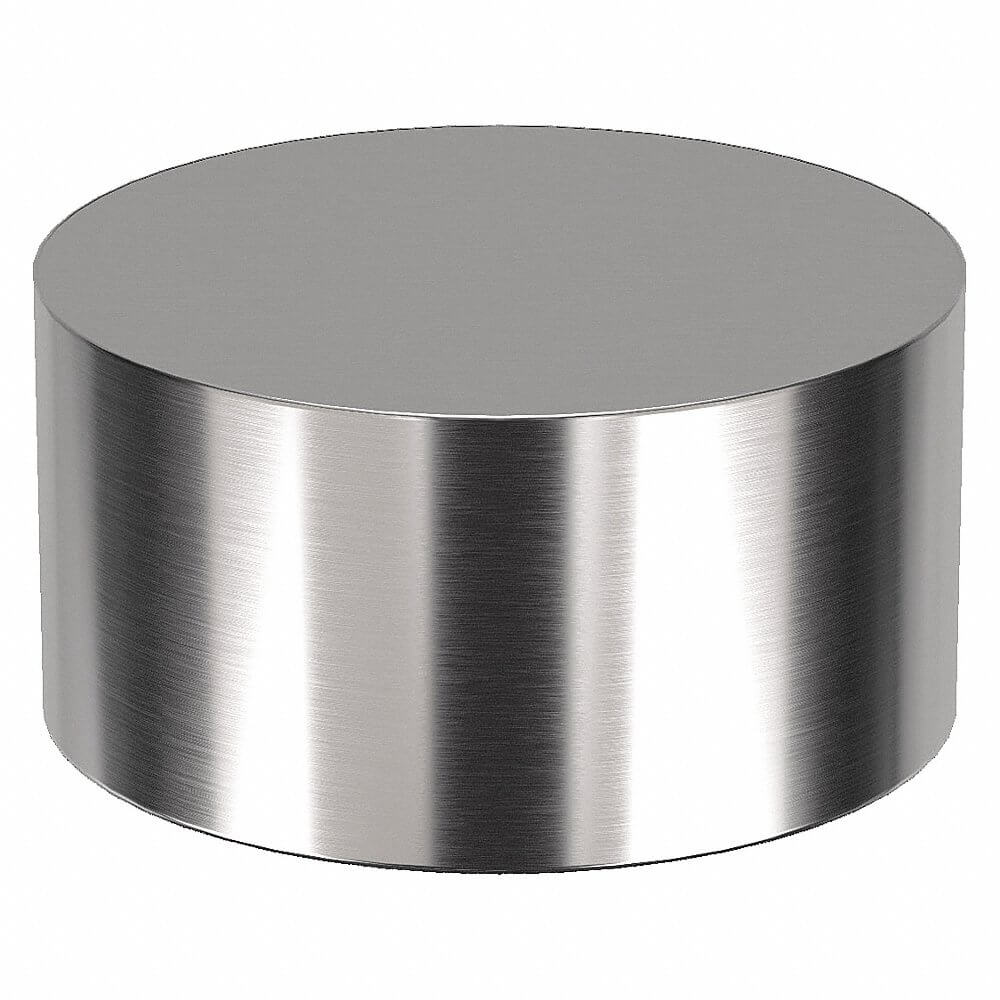

APPROVED VENDOR ZA0253-SS32K
APPROVED VENDOR ZA0250-SS32L

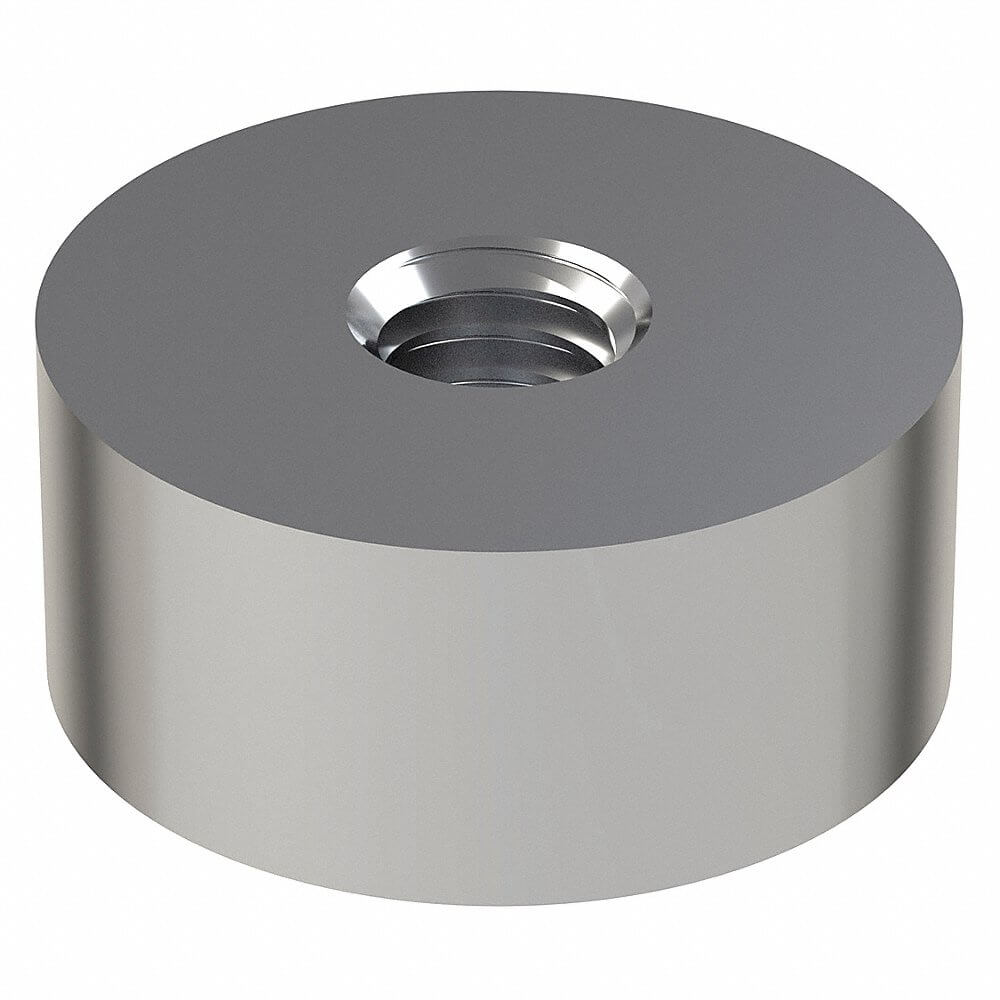

APPROVED VENDOR ZA0252-SS32M

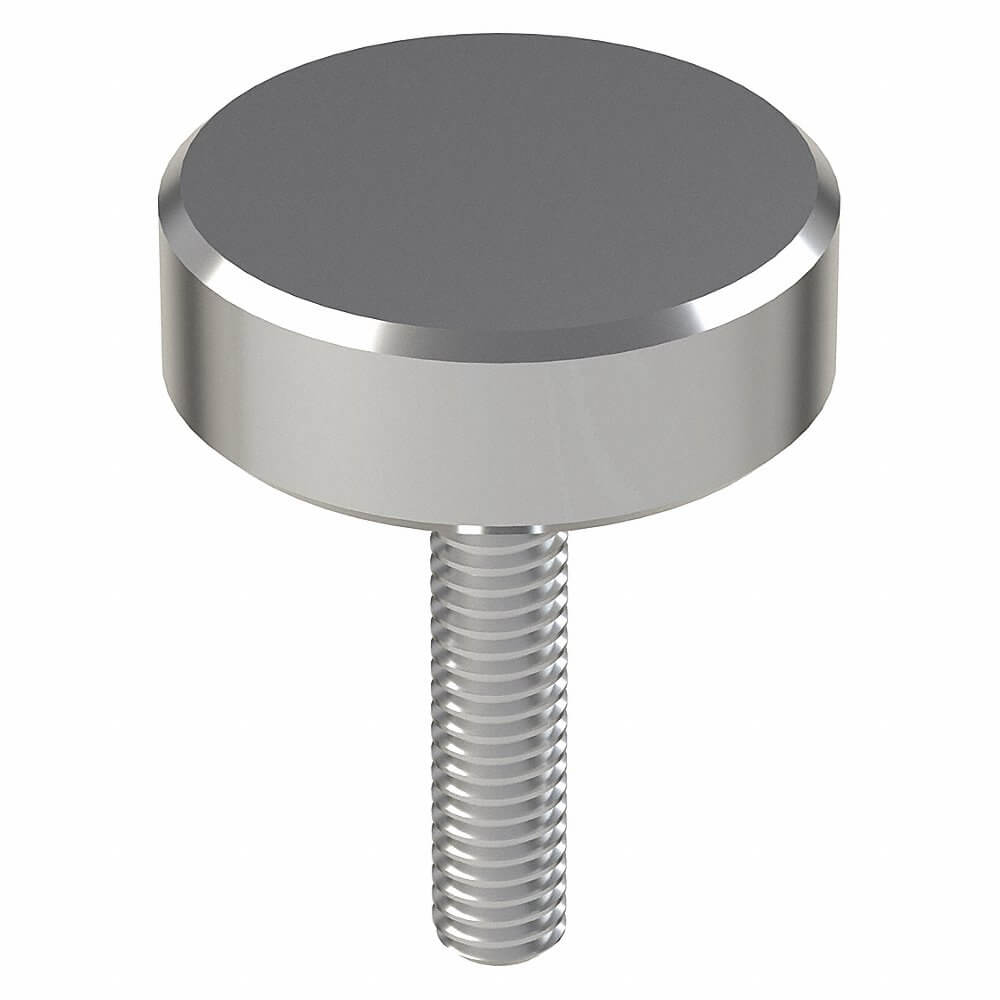

APPROVED VENDOR ZA0261-SS32N
StyleModelThread SizeShapeThread LengthBushing Dia.Dia. ToleranceHeight ToleranceFinishMaterialPricePkg. Qty.
AZA0241-SS32#10-24Round1"3/8"-0.025" to 0"-0.01" to +0.01"PlainStainless Steel€56.162
BZA0240-SS32#10-24Round1/2"1/4"-0.025" to 0"-0.01" to +0.01"PlainStainless Steel€45.352
CZA0244-SS321/4"-20Round1 1/2"1/2"-0.025" to 0"-0.01" to +0.01"PlainStainless Steel€54.292
DZA0243-SS321/4"-20Round1/2"7/16"-0.025" to 0"-0.01" to +0.01"PlainStainless Steel€46.602
EZA0246-SS325/16"-18Round1/2"7/16"-0.025" to 0"-0.01" to +0.01"PlainStainless Steel€49.002
FZA0255-SS325/16"-18Round1/2"7/16"-0.025" to 0"-0.01" to +0.01"PlainStainless Steel€70.702
GZA0247-SS325/16"-18Round1 1/2"1/2"-0.025" to 0"-0.01" to +0.01"PlainStainless Steel€53.052
HZA0256-SS325/16"-18Round1 1/2"1/2"-0.025" to 0"-0.01" to +0.01"PlainStainless Steel€70.702
IZA0249-SS325/16"-18Round1/2"7/16"-0.025" to 0"-0.01" to +0.01"PlainStainless Steel€54.892
JZA0260-SS325/16"-18Round1/2"7/16"-0.025" to 0"-0.01" to +0.01"PlainStainless Steel€78.642
KZA0253-SS325/16"-18Round Spacer1 1/2"1/2"-0.025" to 0"-0.01" to +0.01"PolishStainless Steel€72.032
LZA0250-SS325/16"-18Round1 1/2"1/2"-0.025" to 0"-0.01" to +0.01"PlainStainless Steel€58.782
MZA0252-SS325/16"-18Round1/2"7/16"-0.025" to 0"-0.01" to +0.01"PlainStainless Steel€63.402
NZA0261-SS325/16"-18Round1 1/2"1/2"-0.025" to 0"-0.01" to +0.01"PlainStainless Steel€87.922
APPROVED VENDOR -

Black Anodized Aluminum Round Standoffs Caps

APPROVED VENDOR ZA0240-ALBLKA
APPROVED VENDOR ZA0241-ALBLKB

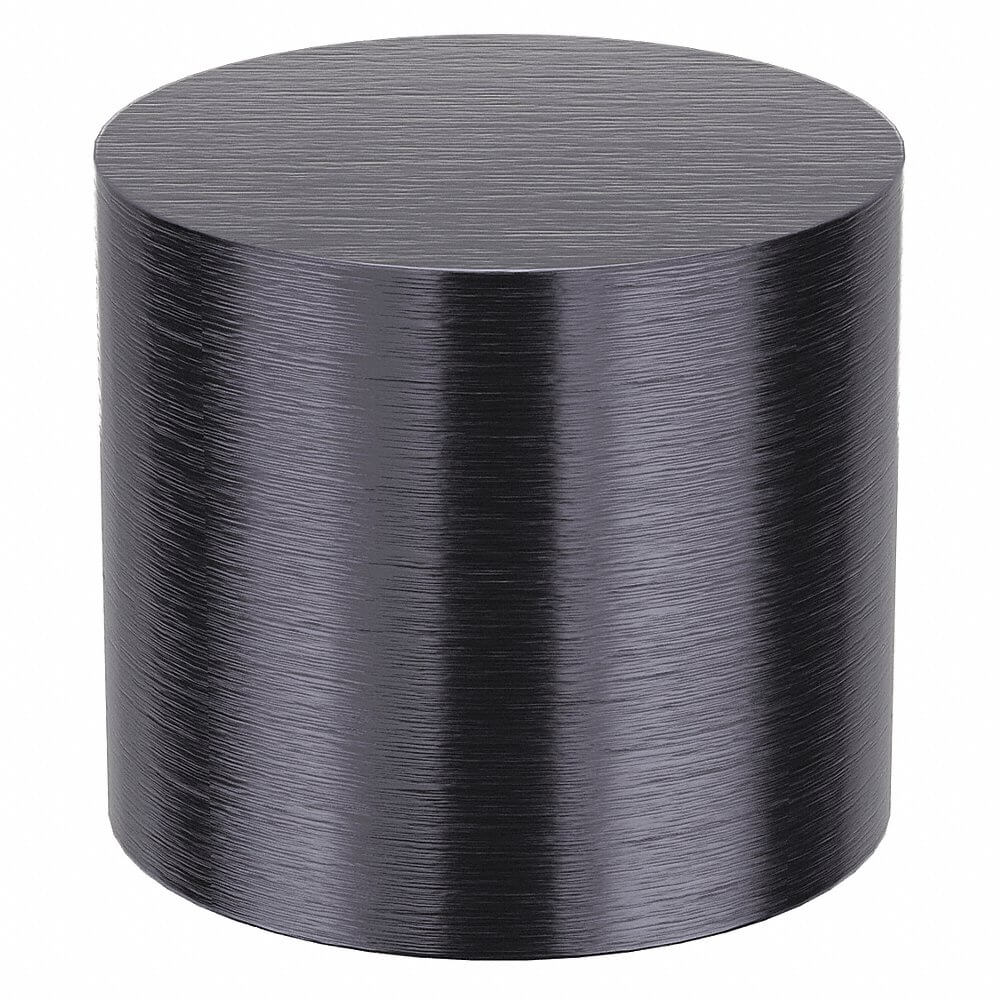

APPROVED VENDOR ZA0243-ALBLKC

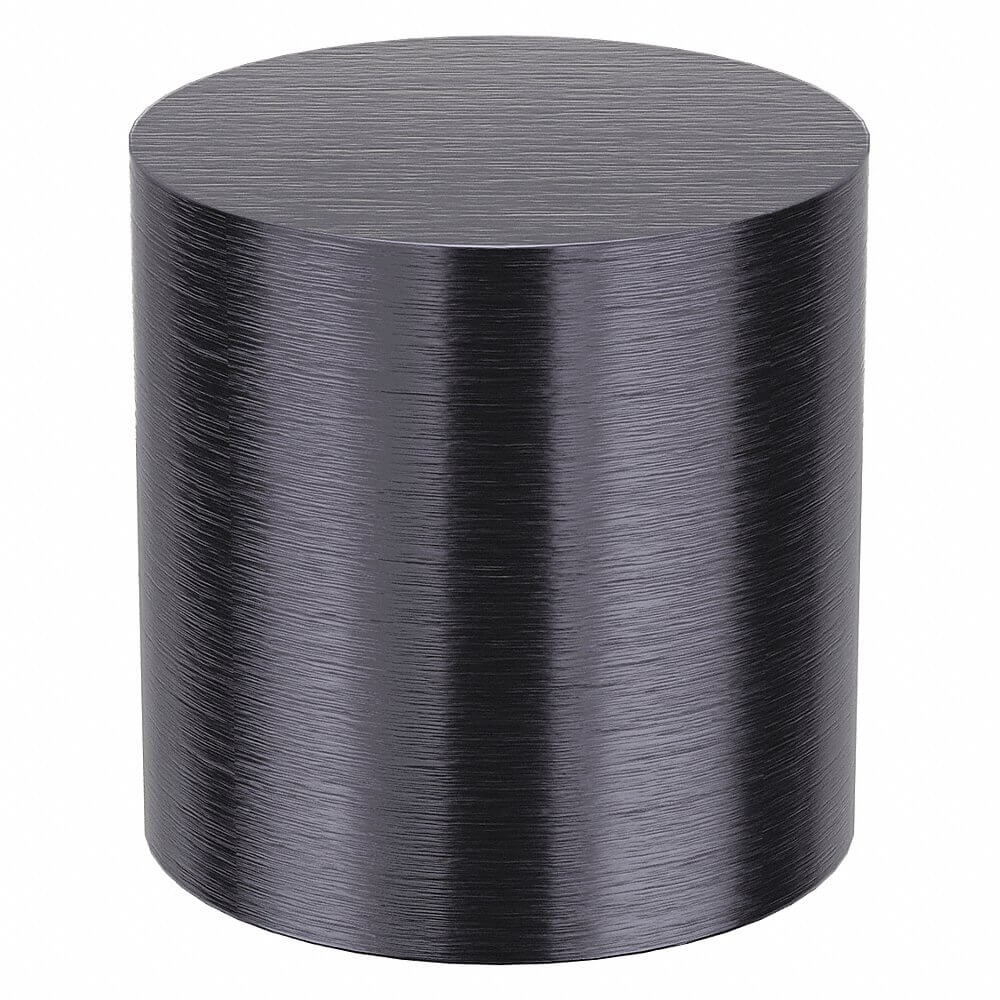

APPROVED VENDOR ZA0244-ALBLKD

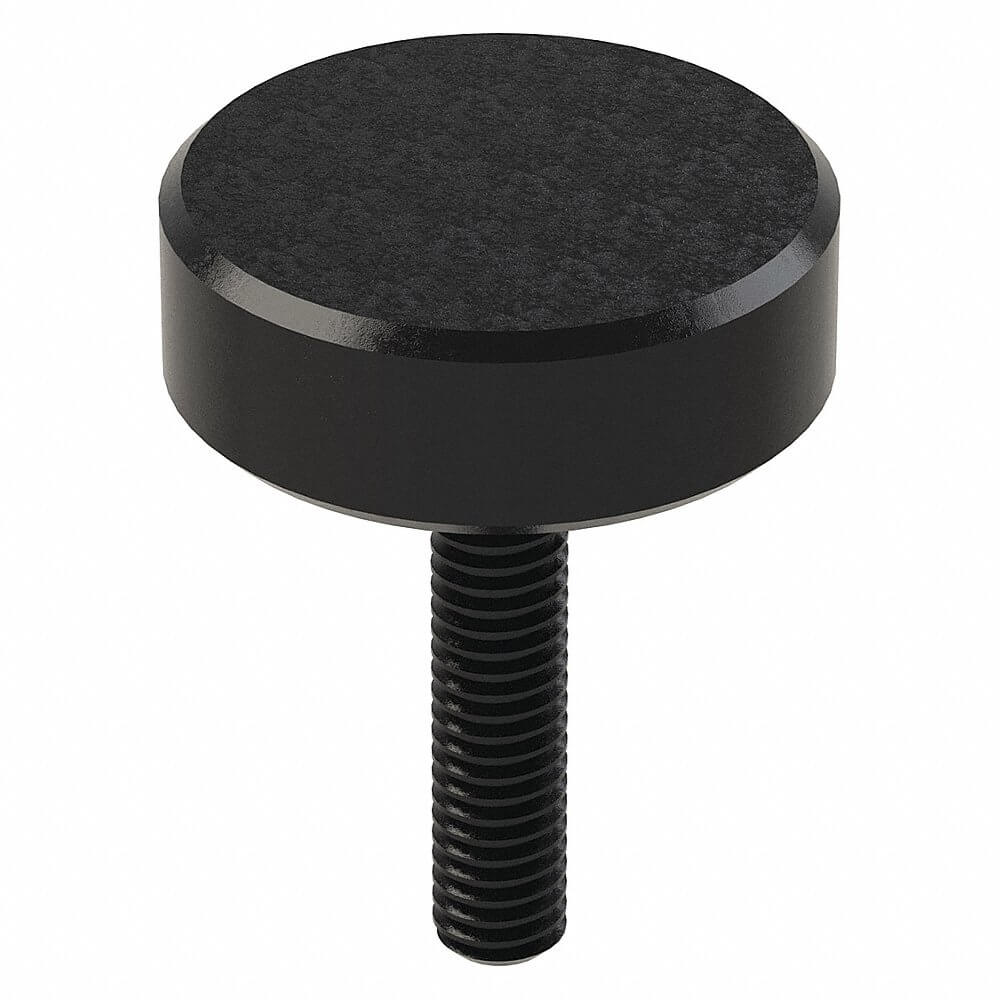

APPROVED VENDOR ZA0261-ALBLKE
APPROVED VENDOR ZA0256-ALBLKF
APPROVED VENDOR ZA0246-ALBLKG

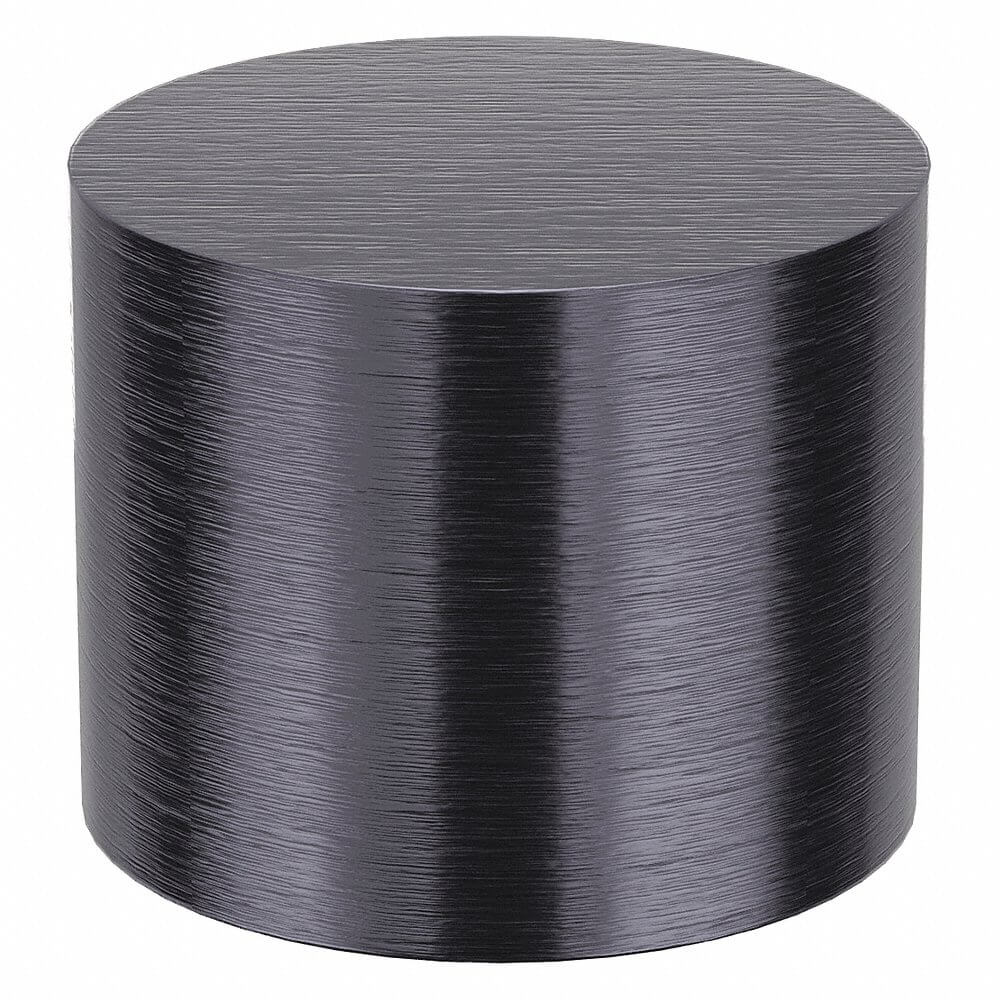

APPROVED VENDOR ZA0247-ALBLKH

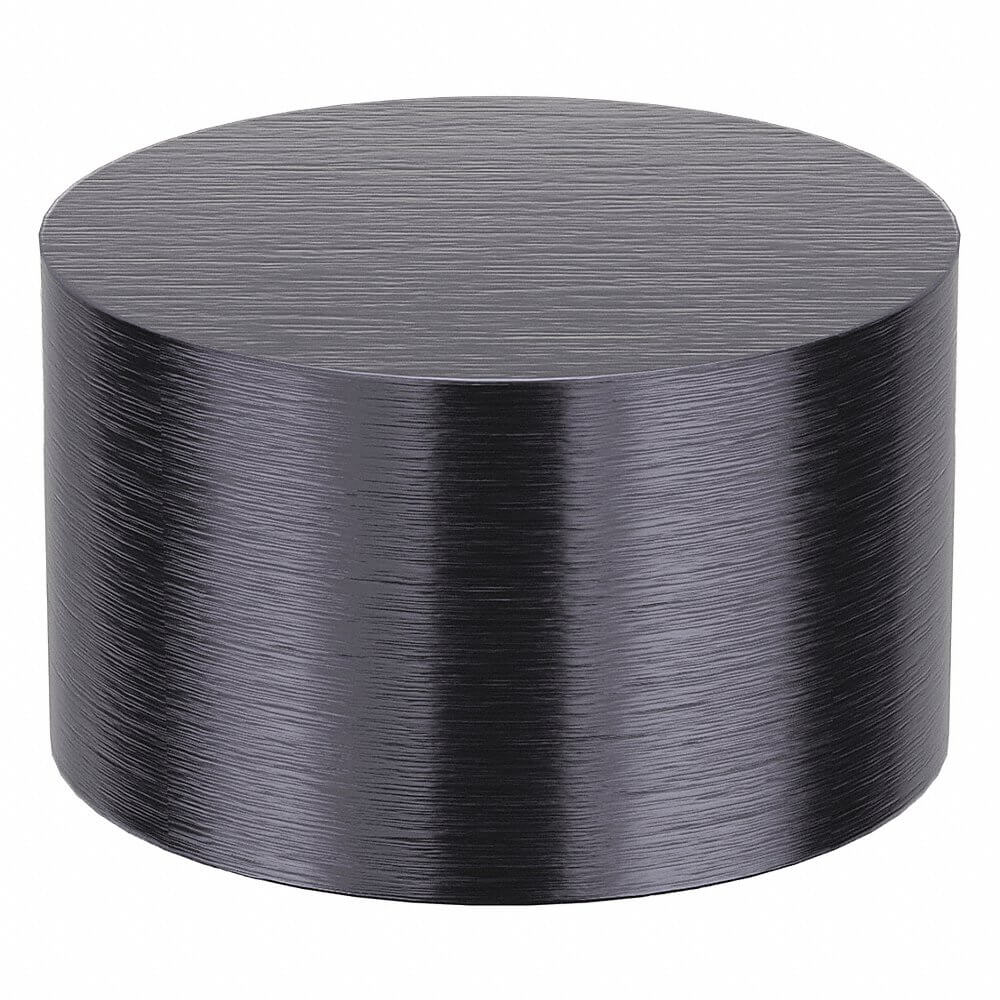

APPROVED VENDOR ZA0249-ALBLKI

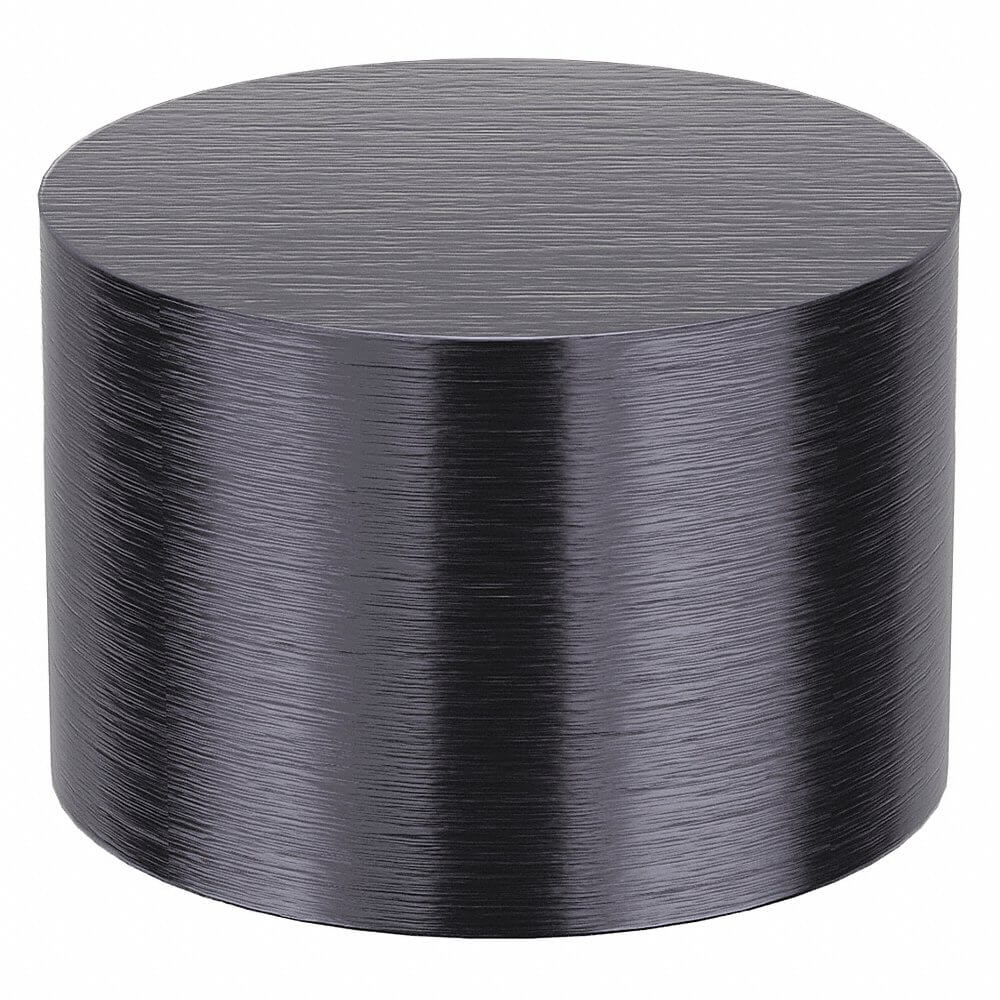

APPROVED VENDOR ZA0250-ALBLKJ

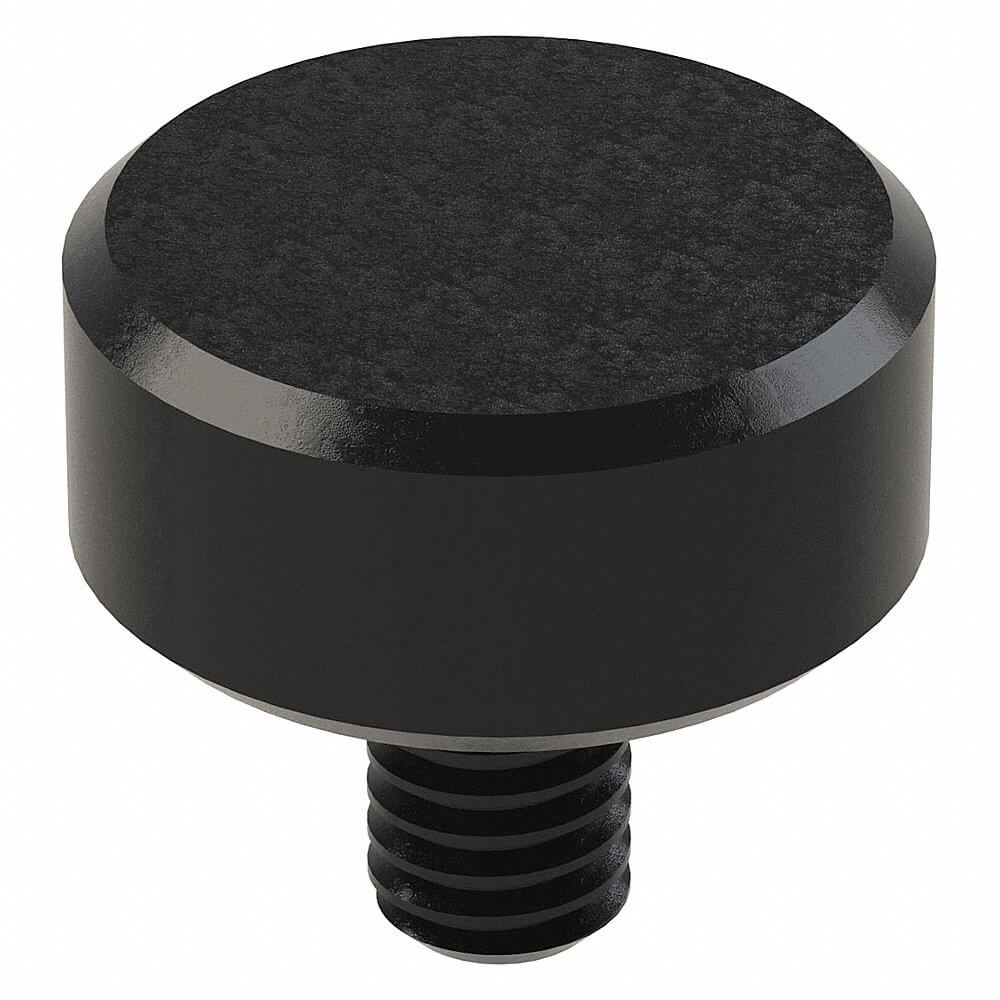

APPROVED VENDOR ZA0252-ALBLKK

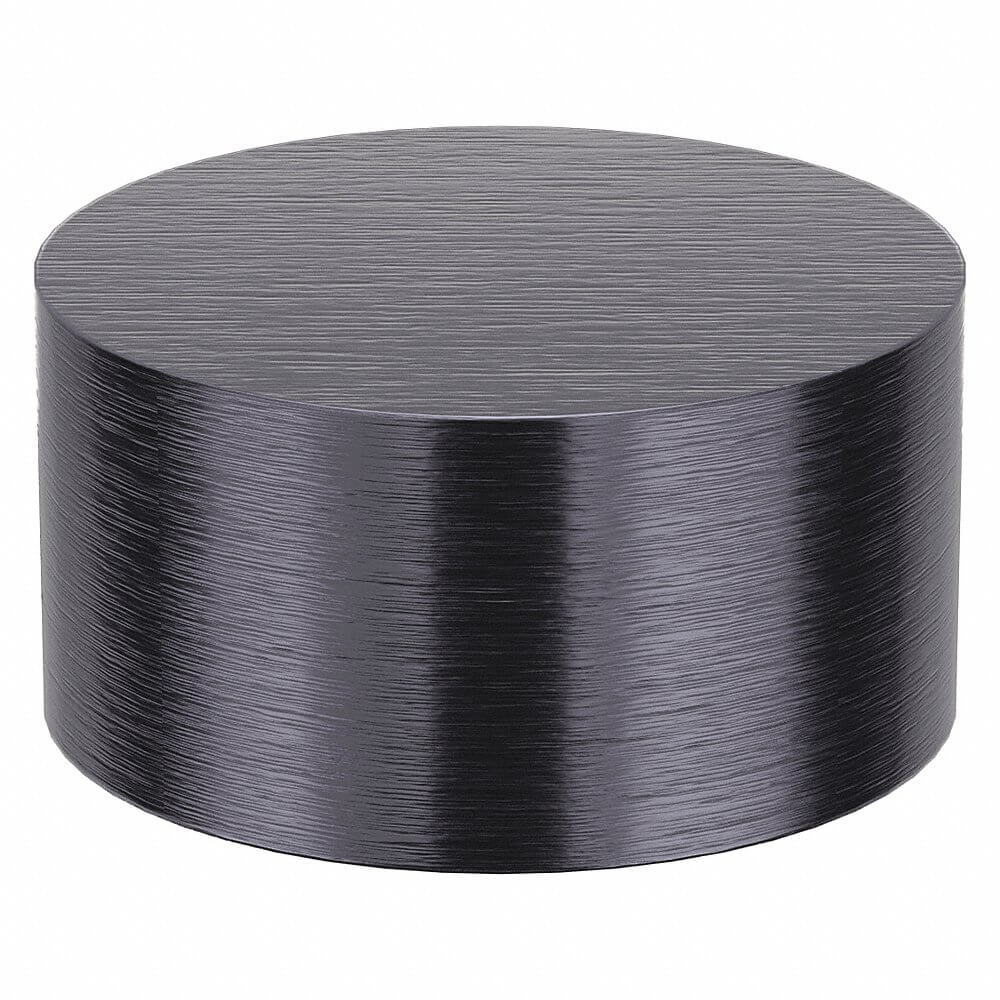

APPROVED VENDOR ZA0253-ALBLKL

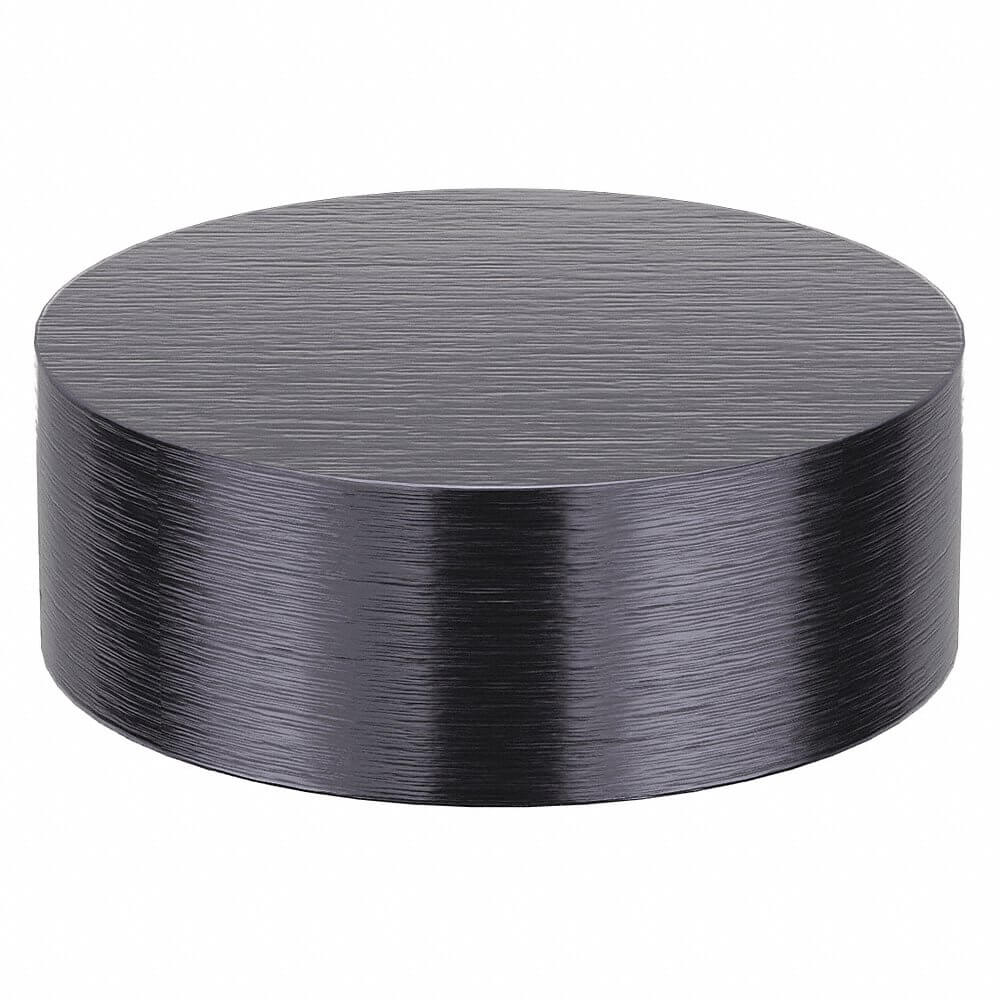

APPROVED VENDOR ZA0255-ALBLKM
APPROVED VENDOR ZA0260-ALBLKN
StyleModelThread SizeThread LengthBushing Dia.ShapeDia. ToleranceHeight ToleranceMaterialFinishPricePkg. Qty.
AZA0240-ALBLK#10-241/2"1/4"Round-0.025" to 0"-0.01" to +0.01"AluminumBlack Anodized€29.172
BZA0241-ALBLK#10-241"3/8"Round-0.025" to 0"-0.01" to +0.01"AluminumBlack Anodized€34.282
CZA0243-ALBLK1/4"-201/2"7/16"Round-0.025" to 0"-0.01" to +0.01"AluminumBlack Anodized€39.142
DZA0244-ALBLK1/4"-201 1/2"1/2"Round-0.025" to 0"-0.01" to +0.01"AluminumBlack Anodized€39.262
EZA0261-ALBLK5/16"-181 1/2"1/2"Round-0.025" to 0"-0.01" to +0.01"AluminumBlack Anodized€61.692
FZA0256-ALBLK5/16"-181 1/2"1/2"Round-0.025" to 0"-0.01" to +0.01"AluminumBlack Anodized€61.692
GZA0246-ALBLK5/16"-181/2"7/16"Round-0.025" to 0"-0.01" to +0.01"AluminumBlack Anodized€47.412
HZA0247-ALBLK5/16"-181 1/2"1/2"Round-0.025" to 0"-0.01" to +0.01"AluminumBlack Anodized€51.392
IZA0249-ALBLK5/16"-181/2"7/16"Round-0.025" to 0"-0.01" to +0.01"AluminumBlack Anodized€47.162
JZA0250-ALBLK5/16"-181 1/2"1/2"Round-0.025" to 0"-0.01" to +0.01"AluminumBlack Anodized€59.992
KZA0252-ALBLK5/16"-181/2"7/16"Round-0.025" to 0"-0.01" to +0.01"AluminumBlack Anodized€52.032
LZA0253-ALBLK5/16"-181 1/2"1/2"Round-0.025" to 0"-0.01" to +0.01"AluminumBlack Anodized€59.992
MZA0255-ALBLK5/16"-181/2"7/16"Round-0.025" to 0"-0.01" to +0.01"AluminumBlack Anodized€59.992
NZA0260-ALBLK5/16"-181/2"7/16"Round-0.025" to 0"-0.01" to +0.01"AluminumBlack Anodized€54.392
APPROVED VENDOR -

Brushed Stainless Steel Round Standoffs Caps

APPROVED VENDOR ZA0241-SS32DA
StyleModelThread SizeThread LengthBushing Dia.ShapeDia. ToleranceHeight ToleranceMaterialFinishPricePkg. Qty.
AZA0241-SS32D#10-241"3/8"Round-0.025" to 0"-0.01" to +0.01"Stainless SteelSatin€54.292

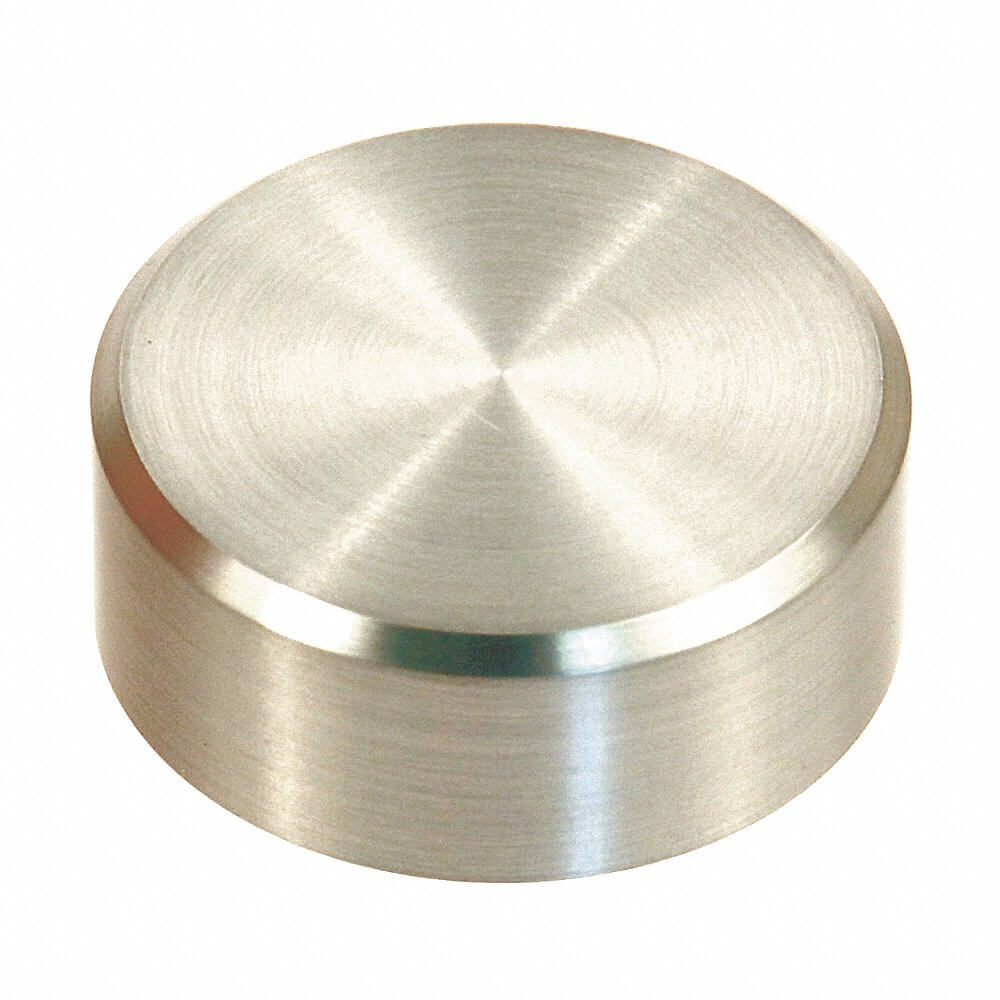

AZA0240-SS32D#10-241/2"1/4"Round-0.025" to 0"-0.01" to +0.01"Stainless SteelSatin€46.302
AZA0243-SS32D1/4"-201/2"7/16"Round-0.025" to 0"-0.01" to +0.01"Stainless SteelSatin€49.002
AZA0244-SS32D1/4"-201 1/2"1/2"Round-0.025" to 0"-0.01" to +0.01"Stainless SteelSatin€56.342
AZA0249-SS32D5/16"-181/2"7/16"Round-0.025" to 0"-0.01" to +0.01"Stainless SteelSatin€55.832
AZA0256-SS32D5/16"-181 1/2"1/2"Round-0.025" to 0"-0.01" to +0.01"Stainless SteelSatin€74.722
AZA0250-SS32D5/16"-181 1/2"1/2"Round-0.025" to 0"-0.01" to +0.01"Stainless SteelSatin€60.862
AZA0260-SS32D5/16"-181/2"7/16"Round-0.025" to 0"-0.01" to +0.01"Stainless SteelSatin€85.642
AZA0252-SS32D5/16"-181/2"7/16"Round-0.025" to 0"-0.01" to +0.01"Stainless SteelSatin€64.662
AZA0261-SS32D5/16"-181 1/2"1/2"Round-0.025" to 0"-0.01" to +0.01"Stainless SteelSatin€83.102
AZA0247-SS32D5/16"-181 1/2"1/2"Round-0.025" to 0"-0.01" to +0.01"Stainless SteelSatin€55.912
AZA0255-SS32D5/16"-181/2"7/16"Round-0.025" to 0"-0.01" to +0.01"Stainless SteelSatin€76.782
AZA0246-SS32D5/16"-181/2"7/16"Round-0.025" to 0"-0.01" to +0.01"Stainless SteelSatin€49.862
AZA0253-SS32D5/16"-181 1/2"1/2"Round-0.025" to 0"-0.01" to +0.01"Stainless SteelSatin€70.702

Round Standoffs Caps

Round standoff caps protect the loose ends of female-female round standoffs and provide a finished appearance, as well as keep out the ingress of debris. The female-female round standoffs are threaded fasteners with female threads on both ends, designed to join male-threaded items. The caps are installed on one side of these standoffs for proper installation & finished appearance. These caps are used when installing artwork, awards, photographs, door hardware, signs and other decorative objects. The standoff is mounted to a surface using the anchor. The material should be placed at the proper distance from the surface by the standoff barrel. The round standoff caps, which serve as the ornamental cap to the mounting arrangement, are then sandwiched between the material and the threaded stud.

Frequently Asked Questions

How to install a standoff cap and barrel system?

  • Determine the weight, thickness and overall dimension of the mounting material. The requirement of the length of the threaded stud depends on the material's thickness.
  • Using the holes in the material as a template, pencil in drill marks on the mounting surface and drill the anchor holes.
  • Install the chosen anchor, leaving enough external threading to connect the barrel to the exposed end.
  • The chosen barrels should be threaded onto the anchor and then hand-tightened.
  • Insert the appropriate-sized stud into the barrel. The stud size is decided by the thickness of the to-be-mounted material as well as the cap & barrel combination.
  • Fasten the caps over the material and thread them into studs.
  • Then place the material over the exposed studs.

What tools are included to install a standoff system?

  • Anchor (Nylon anchor is not meant for wood applications)
  • Combination screw
  • Barrel
  • Threaded stud
  • Cap
