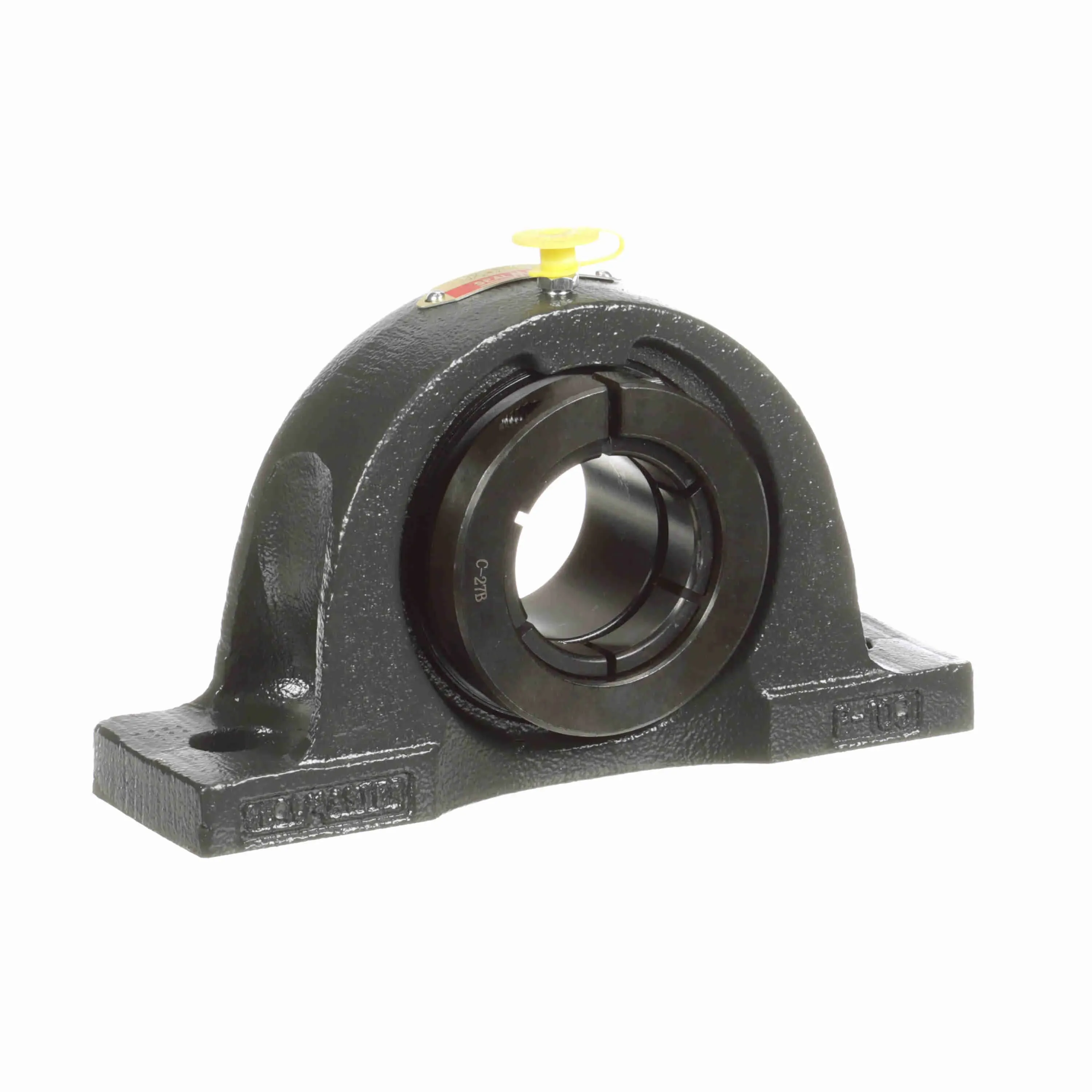

SEALMASTER NPL-27TC 705882 Pillow Block Bearing, 2 Bolt, 1.68 Inch Bore, Concentric Collar Mount
Get it by Wednesday, Jul 1
€268.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 7 1/2" |
| Base To Center Height | 2.06" |
| Base Width | 2.13" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 1/2" |
| Bore Dia. | 1 11/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.31" |
| Dynamic Load Capacity | 7901 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.63" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt, Low Base |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-111TC |
| Inside Ring Outside Dia. | 2.063" |
| Length Through Bore | 2" |
| Locking Collar Outside Dia. | 2.94" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Bolt Spacing | 6.06" |
| Max. Operating Temp. | 220°F |
| Max. Speed | 3800 RPM |
| Min. Bolt Spacing | 5 11/25" |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 4.19" |
| Overall Length | 7 1/2" |
| Overall Width | 2.13" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Setscrew Torque | 240 lbs.-in. |
| Shaft Locking Type | Concentric |
| Size Code | 2-111 |
| Static Load Rating | 5139 lbs. |
| Vibration Frequency Fundamental Train | 0.0067 cPS |
| Vibration Frequency Inner Ring Defect | 0.0994 cPS |
| Vibration Frequency Outer Ring Defect | 0.0673 cPS |
| Vibration Frequency Roller Spin | 0.0417 cPS |
Shipping Info:
| Ship weight (kg) | 3.08 |
| Ship height (cm) | 5.41 |
| Ship length (cm) | 13.18 |
| Ship width (cm) | 19.84 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Height | Overall Length | Bearing Insert Type | Shaft Locking Type | Bearing Insert Material | Bore Dia. | Overall Width | Mounting Bolt Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NPL-46 | 6.437" | 12" | Radial Ball | Set Screw | Alloy, Steel | 2 7/8" | 3 3/8" | 3/4" | €6,412.04 | |
 |
NPL-10 DBB | 2.31" | 5" | Standard Duty | Set Screw | Steel | 5/8" | 1 1/2" | - | €129.83 | |
 |
NPL-206TM | - | - | - | - | - | - | - | - | €195.95 | |
|
NPL-21 | 3.687" | 6.562" | Radial Ball | Set Screw | Alloy, Steel | 1 5/16" | 1 7/8" | 1/2" | €855.72 | |
 |
NPL-11 | 2.31" | 5" | Standard Duty | Set Screw | Steel | 11/16" | 1 1/2" | - | €165.07 | |
 |
NPL-10 | 2.31" | 5" | Standard Duty | Set Screw | Steel | 5/8" | 1 1/2" | 3/8" | €334.52 | |
 |
NPL-8 | 2.31" | 5" | Standard Duty | Set Screw | Steel | 1/2" | 1 1/2" | - | €373.09 |
