SEALMASTER NPL-46 707771 Pillow Block Bearing, 2 7/8 Inch Bore, Cast Iron, Set Screws, 3 5/16 Inch Shaft Ht
Get it by Tuesday, Apr 14
5.00% off
€6,091.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bore Diameter | 2 7/8" |
| Closure | Double Sealed |
| Dynamic Radial Load Capacity | 14839 lbf. |
| Housing Material | Cast Iron |
| Housing Material Finish | Black Oxide |
| Htc | 8483.20.8040 |
| Lubricant Material | Ngli #2 Equivalent |
| Maximum Misalignment Angle | 2° |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Mount Hole Center-to-center Length | 9 1/2" |
| Mount Type | Bolt Through |
| Mounting Bolt Size | 3/4" |
| Mounting Surface To Shaft Center Height | 3 5/16" |
| Number Of Mount Holes | 2 |
| Overall Height | 6.437" |
| Overall Length | 12" |
| Overall Width | 3 3/8" |
| Seal Material | Felt |
| Shaft Locking Type | Set Screws |
| Static Radial Load Capacity | 11224 lbf. |
Shipping Info:
| Ship weight (kg) | 11 |
| Ship height (cm) | 18.11 |
| Ship length (cm) | 31.45 |
| Ship width (cm) | 9.04 |
| Country of Origin | US |
Product Variants
| Product | Model | Bearing Insert Type | Shaft Locking Type | Bearing Insert Material | Overall Length | Overall Width | Overall Height | Bore Dia. | Mount Hole Center-to-center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NPL-10 DBB | Standard Duty | Set Screw | Steel | 5" | 1 1/2" | 2.31" | 5/8" | - | €129.83 | |
 |
NPL-206TM | - | - | - | - | - | - | - | - | €195.95 | |
|
NPL-21 | Radial Ball | Set Screws | Alloy Steel | 6.562" | 1 7/8" | 3.687" | - | 5 19/64" | €916.84 | |
 |
NPL-11 | Standard Duty | Set Screw | Steel | 5" | 1 1/2" | 2.31" | 11/16" | - | €165.07 | |
 |
NPL-10 | Standard Duty | Set Screw | Steel | 5" | 1 1/2" | 2.31" | 5/8" | 4 1/8" | €334.52 | |
 |
NPL-8 | Standard Duty | Set Screw | Steel | 5" | 1 1/2" | 2.31" | 1/2" | - | €373.09 | |
 |

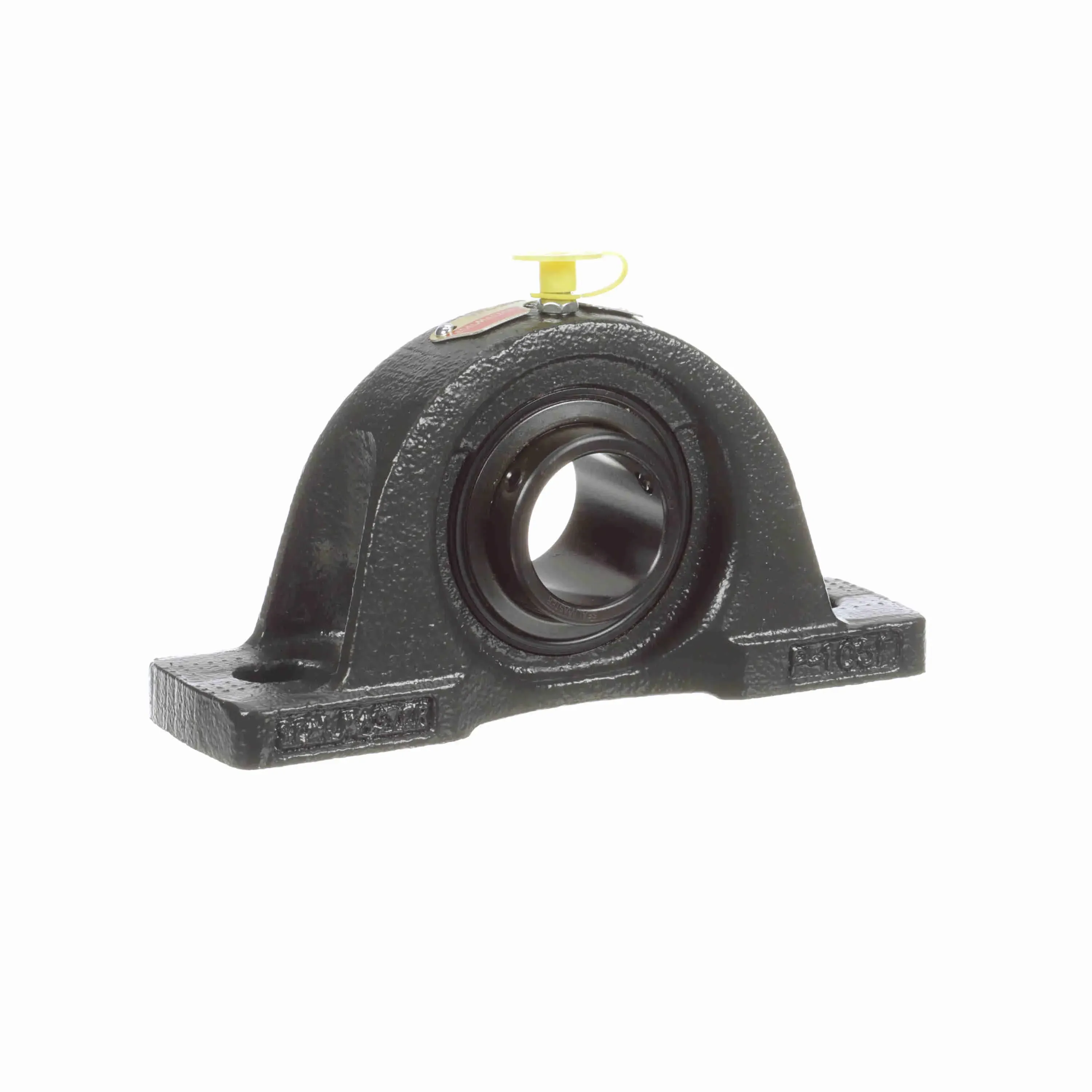

NPL-20R | Standard Duty | Set Screw | Steel | 6 1/2" | 1 22/25" | 3 1/4" | 1 1/4" | - | €231.98 |
