SEALMASTER NPL-10 DBB 708666 Pillow Block Bearing, 2 Bolt, 5/8 Inch Bore, Set Screw Mount
Get it by Wednesday, Dec 17
€129.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 5" |
| Base To Center Height | 1 1/16" |
| Base Width | 1 1/2" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 3/8" |
| Bolt Spacing | 3 3/4" |
| Bolt Spacing Max | 4.13" |
| Bolt Spacing Min | 3.38" |
| Bore Dia. | 5/8" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 0.719" |
| Dynamic Load Capacity | 2611 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.38" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt, Low Base |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.188" |
| Insert | 2-010 ARC |
| Length Through Bore | 1.219" |
| Lubrication Type | Lithium Complex Grease With Synthetic Oil |
| Max. Operating Temperature | 220°F |
| Max. Speed | 7300 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | High Temperature |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.31" |
| Overall Length | 5" |
| Overall Width | 1 1/2" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | High Temp Labyrinth |
| Shaft Locking Type | Set Screw |
| Size Code | 2-012 |
| Static Load Rating | 1444 lbs. |
| Vibration Frequency Fundamental Train | 0.0065 cPS |
| Vibration Frequency Inner Ring Defect | 0.0915 cPS |
| Vibration Frequency Outer Ring Defect | 0.0585 cPS |
| Vibration Frequency Roller Spin | 0.0361 cPS |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 13.34 |
| Country of Origin | US |
Product Variants
| Product | Model | Bearing Insert Type | Shaft Locking Type | Bearing Insert Material | Overall Length | Overall Width | Overall Height | Bore Dia. | Mount Hole Center-to-center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NPL-46 | Radial Ball | Set Screws | Alloy Steel | 12" | 3 3/8" | 6.437" | - | 9 1/2" | €6,412.04 | |
 |
NPL-206TM | - | - | - | - | - | - | - | - | €195.95 | |
|
NPL-21 | Radial Ball | Set Screws | Alloy Steel | 6.562" | 1 7/8" | 3.687" | - | 5 19/64" | €855.72 | |
 |
NPL-11 | Standard Duty | Set Screw | Steel | 5" | 1 1/2" | 2.31" | 11/16" | - | €165.07 | |
 |
NPL-35 HT | - | - | - | - | - | - | - | - | €479.60 | |
 |
NPL-10 | Standard Duty | Set Screw | Steel | 5" | 1 1/2" | 2.31" | 5/8" | 4 1/8" | €334.52 | |
 |

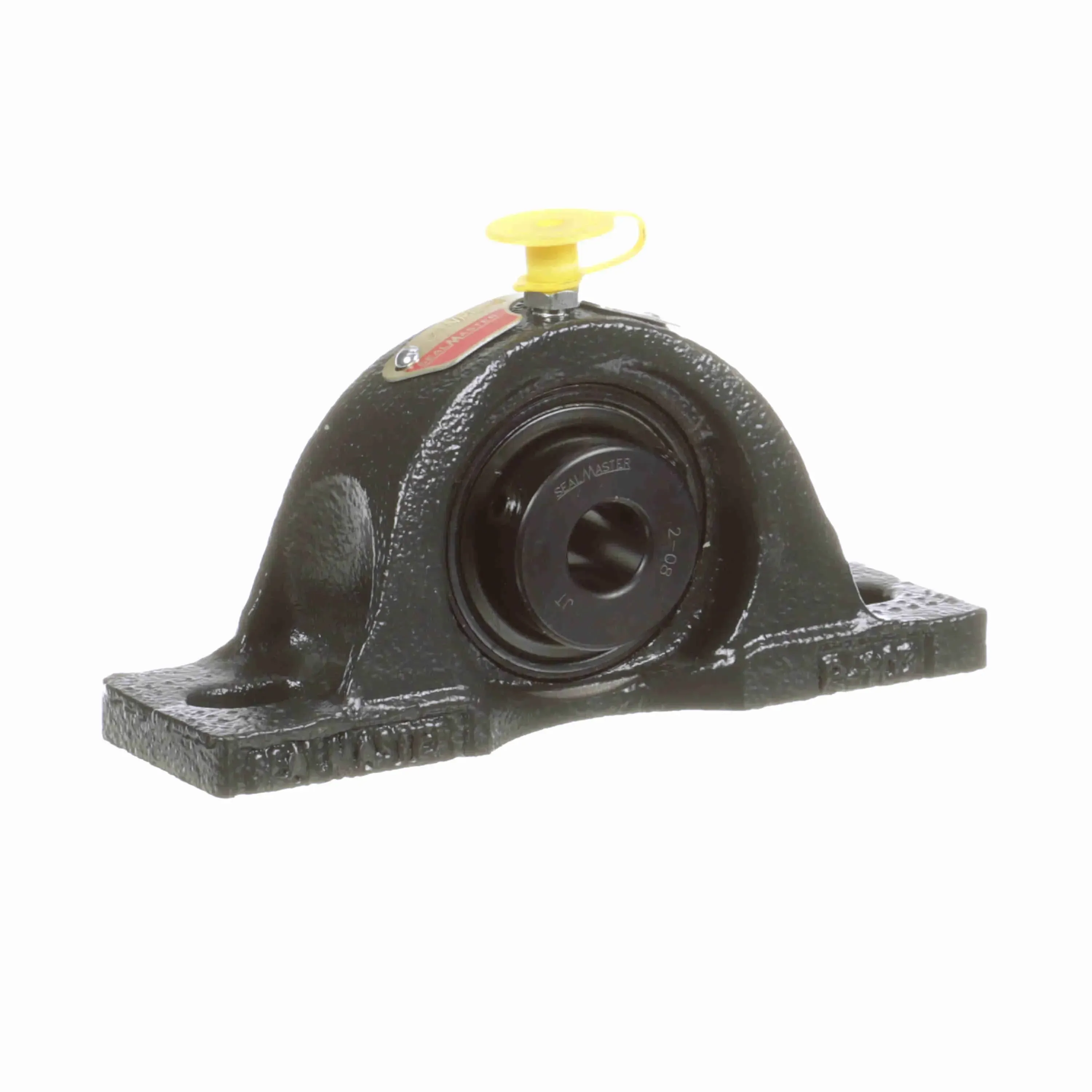

NPL-8 | Standard Duty | Set Screw | Steel | 5" | 1 1/2" | 2.31" | 1/2" | - | €373.09 |
