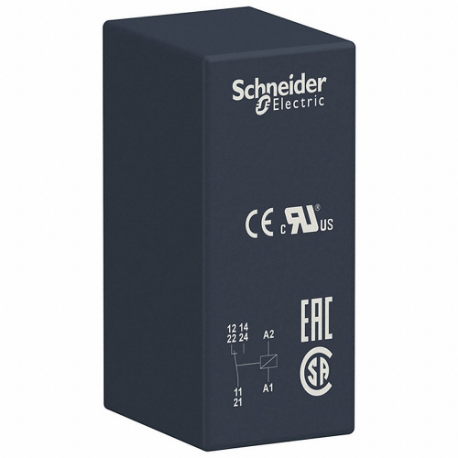

SCHNEIDER ELECTRIC RSB1A160JD Relay, Socket Mounted, 16 A Current Rating, 12V DC, 8 Pins/Terminals, Spdt
Item: CP4MAKModel: RSB1A160JDCross Ref: 55WM44
7 In Stock
12V DC
16A @ 250V
16A @ 28V
Ships within 2 days via
5.00% off
€9.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Ac Contact Rating | 16A @ 250V |
| Coil Voltage | 12V DC |
| Contact Form | SPDT |
| Current Rating | 16A |
| Dc Contact Rating | 16A @ 28V |
| Dielectric Strength | 1000V AC Between Contacts, 2500V AC Between Poles, 5000V AC Between Coil And Contacts |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Mechanical Operating Durability | 30000000 |
| Mfr. Series | Harmony RSB Series |
| Number Of Pins/terminals | 8 |
| Product Datasheet | schneider-electric-rsb1a160jd.pdf |
| Push-to-test Button | No Test Button |
| Relay Mounting Style | Socket |
| Sealing | Enclosed |
| Status Indicator | No |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.9 |
| Ship length (cm) | 1.57 |
| Ship width (cm) | 1.24 |
| Country of Origin | AT |
Documentation:
Product Variants
| Model | Contact Form | Push-to-test Button | Relay Mounting Style | Number Of Pins/terminals | Electrical Connection Type | Coil Voltage | Current Rating | Socket Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 24V AC | 30A | - | €26.50 | |
| RPF2AF7 | - | - | - | - | - | 120V AC | 30A | - | €26.50 | |
| RPF2AP7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 230V AC | 30A | - | €26.50 | |
| RPF2BJD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 12V DC | 30A | - | €26.13 | |
| RPF2BBD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V DC | 30A | - | €26.13 | |
| RPF2BB7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V AC | 30A | - | €26.13 | |
| RPF2BF7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 120V AC | 30A | - | €26.13 |
