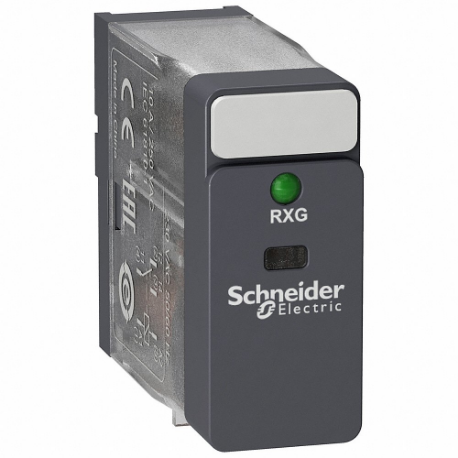

SCHNEIDER ELECTRIC RXG13F7 Plug-In Relay, Socket Mounted, 10 A Current Rating, 120VAC, 5 Pins/Terminals, SPDT
Item: CU2CPKModel: RXG13F7Cross Ref: 69ZP18
7 In Stock
120V AC
10A @ 250V
10A @ 30V
Ships within 2 days via
10.00% off
€18.66 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug-In Relay |
| Ac Contact Rating | 10A @ 250V |
| Amps Rating | 10A |
| Base Shape | Square |
| Base Type - Plug In Relay | Square |
| Body Depth | 1 9/25" , 1.14" |
| Body Height | 1 2/5" , 1.14" |
| Body Width | 0.51" |
| Coil Resistance | 6300 ohms |
| Coil Voltage | 120V AC |
| Contact Form | SPDT |
| Current Rating | 10A |
| Dc Contact Rating | 10A @ 30V |
| Dielectric Strength | 1000V AC Between Contacts With Micro Disconnection, 5000V AC Between Coil And Contact With Reinforced Insulation |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Environmental Protection | Enclosed |
| Features | Insulation Class F |
| Flat Pin Width | 0.19" |
| For Use With | Hard-Wired Logic Automated Systems |
| Insulation Resistance | 1000 M ohms |
| Mechanical Operating Durability | 10000000 |
| Mfr. Series | HARMONY RXG Series |
| Min. Switching Amps | 100 mA |
| Number Of Pins | 5 |
| Number Of Pins - Relay | 5 |
| Number Of Pins/terminals | 5 |
| Overall Depth | 1.59" |
| Pin Shape | Flat |
| Power Consumption | 0.82 VA |
| Power Consumption - Relay | 0.82 VA |
| Product Datasheet | schneider-electric-rxg13f7.pdf |
| Push-to-test Button | No Test Button |
| Push-to-test Method | No Button |
| Relay Mounting | Plug In |
| Relay Mounting Style | Socket |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Response Time | 20 ms |
| Sealing | Enclosed |
| Socket Code | H |
| Status Indicator | LED Indicatormechanical Flag |
Shipping Info:
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 2.9 |
| Ship length (cm) | 3.45 |
| Ship width (cm) | 1.3 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Contact Form | Push-to-test Button | Relay Mounting Style | Number Of Pins/terminals | Electrical Connection Type | Coil Voltage | Current Rating | Socket Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 24V AC | 30A | - | €31.48 | |
| RPF2AF7 | - | - | - | - | - | 120V AC | 30A | - | €31.48 | |
| RPF2AP7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 230V AC | 30A | - | €31.48 | |
| RPF2BJD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 12V DC | 30A | - | €33.73 | |
| RPF2BBD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V DC | 30A | - | €33.73 | |
| RPF2BB7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V AC | 30A | - | €33.73 | |
| RPF2BF7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 120V AC | 30A | - | €33.73 |
