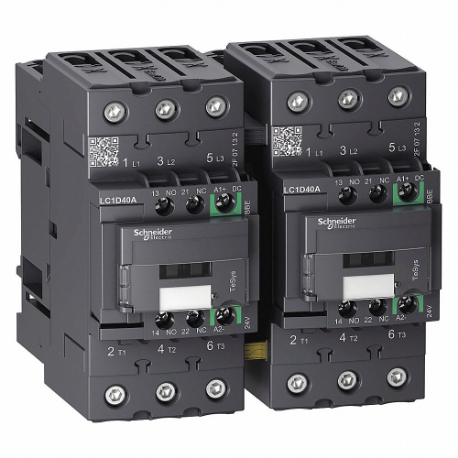

SCHNEIDER ELECTRIC LC2D40ABBE Iec Magnetic Contactor, 24 V Dc Coil Volts, 40 A
Item: CU2BPXModel: LC2D40ABBECross Ref: 482Z68
7 In Stock
Ships within 2 days via
10.00% off
€602.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Magnetic Contactor |
| Aux. Contact Configuration | 1NO/1NC |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Volts | 24V DC |
| Contactor Style | IEC |
| Depth | 4 18/25" |
| Electrical Operating Durability | 2000000, 700000 |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 40A |
| Full Load Amps-resistive | 60A |
| Full Load Current - Resistive | 60A |
| Height | 4 4/5" |
| Horsepower @ Single Phase - 240v Ac | 5 hp |
| Horsepower @ Three Phase (600 Vac) | 30 hp |
| Horsepower @ Three Phase - 208v Ac | 10 hp |
| Horsepower @ Three Phase - 480v Ac | 30 hp |
| Hp @ 1 Phase - 120v | 3 hp |
| Hp @ 1 Phase - 240v | 5 hp |
| Hp @ 3 Phase - 208v | 10 hp |
| Hp @ 3 Phase - 240v | 10 hp |
| Hp @ 3 Phase - 480v | 30 hp |
| Hp @ 3 Phase - 575v | 30 hp |
| Includes Auxiliary Contacts | Yes |
| Integrated Surge Suppression | No |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 3NO |
| Maximum Operating Temperature | 140°F |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 6000000 |
| Minimum Operating Temperature | -40°F |
| Nema Enclosure Material | Not Applicable |
| Nominal Coil Voltage @ 60hz | 24V DC |
| Number Of Auxillary Contacts | 2 |
| Number Of Normally Open Main Contacts | 3 |
| Number Of Poles | 3 |
| Overall Depth | 4.72" |
| Overall Height | 4 4/5" |
| Overall Width | 4.69" |
| Product Datasheet | schneider-electric-lc2d40abbe.pdf |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Reversible | Yes |
| Reversing Capability | Reversing |
| Series | Tesys Deca |
| Terminal Connection Type | Screw Clamp Terminals |
| Width | 4.69" |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 2.08 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 11.99 |
| Ship width (cm) | 11.91 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Reversing Capability | Main Power Pole Contact Form | Auxiliary Contacts Included | Nominal Coil Voltage @ 60hz | Wire Termination Type | Integrated Surge Suppression | Coil Volts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LC1D093BD | 3 | - | - | - | - | - | - | 24V | €239.09 | |
 |
LC1D09BL | 3 | Non-reversing | 3NO | 1NO/1NC | 24V DC | Screw Clamp | Yes | 24V | €248.55 | |
 |
LC1D09E7 | 3 | - | - | - | - | - | - | 48V | €225.10 | |
 |
LC1D18E7 | 3 | - | - | - | - | - | - | 48V | €341.66 | |
|
LC1D18F7 | 3 | Non-reversing | 3NO | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €115.65 | |
 |
LC1D258F7 | 4 | Non-reversing | 2NO/2NC | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €289.48 | |
 |
LC1D25F7 | 3 | Non-reversing | 3NO | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €342.57 |
