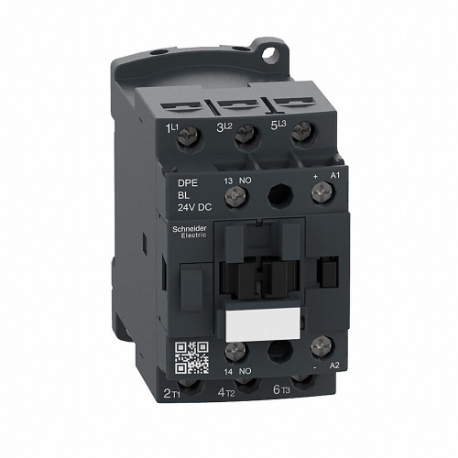

SCHNEIDER ELECTRIC DPE18BL Easy Tesys, 24 VDC Coil Volts, 18 A Full Load Amps-Inductive, 1No
Item: CU2BLKModel: DPE18BLCross Ref: 787P21
7 In Stock
Ships within 2 days via
10.00% off
€68.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Magnetic Contactor |
| Aux. Contact Configuration | 1NO |
| Auxiliary Contacts Included | 1NO |
| Coil Volts | 24V DC |
| Contactor Style | IEC |
| Electrical Operating Durability | 1000000, 600000 |
| Enclosure Nema Rating | NEMA 3R, NEMA 4 |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 18A |
| Full Load Amps-resistive | 18A |
| Full Load Current - Resistive | 18A |
| Height | 3.03" |
| Horsepower @ Single Phase - 240v Ac | 2 hp |
| Horsepower @ Three Phase - 208v Ac | 3 hp |
| Horsepower @ Three Phase - 600v Ac | 10 hp |
| Hp @ 1 Phase - 120v | 1/2 hp |
| Hp @ 1 Phase - 240v | 2 hp |
| Hp @ 3 Phase - 208v | 3 hp |
| Hp @ 3 Phase - 240v | 3 hp |
| Hp @ Three Phase - 480v Ac | 7 1/2 hp |
| Includes Auxiliary Contacts | Yes |
| Integrated Surge Suppression | No |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 3NO |
| Maximum Operating Temperature | 140°F |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 10000000 |
| Minimum Operating Temperature | -40°F |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 24V DC |
| Number Of Poles | 3 |
| Overall Depth | 3.39" |
| Overall Height | 3.03" |
| Overall Width | 1.77" |
| Reversible | No |
| Reversing Capability | Non-reversing |
| Series | TESYS EASY Series |
| Special Features | Overvoltage Category Iii, Minimum Switching Voltage 17V Signalling Circuit, Insulation Resistance 10 Mohm Signalling Circuit |
| Width | 1.77" |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.53 |
| Ship height (cm) | 7.7 |
| Ship length (cm) | 8.61 |
| Ship width (cm) | 4.5 |
| Country of Origin | ID |
Product Variants
| Product | Model | Number Of Poles | Reversing Capability | Main Power Pole Contact Form | Auxiliary Contacts Included | Nominal Coil Voltage @ 60hz | Wire Termination Type | Integrated Surge Suppression | Coil Volts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LC1D093BD | 3 | - | - | - | - | - | - | 24V | €239.09 | |
 |
LC1D09BL | 3 | Non-reversing | 3NO | 1NO/1NC | 24V DC | Screw Clamp | Yes | 24V | €248.55 | |
 |
LC1D09E7 | 3 | - | - | - | - | - | - | 48V | €225.10 | |
 |
LC1D18E7 | 3 | - | - | - | - | - | - | 48V | €341.66 | |
|
LC1D18F7 | 3 | Non-reversing | 3NO | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €115.65 | |
 |
LC1D258F7 | 4 | Non-reversing | 2NO/2NC | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €289.48 | |
 |
LC1D25F7 | 3 | Non-reversing | 3NO | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €342.57 |
