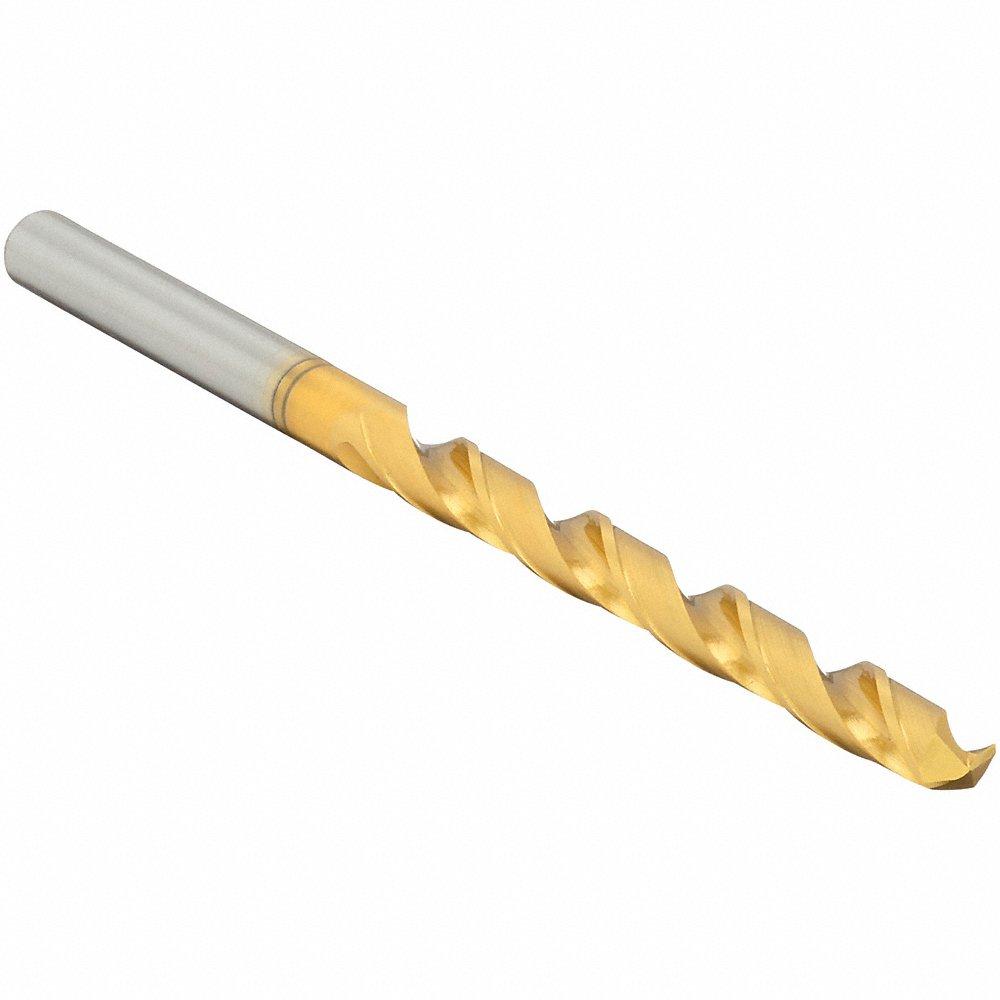

OSG 15093805 Jobber Length Drill Bit, 3/32 Inch Size Drill Bit Size, 2 1/2 Inch Overall Length | CT6DNK 2PNU4

OSG 15093805 Jobber Length Drill Bit, 3/32 Inch Size, 2 1/2 Inch Overall Length

Item: CT6DNKModel: 15093805Cross Ref: 2PNU4
7 In Stock

Ships within 2 days via

€34.06
10.00% off
€30.65 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Application For Alloy, Carbon And Tool Steel, Aluminum, Cast Iron, High Nickel Alloy, Stainless Steel, Titanium And Hardened Steel Under 35 Hrc.
Coolant Fed Non-Coolant Through
Coolant Through No
Cutting Direction Right Hand
Decimal Equivalent 0.0938
Depth X Dia. Ratio 5xd
Drill Bit Dimension Type Fractional Inch
Drill Bit Grouping Drill Bit
Drill Bit Material Cobalt
Drill Bit Point Angle 130°
Drill Bit Point Type Notched Point
Drill Bit Size 3/32"
Drill Diameter Tolerance -0.014 mm to 0 mm
Drill Length Class Jobber Length
Finish Tin
Finish - Machining Tin
Flute Length 1 1/4"
Flute Type Spiral
Grade Heavy Duty
Helix Angle 30°
List Number 1500
Material Cobalt
Material - Machining Cobalt
Material Grade - Machining HIGH PERFORMANCE
Max. Drilling Depth 1 1/4"
No. Of Pieces 1
Number Of Flutes 2
Overall Length 2 1/2"
Point Angle 130°
Point Type Notched Point
Primary Material Application Steel, Tool And Die Steel
Primary Material Application Iso Code P
Secondary Material Application Cast Iron, Aluminum, Hardened Steel, High Carbon Steel, Stainless Steel
Secondary Material Application Iso Code H, K, M, N, P
Series 1500 Series
Shank Dia. 1/8"
Shank Length 32 mm
Shank Type Straight
Shank Type - Machining Straight
Sheeter Drill No
Size 0.094"
Standards Not Rated
System Of Measurement Fractional Inch

Shipping Info:

Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelDecimal EquivalentFlute LengthMax. Drilling DepthShank Dia.Overall LengthDrill Bit SizeShank LengthDrill Diameter TolerancePrice
OSG 15177005 Jobber Length Drill Bit, #16 Drill Bit Size, 3 5/8 Inch Overall Length | CT6CDH 2PNV5 151770050.1772 3/16"2.188"0.188"3 5/8"#1637 mm-0.018 mm to 0 mm€48.61
OSG 15159005 Jobber Length Drill Bit, #21 Drill Bit Size, 3 9/16 Inch Overall Length | CT6CEU 2PNV3 151590050.1592 1/8"2 1/8"0.188"3.562"-37 mm-€48.61
OSG 15136005 Jobber Length Drill Bit, #29 Drill Bit Size, 3 3/16 Inch Overall Length | CT6CGA 2PNU9 151360050.1361 3/4"1 3/4"0.188"3 3/16"#2936 mm-0.018 mm to 0 mm€42.53
OSG 15213005 Jobber Length Drill Bit, #3 Drill Bit Size, 4 5/16 Inch Overall Length | CT6CGH 2PNW2 152130050.2132 1/2"2 1/2"1/4"4 5/16"#346 mm-0.018 mm to 0 mm€70.70
OSG 15128505 Jobber Length Drill Bit, #30 Drill Bit Size, 3 1/16 Inch Overall Length | CT6CGP 2PNU8 151285050.12851 5/8"1 5/8"0.188"3 1/16"#3036 mm-0.018 mm to 0 mm€31.65
OSG 15120005 Jobber Length Drill Bit, #31 Drill Bit Size, 3 1/16 Inch Overall Length | CT6CGT 2PNU6 151200050.121 5/8"1 5/8"0.188"3 1/16"#3136 mm-0.018 mm to 0 mm€34.39
OSG 15098005 Jobber Length Drill Bit, #40 Drill Bit Size, 2 5/8 Inch Overall Length | CT6CJB 2PNU5 150980050.0981 3/8"1 3/8"1/8"2 5/8"#4032 mm-0.014 mm to 0 mm€33.07
