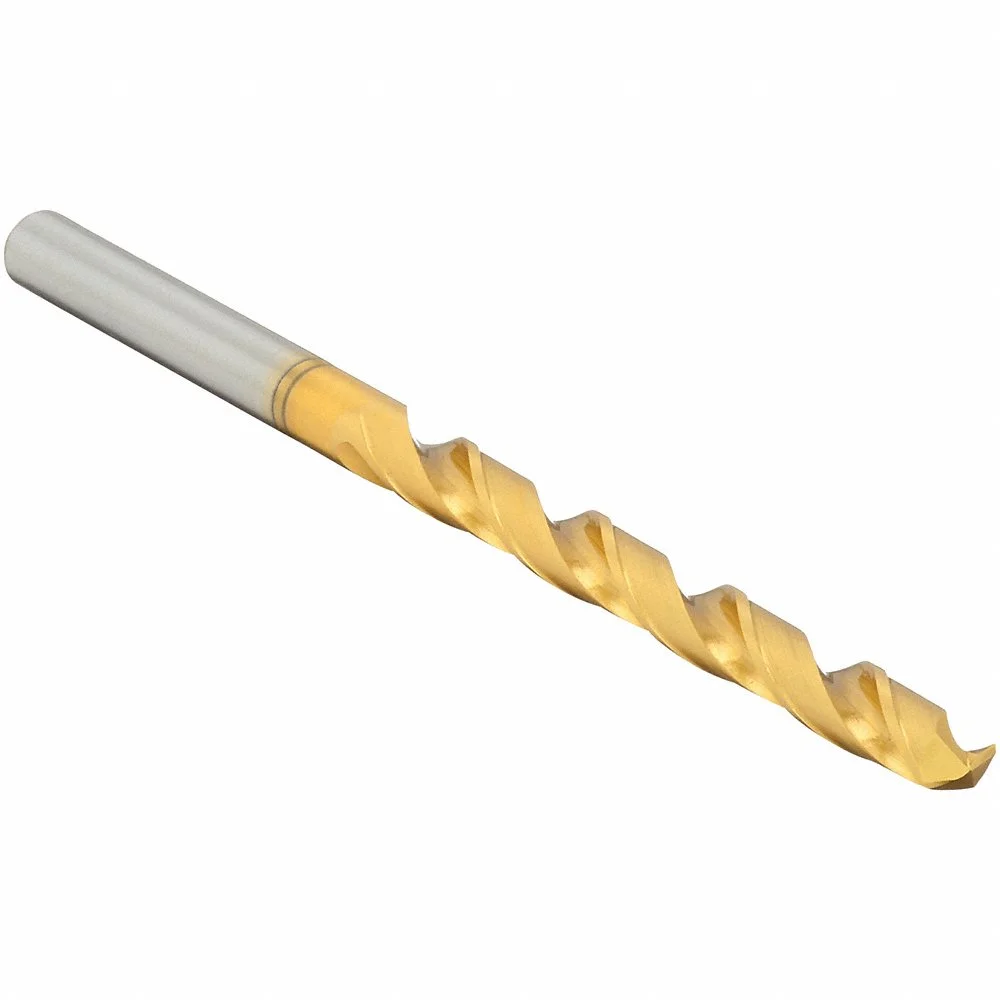

OSG 15098005 Jobber Length Drill Bit, #40 Size, 2 5/8 Inch Overall Length
Item: CT6CJBModel: 15098005Cross Ref: 2PNU5
7 In Stock
0.097"
0.125"
Ships within 2 days via
10.00% off
€29.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Application | For Alloy, Carbon And Tool Steel, Aluminum, Cast Iron, High Nickel Alloy, Stainless Steel, Titanium And Hardened Steel Under 35 Hrc. |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.098 |
| Depth X Dia. Ratio | 5xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 130° |
| Drill Bit Point Type | Notched Point |
| Drill Bit Size | #40 |
| Drill Diameter Tolerance | -0.014 mm to 0 mm |
| Drill Length Class | Jobber Length |
| Finish | Tin |
| Finish - Machining | Tin |
| Flute Length | 1 3/8" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | 30° |
| List Number | 1500 |
| Material | Cobalt |
| Material - Machining | Cobalt |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 1 3/8" |
| Measurement System | Wire |
| No. Of Pieces | 1 |
| Number Of Flutes | 2 |
| Overall Length | 2 5/8" |
| Point Angle | 130° |
| Point Type | Notched Point |
| Primary Material Application | Steel, Tool And Die Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Cast Iron, Aluminum, Hardened Steel, High Carbon Steel, Stainless Steel |
| Secondary Material Application Iso Code | H, K, M, N, P |
| Series | 1500 Series |
| Shank Dia. | 1/8" |
| Shank Length | 32 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | #40 |
| Standards | Not Rated |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Decimal Equivalent | Flute Length | Max. Drilling Depth | Shank Dia. | Overall Length | Drill Bit Size | Shank Length | Drill Diameter Tolerance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 15177005 | 0.177 | 2 3/16" | 2.188" | 0.188" | 3 5/8" | #16 | 37 mm | -0.018 mm to 0 mm | €48.61 | |
| 15159005 | 0.159 | 2 1/8" | 2 1/8" | 0.188" | 3.562" | - | 37 mm | - | €48.61 | |
| 15136005 | 0.136 | 1 3/4" | 1 3/4" | 0.188" | 3 3/16" | #29 | 36 mm | -0.018 mm to 0 mm | €42.53 | |
| 15213005 | 0.213 | 2 1/2" | 2 1/2" | 1/4" | 4 5/16" | #3 | 46 mm | -0.018 mm to 0 mm | €70.70 | |
| 15128505 | 0.1285 | 1 5/8" | 1 5/8" | 0.188" | 3 1/16" | #30 | 36 mm | -0.018 mm to 0 mm | €31.65 | |
| 15120005 | 0.12 | 1 5/8" | 1 5/8" | 0.188" | 3 1/16" | #31 | 36 mm | -0.018 mm to 0 mm | €34.39 | |
| 15093505 | 0.0935 | 1 1/4" | 1 1/4" | 1/8" | 2 1/2" | #42 | 32 mm | -0.014 mm to 0 mm | €33.13 |
