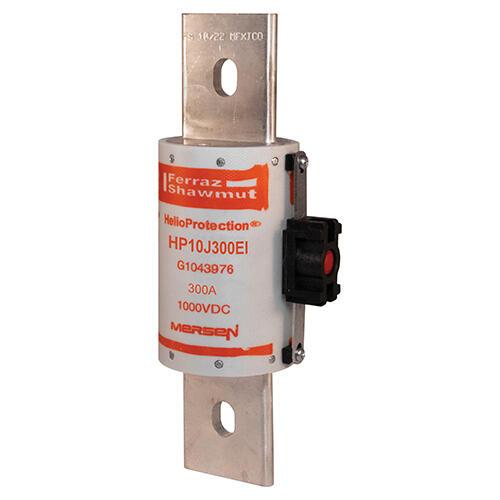

MERSEN FERRAZ HP10J300EI Fuse, 1000 VDC, 300A, gPV Class
Get it by Tuesday, Aug 25
€1,164.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac Max. I R Breaking Capacity I1 | 200 kA |
| Ac Voltage | 600V AC |
| Ac/dc | AC/DC |
| Amps | 300A |
| Body Material | Gmg |
| Body/insulating Material | GMG |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Blade |
| Dia. | 54.1 mm |
| Finish | Silver Plated |
| Frequency | 50/60 Hz |
| Fuse Class | Photovoltaic |
| Fuse Type | Photovoltaic |
| Indication System | Yes |
| Indication System Type | Ei Indicator |
| Length | 181.1 mm |
| Mounting | Clip, Bolted |
| Mounting Type | Clip Or Bolted |
| Product Datasheet | mersen-ferraz-hp10j100.pdf |
| Product Group | Special Purpose Fuses |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 1000V |
| Rohs Compliant | Yes |
| Speed Characteristic | GPV |
Shipping Info:
| Ship weight (kg) | 0.87 |
| Ship height (cm) | 18.9 |
| Ship length (cm) | 8.59 |
| Ship width (cm) | 7.62 |
Product Details:
- EI Indicator
Documentation:
Product Variants
| Product | Model | Amps | Connection/terminal Material | Dia. | Ac Max. I R Breaking Capacity I1 | Ac/dc | Mounting Type | Mounting | Ac Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HP10J100 | 100A | Brass | 41.4 mm | 200 kA | AC/DC | Clip Or Bolted | Clip, Bolted | 600V AC | €510.64 | |
 |
HP10J100EI | 100A | Brass | 41.4 mm | 200 kA | AC/DC | Clip Or Bolted | Clip, Bolted | 600V AC | €591.11 | |
 |
HP10J125 | 125A | Brass | 41.4 mm | 200 kA | AC/DC | Clip Or Bolted | Clip, Bolted | 600V AC | €479.16 | |
 |
HP10J125EI | 125A | Brass | 41.4 mm | 200 kA | AC/DC | Clip Or Bolted | Clip, Bolted | 600V AC | €591.11 | |
 |
HP10J160 | 160A | Brass | 41.4 mm | 200 kA | AC/DC | Clip Or Bolted | Clip, Bolted | 600V AC | €479.16 | |
 |
HP10J160EI | 160A | Brass | 41.4 mm | 200 kA | AC/DC | Clip Or Bolted | Clip, Bolted | 600V AC | €591.11 | |
 |
HP10J200 | 200A | Brass | 41.4 mm | 200 kA | AC/DC | Clip Or Bolted | Clip, Bolted | 600V AC | €479.16 |
