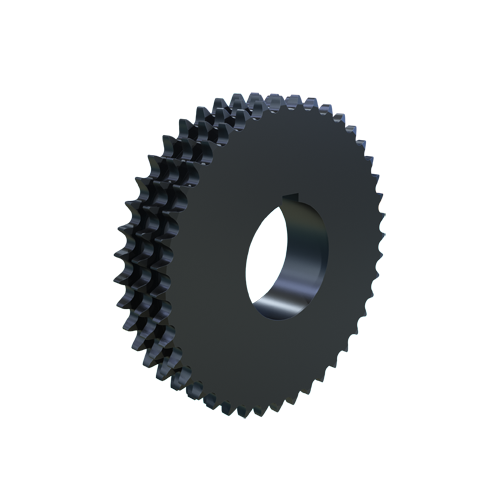

MARTIN SPROCKET E60R42 Sprocket, MST, 60 Chain, 42 Teeth, 10.036 Inch Pitch Dia., 10.458 Inch O.D., Steel
10.458"
Get it by Monday, Jul 13
€817.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bore Type | Bushed |
| Bushing Part Number | R1 |
| Bushing Size | R1 |
| Bushing Type | MST R1 |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | #60 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | A |
| Individually Packaged | No |
| Key Way Size | 3/4" |
| Keyway Width | 3/4" |
| Length Through Bore | 2.2325" , 2.238" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
| No. Of Chain Rows | 3 |
| No. Of Teeth | 42 |
| Outside Dia. | 10.458" |
| Pitch | 3/4" |
| Pitch Dia. | 10.0361" |
| Single Strand Tooth Thickness | 0.444" |
| Storage Dimension Height | 2 6/25" |
| Storage Dimension Length | 10.458" |
| Storage Dimension Width | 10.458" |
| Type | Type 25 Triple Strand Solid Bushed |
Shipping Info:
| Ship weight (kg) | 16.34 |
| Ship height (cm) | 5.69 |
| Ship length (cm) | 26.57 |
| Ship width (cm) | 26.57 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Keyway Width | Length Through Bore | Bushing Type | Hub Dia. | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E60P13H | 3/4" to 1 3/4" | 3.1339" | 3.493" | 3/8" | 3.844" | MST P2 | 3" | 60 | €275.29 | |
 |
E60P14H | 3/4" to 1 3/4" | 3.3705" | 3.736" | 3/8" | 3" | MST P2 | 3" | 60 | €296.33 | |
 |
E60P15H | 3/4" to 1 3/4" | 3.6073" | 3.978" | 3/8" | 3" | MST P2 | 3" | 60 | €317.51 | |
 |
E60P16H | 1/2" to 1 3/4" | 3.8444" | 4.221" | 3/8" | 2.2325" | MST P1 | - | 60 | €338.68 | |
|
E60Q17H | 0.75" to 2.688" | 4.0816" | 4.462" | 1/2" | 4" | MST Q1 | 4 1/4" | 60 | €359.89 | |
|
E60Q18H | 0.75" to 2.688" | 4.3191" | 4.703" | 1/2" | 1 3/4" | MST Q1 | 4 1/4" | 60 | €381.08 | |
 |
E60Q19H | 0.75" to 2.688" | 4.5567" | 4.945" | 1/2" | 1 3/4" | MST Q1 | 4 1/4" | 60 | €402.26 |
