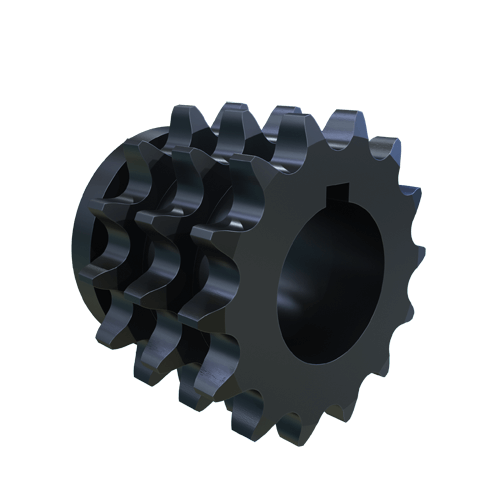

MARTIN SPROCKET E60P14H Roller Chain Sprocket, 60 Chain, Bushed MST, 14 Teeth, 3.371 Inch Pitch Dia., Steel
Item: AL4TAYModel: E60P14H
7 In Stock
Ships within 2 days via
€296.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | P2 |
| Bushing Size | P2 |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid With Recess Groove |
| Construction Type | Solid With Recess Groove |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Diameter | 3" |
| Hub Outside Dia. | 3" |
| Hub Recessed For Chain | 1 |
| Individually Packaged | No |
| Keyway Size | 3/8" |
| Keyway Width | 3/8" |
| Length Through Bore | 3" |
| Length Thru Bore | 2 5/16" |
| Material | Steel |
| Max. Bore Size | 1 3/4" |
| Min. Bore Size | 3/4" |
| No. Of Teeth | 14 |
| Number Of Chain Rows | 3 |
| Number Of Teeth | 14 |
| Outside Dia. | 3.736" |
| Pitch | 3/4" |
| Pitch Dia. | 3.3705" |
| Single Strand Tooth Thickness | 0.444" |
| Storage Dimension Height | 3" |
| Storage Dimension Length | 3.736" |
| Storage Dimension Width | 3.736" |
Shipping Info:
| Ship weight (kg) | 1.47 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 9.5 |
| Ship width (cm) | 9.5 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

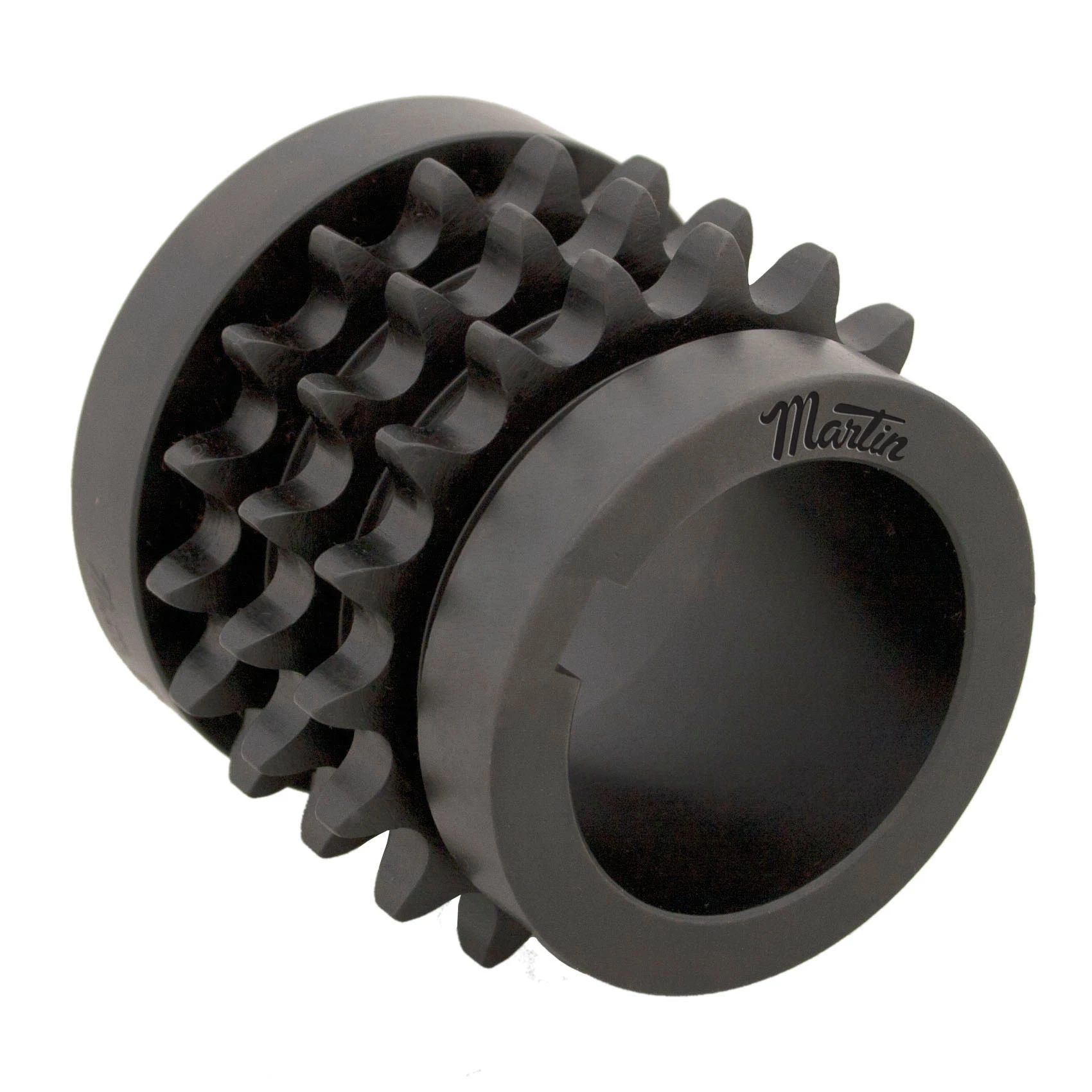

E60P13H | 13 | 3.1339" | 3.493" | 3.844" | MST P2 | 60 | 3/4" | Bushed | €275.29 | |
 |

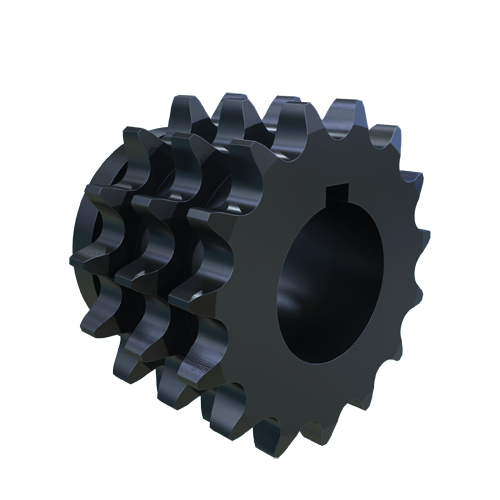

E60P15H | 15 | 3.6073" | 3.978" | 3" | MST P2 | 60 | 3/4" | Bushed | €317.51 | |
 |

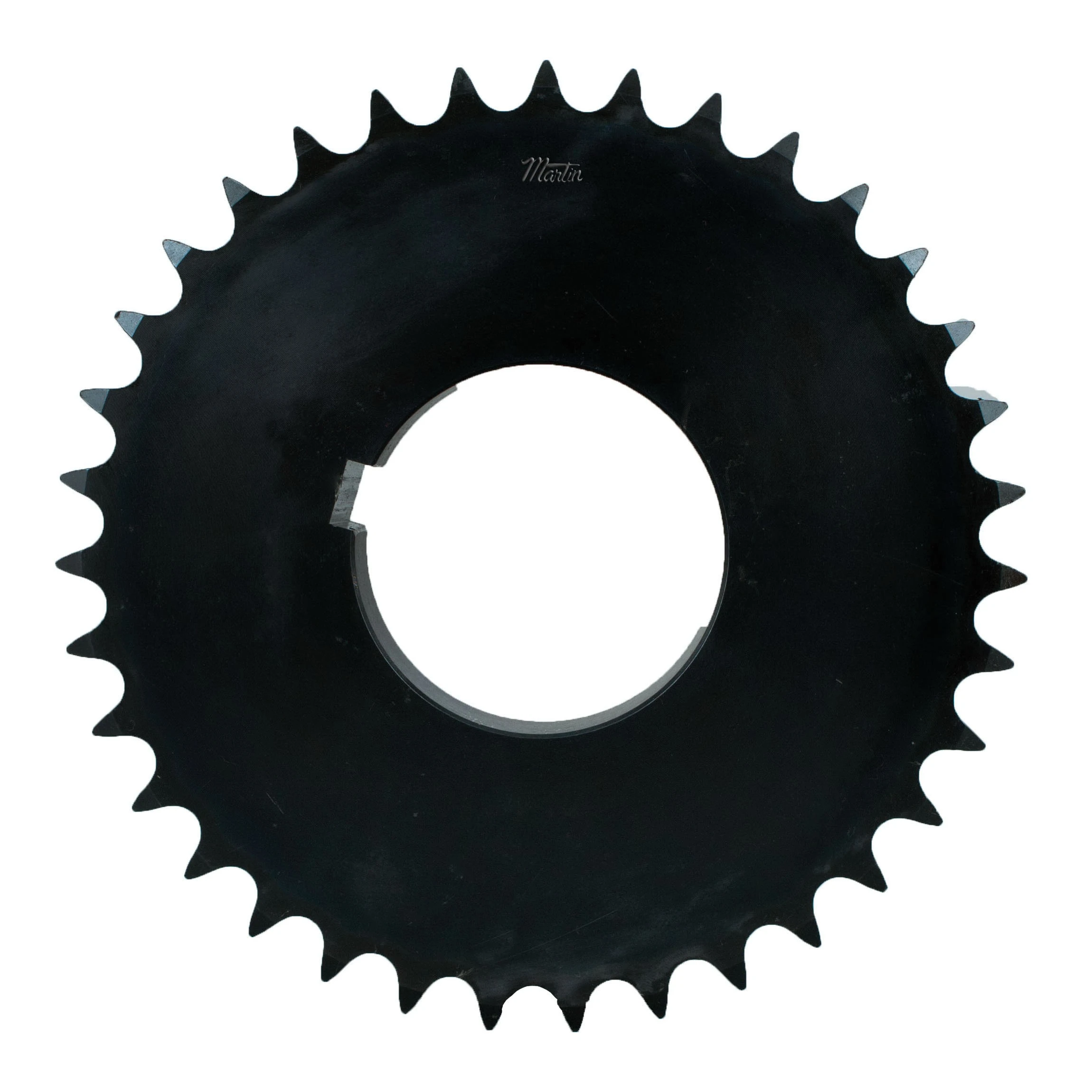

E60P16H | 16 | 3.8444" | 4.221" | 2.2325" | MST P1 | 60 | - | Bushed | €338.68 | |
|
E60Q17H | 17 | 4.0816" | 4.462" | 4" | MST Q1 | 60 | 3/4" | Bushed | €359.89 | |
|
E60Q18H | 18 | 4.3191" | 4.703" | 1 3/4" | MST Q1 | 60 | 3/4" | Bushed | €381.08 | |
 |

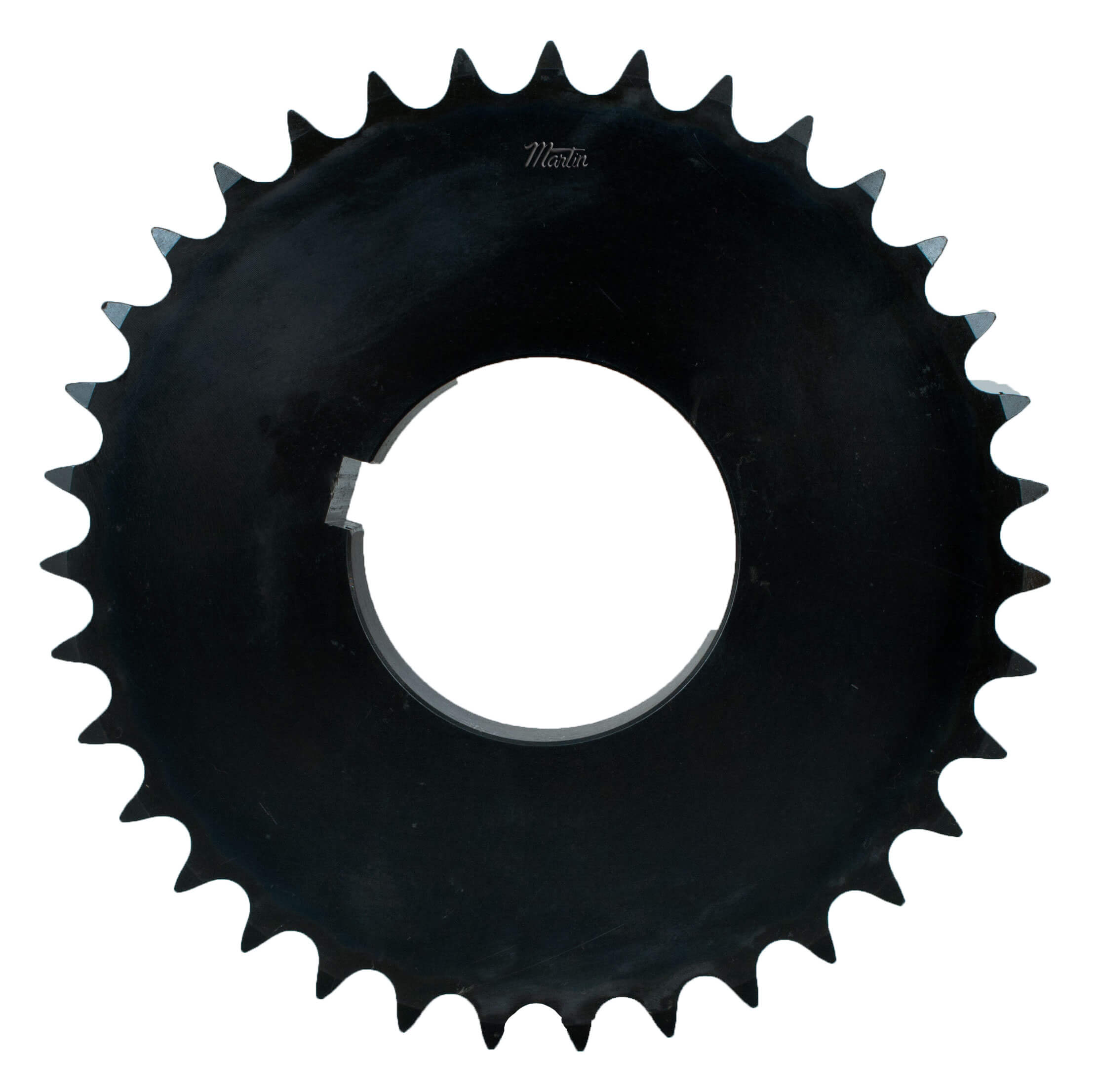

E60Q19H | 19 | 4.5567" | 4.945" | 1 3/4" | MST Q1 | 60 | 3/4" | Bushed | €402.26 | |
|
E60Q20H | 20 | 4.7943" | 5.185" | 1 3/4" | MST Q1 | 60 | 3/4" | Bushed | €423.44 |
