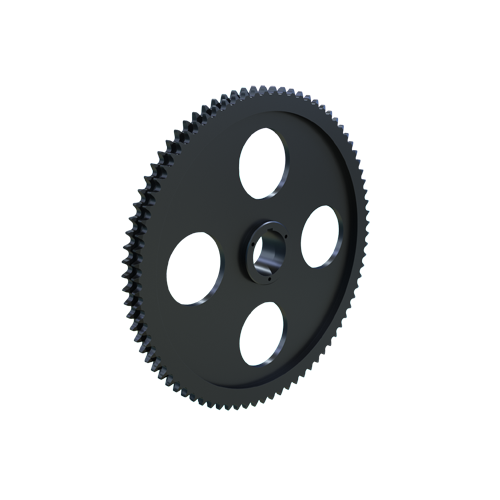

MARTIN SPROCKET D100S80 Sprocket, 100 Chain, 80 Teeth, 31.839 Inch Pitch Dia., 32.565 Inch O.D., Steel
32.565"
Get it by Tuesday, Apr 7
€5,820.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1.688" to 4.25" |
| Bore Type | Bushed |
| Bushing Part Number | S1 |
| Bushing Size | S1 |
| Bushing Type | MST S1 |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Chain Size | #100 |
| Construction | Welded With Lightening Holes |
| Construction Type | Welded With Lightening Holes |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Diameter | 6 1/2" |
| Hub Outside Dia. | 6 3/4" |
| Individually Packaged | No |
| Keyway Size | 3/4" |
| Keyway Width | 3/4" |
| Length Through Bore | 3 5/16" |
| Material | Steel |
| Max. Bore Size | 4 1/4" |
| Min. Bore Size | 1 11/16" |
| No. Of Teeth | 80 |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 80 |
| O.d. | 32.565" |
| Outside Dia. | 32.565" |
| Pitch | 1 1/4" |
| Pitch Dia. | 31.8392" |
| Single Strand Tooth Thickness | 0.669" |
| Storage Dimension Height | 3.31" |
| Storage Dimension Length | 32.565" |
| Storage Dimension Width | 32.565" |
| Type | Type 18 Double Strand Welded Bushed |
Shipping Info:
| Ship weight (kg) | 70.02 |
| Ship height (cm) | 8.41 |
| Ship length (cm) | 82.73 |
| Ship width (cm) | 82.73 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D100R19 | 19 | 7.5944" | 8.241" | 2 7/8" | Type R1 Split Taper | 100 | 1 1/4" | Bushed | €829.26 | |
 |
D100R20 | 20 | 7.9906" | 8.642" | 2 7/8" | Type R1 Split Taper | 100 | 1 1/4" | Bushed | €815.72 | |
 |
D100R21 | 21 | 8.3869" | 9.043" | 2 7/8" | Type R1 Split Taper | 100 | 1 1/4" | Bushed | €880.42 | |
 |
D100R22 | 22 | 8.7833" | 9.444" | 2 7/8" | Type R1 Split Taper | 100 | 1 1/4" | Bushed | €946.51 | |
 |
D100R24 | 24 | 9.5766" | 10.245" | 2 7/8" | Type R1 Split Taper | 100 | 1 1/4" | Bushed | €1,067.32 | |
 |
D100R35 | 35 | 13.945" | 14.639" | 2 7/8" | Type R1 Split Taper | 100 | 1 1/4" | Bushed | €1,744.38 | |
 |
D100S45 | 45 | 17 23/25" | 18.626" | 4 3/8" | Type S1 Split Taper | 100 | 1 1/4" | Bushed | €2,219.97 |
