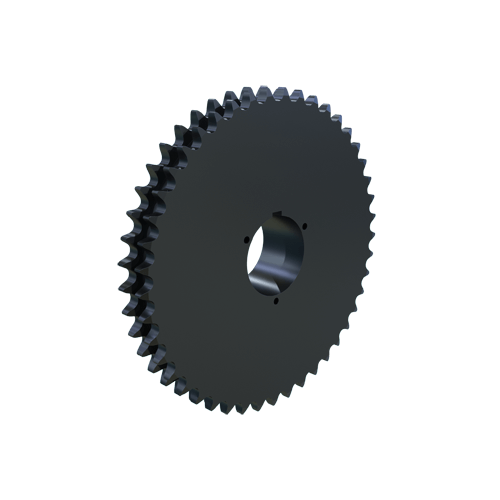

MARTIN SPROCKET D100S45 Sprocket, 100 Chain, 45 Teeth, 17.920 Inch Pitch Dia., 18.626 Inch O.D., Steel
18.626"
Get it by Monday, Aug 24
€2,219.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1.688" to 4.25" |
| Bore Type | Bushed |
| Bushing Part Number | S1 |
| Bushing Size | S1 |
| Bushing Type | Type S1 Split Taper |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Chain Size | 100 |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Dia. | 6 1/2" |
| Hub Outside Dia. | 6 3/4" |
| Individually Packaged | No |
| Key Way Size | 3/4" |
| Keyway Width | 3/4" , 3/4" W |
| Length Through Bore | 3 5/16" , 4 3/8" |
| Material | Steel |
| Max. Bore Size | 4 1/4" |
| Min. Bore Size | 1 11/16" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 45 |
| Outside Dia. | 18.626" |
| Pitch | 1 1/4" |
| Pitch Dia. | 17 23/25" , 17.9195" |
| Single Strand Tooth Thickness | 0.669" |
| Storage Dimension Height | 3.31" |
| Storage Dimension Length | 18.626" |
| Storage Dimension Width | 18.626" |
| Type | MST S1 Bushed Type 15 Welded |
Shipping Info:
| Ship weight (kg) | 59.4 |
| Ship height (cm) | 11.13 |
| Ship length (cm) | 47.32 |
| Ship width (cm) | 47.32 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

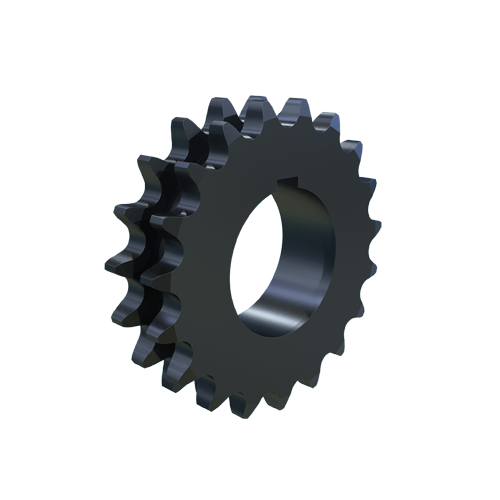

D100R19 | 7.5944" | 19 | 2 7/8" | 1 1/8" to 3 3/4" | 100 | 8.241" | 8.241" | 2 2/25" | €829.26 | |
 |

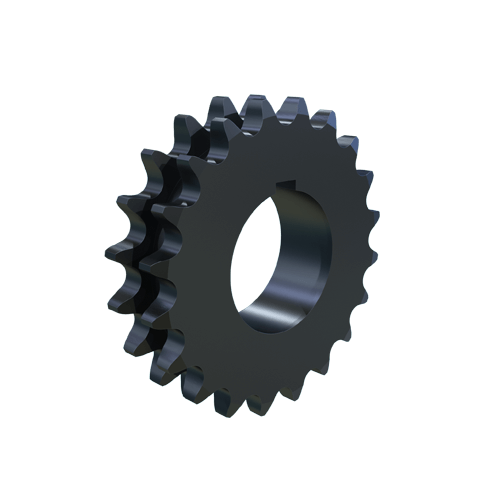

D100R20 | 7.9906" | 20 | 2 7/8" | 1 1/8" to 3 3/4" | 100 | 8.642" | 8.642" | 2 2/25" | €815.72 | |
 |

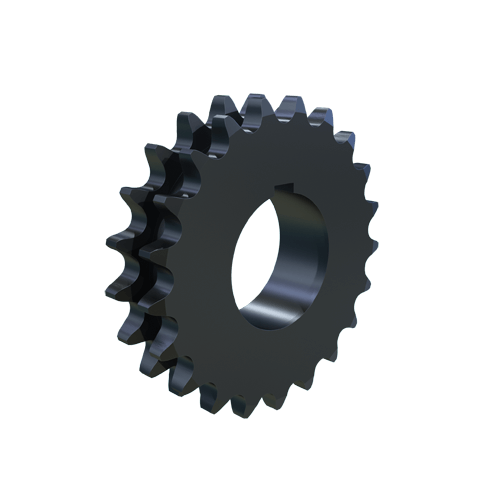

D100R21 | 8.387" | 21 | 2 7/8" | 1 1/8" to 3 3/4" | 100 | 9.043" | 9.043" | 2 2/25" | €880.42 | |
 |

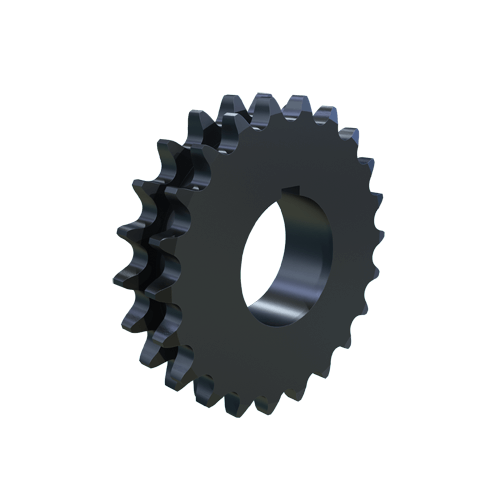

D100R22 | 8.7833" | 22 | 2 7/8" | 1 1/8" to 3 3/4" | 100 | 9.444" | 9.444" | 2 2/25" | €946.51 | |
 |

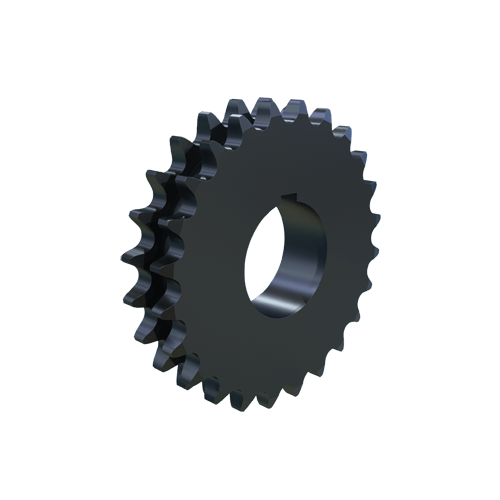

D100R24 | 9.577" | 24 | 2 7/8" | 1 1/8" to 3 3/4" | 100 | 10.245" | 10.245" | 2 2/25" | €1,067.32 | |
 |

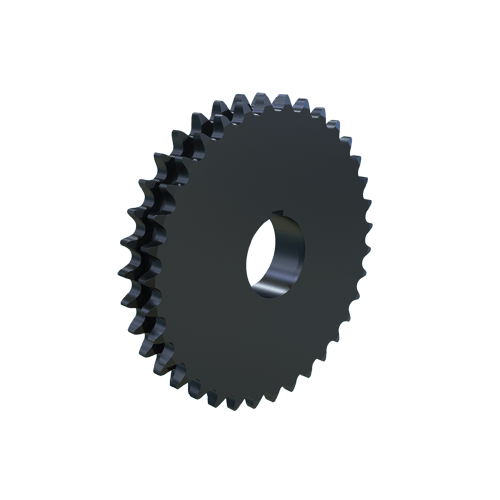

D100R35 | 13.945" | 35 | 2 7/8" | 1 1/8" to 3 3/4" | 100 | 14.639" | 14.639" | 2 2/25" | €1,744.38 | |
 |

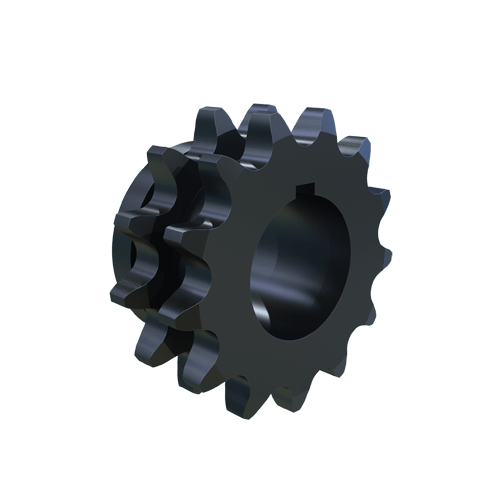

D100Q13H | 5.2232" | 13 | 3 1/2" | 1" to 2 5/8" | 100 | 5.821" | 5.821" | 3.19" | €617.88 |
