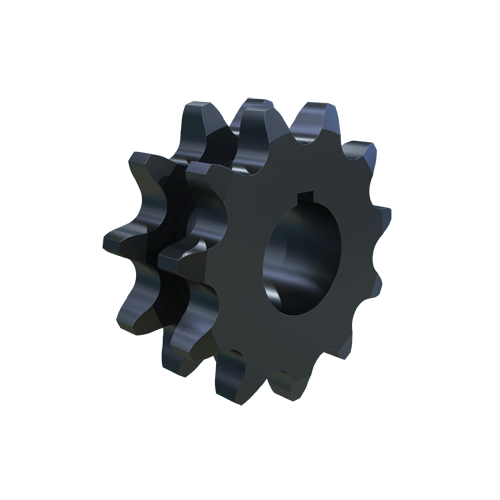

MARTIN SPROCKET D100P11H Sprocket, 100 Chain, 11 Teeth, 4.437 Inch Pitch Dia., 5.007 Inch O.D., Steel
Item: AL4XEWModel: D100P11H
7 In Stock
5.007"
Ships within 2 days via
€511.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1/2" to 1 3/4" |
| Bore Type | Bushed |
| Bushing Part Number | P1 |
| Bushing Size | P1 |
| Bushing Type | MST P1 |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Chain Size | #100 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hardened Teeth | 1 |
| Hub Configuration | A |
| Hub Dia. | 3" |
| Individually Packaged | No |
| Key Way Size | 3/8" |
| Keyway Width | 3/8" |
| Length Through Bore | 2.07" , 2.077" |
| Material | Steel |
| Max. Bore Size | 1 3/4" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 11 |
| Outside Dia. | 5.007" |
| Pitch | 1 1/4" |
| Pitch Dia. | 4.4368" |
| Single Strand Tooth Thickness | 0.669" |
| Storage Dimension Height | 2 2/25" |
| Storage Dimension Length | 5.007" |
| Storage Dimension Width | 5.007" |
| Type | Type 14 Double Strand Solid Bushed |
Shipping Info:
| Ship weight (kg) | 2.22 |
| Ship height (cm) | 5.28 |
| Ship length (cm) | 12.73 |
| Ship width (cm) | 12.73 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Keyway Width | Length Through Bore | Bushing Type | Hub Dia. | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D100R19 | 1 1/8" to 3 3/4" | 7.5944" | 8.241" | 3/4" | 2 7/8" | Type R1 Split Taper | 5 3/8" | 100 | €829.26 | |
 |
D100R20 | 1 1/8" to 3 3/4" | 7.9906" | 8.642" | 3/4" | 2 7/8" | Type R1 Split Taper | 5 3/8" | 100 | €815.72 | |
 |
D100R21 | 1 1/8" to 3 3/4" | 8.387" | 9.043" | 3/4" | 2 7/8" | Type R1 Split Taper | 5 3/8" | 100 | €880.42 | |
 |
D100R22 | 1 1/8" to 3 3/4" | 8.7833" | 9.444" | 3/4" | 2 7/8" | Type R1 Split Taper | 5 3/8" | 100 | €946.51 | |
 |
D100R24 | 1 1/8" to 3 3/4" | 9.577" | 10.245" | 3/4" | 2 7/8" | Type R1 Split Taper | 5 3/8" | 100 | €1,067.32 | |
 |
D100R35 | 1 1/8" to 3 3/4" | 13.945" | 14.639" | 3/4" | 2 7/8" | Type R1 Split Taper | 5 3/8" | 100 | €1,744.38 | |
 |
D100S45 | 1.688" to 4.25" | 17 23/25" | 18.626" | 3/4" | 4 3/8" | Type S1 Split Taper | 6 1/2" | 100 | €2,219.97 |
