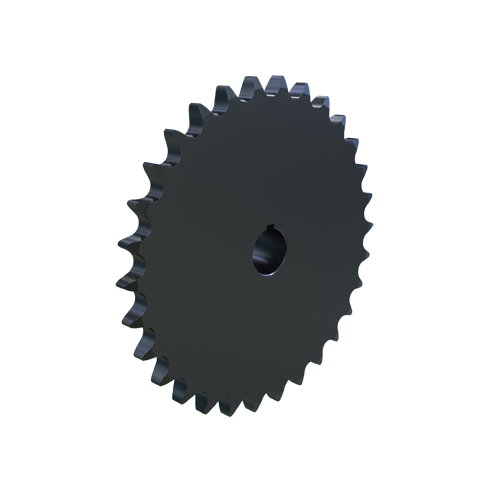

MARTIN SPROCKET 80BS30 1 3/8 Roller Chain Sprocket, Bore To Size, 1.375 Inch Bore, 10.114 Inch Outside Dia. Steel
10.114"
1.375"
Get it by Thursday, Dec 18
€209.38 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1 3/8" |
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 3/8" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | B |
| Hub Diameter | 4 3/4" |
| Hub Outside Dia. | 4 3/4" |
| Individually Packaged | No |
| Keyway Size | 5/16" x 5/32" |
| Length Through Bore | 2" |
| Length Thru Bore | 2" |
| Material | Steel |
| No. Of Teeth | 30 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 30 |
| Outside Dia. | 10.114" |
| Pitch | 1" |
| Pitch Dia. | 9.5668" |
| Pitch Diameter | 9.567" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 10.114" |
| Storage Dimension Width | 10.114" |
Shipping Info:
| Ship weight (kg) | 7.79 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 25.68 |
| Ship width (cm) | 25.68 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Set Screw Location | Bore Size | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
80BS9 1 | 9 | 2.9238" | 3.347" | 1 5/8" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1" | 80 | €73.18 | |
 |
80BS9 1 1/8 | 9 | 2.9238" | 3.347" | 1 5/8" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 1/8" | 80 | €73.18 | |
 |
80BS9 1 3/16 | 9 | 2.9238" | - | 1 5/8" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 3/16" | 80 | €73.18 | |
|
80BS10 1 | 10 | 3.2361" | 3.678" | 1 5/8" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1" | 80 | €80.59 | |
 |
80BS10 1 1/8 | 10 | 3.2361" | 3.678" | 1 5/8" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 1/8" | 80 | €80.59 | |
|
80BS9 1 1/4 | 9 | 2.9238" | 3.347" | 1 5/8" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 1/4" | 80 | €73.18 | |
|
80BS10 1 3/16 | 10 | 3.2361" | 3.678" | 1 5/8" | 5/16"-18 | (1) Over Keyway And (1) At 90° | - | 80 | €80.59 |
