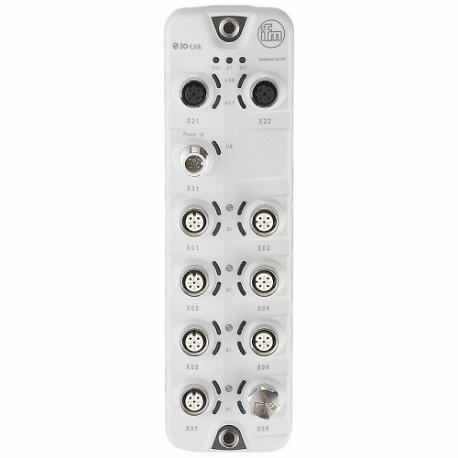

IFM AL1103 IO-Link Master, Hygienic Systems/I/O Modules for Field Applications, Ethernet/IO-Link
Item: CR4LRCModel: AL1103Cross Ref: 801TK3
7 In Stock
Ships within 2 days via
10.00% off
€738.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Converter |
| (hidden) Product Type Builder | AL1103 IFM |
| Application | Hygienic Systems, I/O Modules for Field Applications |
| Body Material | Polyamide |
| Communication Interface | Ethernet IO Link |
| Current Consumption | 3900 mA |
| Daisy-chain Function | Fieldbus Interface |
| Digital Inputs Protected Against Short Circuits | Yes |
| Electrical Connection Type | M12 Connector |
| Io-link Revision | 1.1 |
| Max. Ambient Temp. | 60°C |
| Maximum Current Load Per Output | 300 mA |
| Min. Ambient Temp. | -25°C |
| Number Of Digital Inputs | 16 |
| Number Of Digital Outputs | 8 |
| Number Of Outputs | 8 |
| Number Of Ports Class A | 8 |
| Operating Voltage | 20-30V DC |
| Protection Features | IP65, IP66, IP67, IP69K, Protection Class III |
| Short-circuit Proof | Yes |
| Transmission Rate | 100 Mbps |
| Transmission Type | Com1 (4.8 Kbaud) Com2 (38.4 Kbaud) Com3 (230.4 Kbaud) |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
