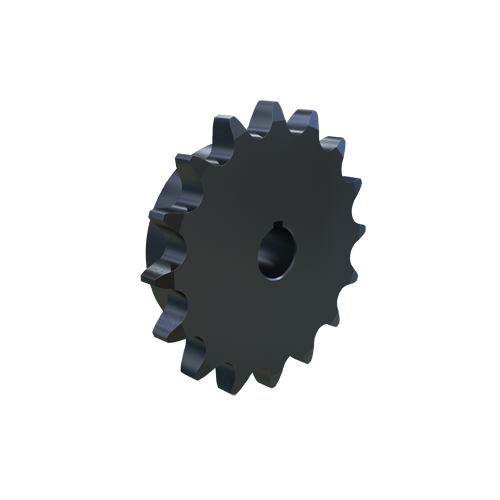

MARTIN SPROCKET 80BS16 1 Roller Chain Sprocket, Bore To Size, 1 Inch Bore, 5.627 Inch Outside Dia. Steel
5.627"
1"
Get it by Wednesday, Feb 25
€122.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1" |
| Bore Size | 1" |
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | B |
| Hub Diameter | 4" |
| Hub Outside Dia. | 4" |
| Individually Packaged | Yes |
| Keyway Size | 1/4" x 1/8" |
| Length Through Bore | 1 1/2" |
| Length Thru Bore | 1 1/2" |
| Material | Steel |
| No. Of Teeth | 16 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 16 |
| Outside Dia. | 5.627" |
| Pitch | 1" |
| Pitch Dia. | 5.1258" |
| Pitch Diameter | 5.126" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 1 14/25" |
| Storage Dimension Length | 5 3/4" |
| Storage Dimension Width | 5 3/4" |
Shipping Info:
| Ship weight (kg) | 2.59 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 14.3 |
| Ship width (cm) | 14.3 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Set Screw Location | Bore Size | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
80BS25 1 3/16 | 25 | 7.9787" | 8.516" | 1 3/4" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 3/16" | 80 | €182.00 | |
 |
80BS25 1 1/4 | 25 | 7.9787" | 8.516" | 1 3/4" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 1/4" | 80 | €182.00 | |
|
80BS25 1 3/8 | 25 | 7.9787" | 8.516" | 1 3/4" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 3/8" | 80 | €182.00 | |
|
80BS25 1 7/16 | 25 | 7.9787" | 8.516" | 1 3/4" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 7/16" | 80 | €182.00 | |
|
80BS25 1 1/2 | 25 | 7.9787" | 8.516" | 1 3/4" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | 80 | €182.00 | |
|
80BS25 1 3/4 | 25 | 7.9787" | 8.516" | 1 3/4" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 3/4" | 80 | €182.00 | |
 |
80BS18 1 1/4 | 18 | 5.7588" | 6.271" | 1 1/2" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 1/4" | 80 | €147.63 |
