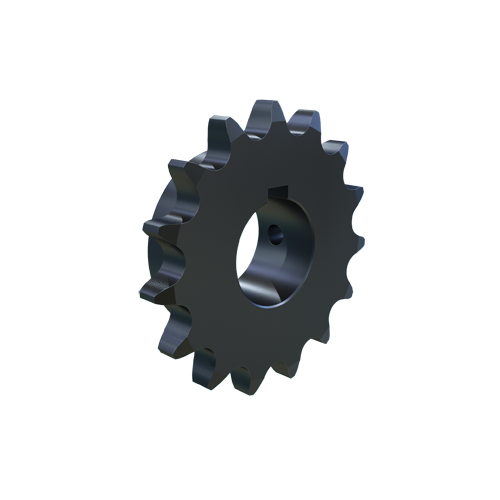

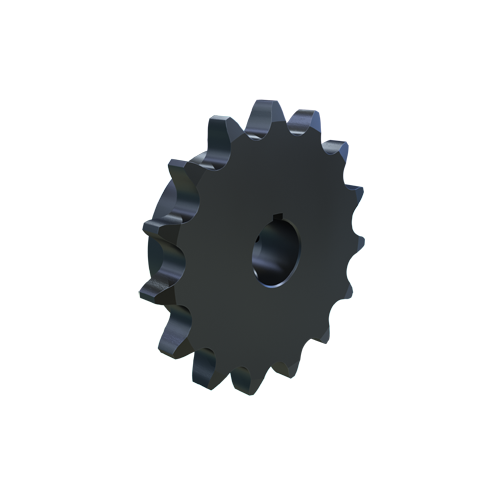

MARTIN SPROCKET Single Bored To Size Type Roller Chain Sprockets, 80 Chain Number
Filter
A
B
C
D
E
F
G| Style | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Hub Dia. | Length Through Bore | Set Screw Size | Set Screw Location | Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 80BS57 1 1/2 | 1 1/2" | 18.1529" | 18.725" | 5 1/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €443.92 | |
| B | 80BS22 1 1/2 | 1 1/2" | 7.027" | 7.555" | 4 1/4" | 1 3/4" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €196.83 | |
| A | 80BS44 1 1/2 | 1 1/2" | 14.0175" | 14.582" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €308.94 | |
| C | 80BS11 1 1/2 | 1 1/2" | 3.55" | 4.006" | 2.813" | 1 5/8" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €89.87 | |
| A | 80BS54 1 1/2 | 1 1/2" | 17.1984" | 17.769" | 5 1/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €408.96 | |
| C | 80BS17 1 1/2 | 1 1/2" | 5.442" | 5.95" | 4" | 1 1/2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €138.30 | |
| D | 80BS9 1 3/16 | 1 1/2" | 2.9238" | 3.347" | 2 1/4" | 1 5/8" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 3/16" | €73.18 | |
| E | 80BS38 1 1/2 | 1 1/2" | 12.1096" | 12.668" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €255.55 | |
| C | 80BS19 1 1/2 | 1 1/2" | 6.076" | 6.593" | 4 1/4" | 1 1/2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €157.16 | |
| A | 80BS60 1 1/2 | 1 1/2" | 19.1073" | 19.681" | 5 1/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €482.10 | |
| B | 80BS37 1 1/2 | 1 1/2" | 11.792" | 12.349" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €247.56 | |
| A | 80BS55 1 1/2 | 1 1/2" | 17.5166" | 18.088" | 5 1/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €421.40 | |
| B | 80BS32 1 1/2 | 1 1/2" | 10.202" | 10.753" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €220.77 | |
| C | 80BS14 1 1/2 | 1 1/2" | 4.494" | 4.981" | 3 1/4" | 1 1/2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €112.53 | |
| B | 80BS30 1 1/2 | 1 1/2" | 9.567" | 10.114" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €209.38 | |
| C | 80BS16 1 1/2 | 1 1/2" | 5.126" | 5.627" | 4" | 1 1/2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €122.69 | |
| B | 80BS39 1 1/2 | 1 1/2" | 12.4275" | 12.987" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €258.78 | |
| A | 80BS50 1 1/2 | 1 1/2" | 15.926" | 16.495" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €367.15 | |
| E | 80BS40 1 1/2 | 1 1/2" | 12.7455" | 13.306" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €262.18 | |
| B | 80BS36 1 1/2 | 1 1/2" | 11.474" | 12.03" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €242.42 | |
| C | 80BS13 1 1/2 | 1 1/2" | 4.179" | 4.657" | 3" | 1 1/2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €102.25 | |
| B | 80BS29 1 1/2 | 1 1/2" | 9.2491" | 9.795" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €203.48 | |
| A | 80BS48 1 1/2 | 1 1/2" | 15.2898" | 15.857" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €327.55 | |
| F | 80BS47 1 1/2 | 1 1/2" | 14.9717" | 15.538" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €323.00 | |
| A | 80BS46 1 1/2 | 1 1/2" | 14.6536" | 15.219" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €318.82 | |
| B | 80BS20 1 1/2 | 1 1/2" | 6.3925" | 6.914" | 4 1/4" | 1 1/2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €166.70 | |
| B | 80BS35 1 1/2 | 1 1/2" | 11.156" | 11.711" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €236.17 | |
| A | 80BS45 1 1/2 | 1 1/2" | 14.3356" | 14.901" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €311.20 | |
| B | 80BS34 1 1/2 | 1 1/2" | 10.838" | 11.392" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €230.27 | |
| B | 80BS27 1 1/2 | 1 1/2" | 8.614" | 9.156" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €192.65 | |
| E | 80BS25 1 1/2 | 1 1/2" | 7.9787" | 8.516" | 4 1/4" | 1 3/4" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €182.00 | |
| B | 80BS33 1 1/2 | 1 1/2" | 10 13/25" | 11.072" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €224.96 | |
| C | 80BS12 1 1/2 | 1 1/2" | 3.864" | 4.332" | 3 1/8" | 1 5/8" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €95.90 | |
| A | 80BS49 1 1/2 | 1 1/2" | 15.6079" | 16.176" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €356.90 | |
| B | 80BS26 1 1/2 | 1 1/2" | 8.296" | 8.836" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €187.14 | |
| A | 80BS43 1 1/2 | 1 1/2" | 13.6995" | 14.263" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €303.99 | |
| B | 80BS31 1 1/2 | 1 1/2" | 9.8845" | 10.434" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €217.34 | |
| C | 80BS18 1 1/2 | 1 1/2" | 5.759" | 6.271" | 4 1/4" | 1 1/2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €147.63 | |
| A | 80BS52 1 1/2 | 1 1/2" | 16.5622" | 17.132" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €387.58 | |
| A | 80BS59 1 1/2 | 1 1/2" | 18.7892" | 19.363" | 5 1/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €468.43 | |
| A | 80BS41 1 1/2 | 1 1/2" | 13.0635" | 13 5/8" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €275.09 | |
| B | 80BS23 1 1/2 | 1 1/2" | 7.3439" | 7.876" | 4 1/4" | 1 3/4" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €204.60 | |
| B | 80BS21 1 1/2 | 1 1/2" | 6.71" | 7.235" | 4 1/4" | 1 3/4" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €173.77 | |
| C | 80BS15 1 1/2 | 1 1/2" | 4.81" | 5.305" | 3 1/2" | 1 1/2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €112.58 | |
| C | 80BS18W 1 1/2 | 1 1/2" | 5.759" | 6.271" | 4 1/4" | 1 1/2" | 3/8"-16 | (1) At 90° F/Keyway | 1 1/2" | €147.63 | |
| A | 80BS56 1 1/2 | 1 1/2" | 17.835" | 18.407" | 5 1/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €431.85 | |
| G | 80BS53 1 1/2 | 1 1/2" | 16.8803" | 17.451" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €403.92 | |
| B | 80BS28 1 1/2 | 1 1/2" | 8.931" | 9.475" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €197.21 | |
| A | 80BS42 1 1/2 | 1 1/2" | 13.3815" | 13.944" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €297.14 | |
| A | 80BS51 1 1/2 | 1 1/2" | 16.2441" | 16.813" | 4 3/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €377.32 | |
| B | 80BS24 1 1/2 | 1 1/2" | 7.661" | 8.196" | 4 1/4" | 1 3/4" | 3/8"-16 | (1) Over Keyway And (1) At 90° | 1 1/2" | €207.03 | |
| A | 80BS58 1 1/2 | 1 1/2" | 18.471" | 19.044" | 5 1/4" | 2" | 3/8"-16 | (1) Over Keyway And (1) At 90° | - | €457.61 | |
| B | 80BS20 1 1/4 | 1 1/4" | 6.3925" | 6.914" | 4 1/4" | 1 1/2" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 1/4" | €166.70 | |
| C | 80BS15 1 1/4 | 1 1/4" | 4.81" | 5.305" | 3 1/2" | 1 1/2" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 1/4" | €112.58 | |
| C | 80BS18W 1 1/4 | 1 1/4" | 5.759" | 6.271" | 4 1/4" | 1 1/2" | 5/16"-18 | (1) At 90° F/Keyway | 1 1/4" | €147.63 | |
| B | 80BS21 1 1/4 | 1 1/4" | 6.71" | 7.235" | 4 1/4" | 1 3/4" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 1/4" | €173.77 | |
| C | 80BS16 1 1/4 | 1 1/4" | 5.126" | 5.627" | 4" | 1 1/2" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 1/4" | €122.69 | |
| E | 80BS24 1 1/4 | 1 1/4" | 7.6613" | 8.196" | 4 1/4" | 1 3/4" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 1/4" | €207.03 | |
| E | 80BS34 1 1/4 | 1 1/4" | 10.838" | 11.392" | 4 3/4" | 2" | 5/16"-18 | (1) Over Keyway And (1) At 90° | - | €230.27 | |
| C | 80BS14 1 1/4 | 1 1/4" | 4.494" | 4.981" | 3 1/4" | 1 1/2" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 1/4" | €112.53 | |
| B | 80BS26 1 1/4 | 1 1/4" | 8.296" | 8.836" | 4 3/4" | 2" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 1/4" | €187.14 |
