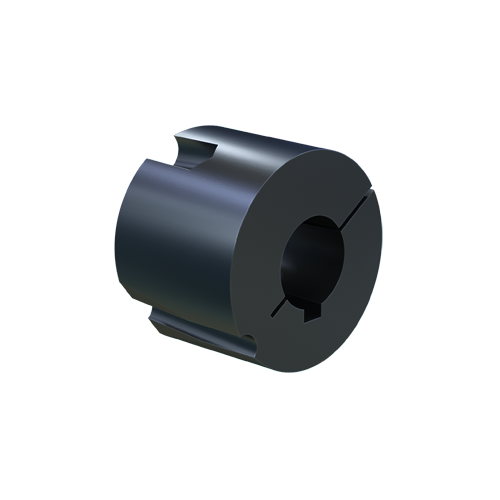

MARTIN SPROCKET 1615 22MM Taper Bushing, 0.866 Inch Bore, 6 x 2.8 Inch Key, 1.5 Inch Length, Steel
Item: AM7ECBModel: 1615 22MM
7 In Stock
22 mm
Ships within 2 days via
€38.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Taper Bushing |
| Barrel Dia. | 2 1/4" |
| Bolt Circle Dia. | 2 1/8" |
| Bore Dia. | 22 mm |
| Hub Dia. | 3" |
| Key Way Size | 6 mm x 2.8 mm |
| Length | 1 1/2" |
| Material | Steel |
| No. Of Bolt Holes | 2 |
| Screw Size | 3/8"-16 x 5/8" |
| Suitable For Use With | Taper Bushed Parts |
| Taper | 8° |
| Torque | 4300 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Key Way Size | Torque | Bore Size | Material | Bolt Circle Dia. | Type | No. Of Bolt Holes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1615 1/2 | - | 1/8" x 1/16" | - | 1/2" | Steel | - | - | - | €38.16 | |
|
1615 9/16 | - | 1/8" x 1/16" | - | 9/16" | - | - | - | - | €38.16 | |
|
1615 5/8 | - | 3/16" x 3/32" | - | 5/8" | Steel | - | - | - | €38.16 | |
|
1615 11/16 | 1.063" to 1.625" | 1/4" x 1/8" | 175 lbs.-in. | 11/16" | Steel | 2 1/8" | Standard | 2 | €38.16 | |
 |
1615 3/4 | - | 3/16" x 3/32" | - | 3/4" | Steel | - | - | - | €38.16 | |
 |
1615 13/16 | 1 3/16" | 1/4" x 1/8" | 4300 lbs.-in. | 13/16" | Steel | 2 1/8" | Standard | 2 | €38.16 | |
|
1615 7/8 | - | 3/16" x 3/32" | - | 7/8" | Steel | - | - | - | €38.16 |
