MARTIN SPROCKET 140CTB45 Sprocket, 140 Chain, 45 Teeth, 25.087 Inch Pitch Dia., 26.076 Inch O.D., Steel
Get it by Friday, Aug 21
€1,305.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1.438" to 4" |
| Bore Type | Bushed |
| Bushing Part Number | 4040 |
| Bushing Type | TB 4040 |
| Chain Number | 140 |
| Chain Pitch | 1 3/4" |
| Chain Size | #140 |
| Construction | Welded With Lightening Holes |
| Construction Type | Welded With Lightening Holes |
| For Chain Number | 140 |
| For Chain Pitch | 1 3/4" |
| Hub Configuration | C |
| Hub Dia. | 7 3/4" |
| Hub Outside Dia. | 7 3/4" |
| Individually Packaged | No |
| Length Through Bore | 4" |
| Length Thru Bore | 4" |
| Material | Steel |
| Max. Bore Size | 4" |
| Min. Bore Size | 1 7/16" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 45 |
| Outside Dia. | 26.076" |
| Pitch | 1 3/4" |
| Pitch Dia. | 25.0873" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 4" |
| Storage Dimension Length | 26.076" |
| Storage Dimension Width | 26.076" |
| Type | Type C Single Strand Welded Bushed |
Shipping Info:
| Ship weight (kg) | 53.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 66.24 |
| Ship width (cm) | 66.24 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Length Thru Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
140BTB12 | 6.762" | 12 | 1 3/4" | 4 1/4" | 7.581" | 7.581" | 1 3/4" | 1 3/4" | €468.29 | |
 |
140BTB13 | 7.313" | 13 | 2" | 5 1/4" | 8.15" | 8.15" | 2" | 2" | €544.85 | |
 |
140BTB14 | 7.864" | 14 | 2" | 5 1/4" | 8.717" | 8.717" | 2" | 2" | €597.98 | |
 |
140BTB15 | 8.417" | 15 | 2" | 5 1/4" | 9.283" | 9.283" | 2" | 2" | €543.12 | |
 |
140BTB16 | 8.97" | 16 | 2" | 5 1/4" | 9.848" | 9.848" | 2" | 2" | €573.80 | |
 |
140BTB17 | 9.524" | 17 | 2" | 5 1/4" | 10.412" | 10.412" | 2" | 2" | €596.73 | |
 |

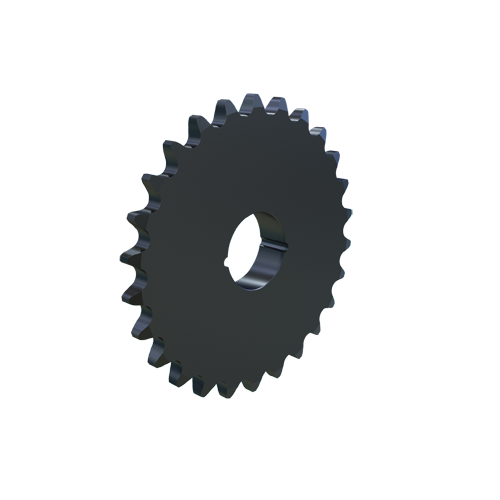

140BTB26 | 14.518" | 26 | 2" | 5 1/4" | 15.463" | 15.463" | 2" | 2" | €823.68 |
