MARTIN SPROCKET 140BTB17 Sprocket, 140 Chain, 17 Teeth, 9.524 Inch Pitch Dia., 10.412 Inch O.D., Steel
Get it by Thursday, Dec 18
€596.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | 3020 |
| Chain Number | 140 |
| Chain Pitch | 1 3/4" |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 140 |
| For Chain Pitch | 1 3/4" |
| Hub Configuration | B |
| Hub Diameter | 5 1/4" |
| Hub Outside Dia. | 5 1/4" |
| Individually Packaged | No |
| Length Through Bore | 2" |
| Length Thru Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3" |
| Min. Bore Size | 15/16" |
| No. Of Teeth | 17 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 17 |
| Outside Dia. | 10.412" |
| Pitch | 1 3/4" |
| Pitch Dia. | 9.5238" |
| Pitch Diameter | 9.524" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 10.412" |
| Storage Dimension Width | 10.412" |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 26.44 |
| Ship width (cm) | 26.44 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
140BTB12 | 12 | 6.7615" | 7.581" | 1 3/4" | 2517 Taper Lock | 140 | 1 3/4" | Bushed | €468.29 | |
 |

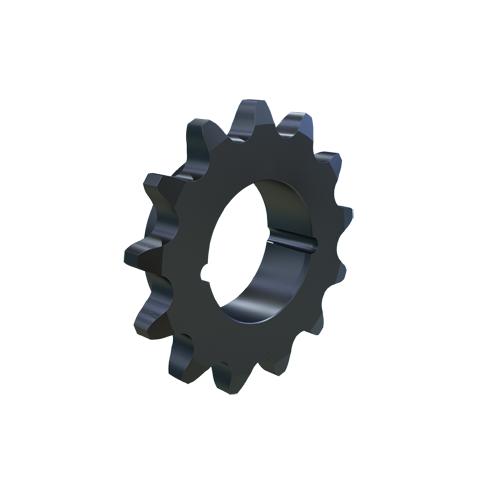

140BTB13 | 13 | 7.313" | 8.15" | 2" | 3020 Taper Lock | 140 | 1 3/4" | Bushed | €544.85 | |
 |
140BTB14 | 14 | 7.864" | 8.717" | 2" | 3020 Taper Lock | 140 | 1 3/4" | Bushed | €597.98 | |
 |
140BTB15 | 15 | 8.417" | 9.283" | 2" | TB 3020 | 140 | 1 3/4" | Bushed | €543.12 | |
 |
140BTB16 | 16 | 8.97" | 9.848" | 2" | 3020 Taper Lock | 140 | 1 3/4" | Bushed | €573.80 | |
 |
140CTB45 | 45 | 25.0873" | 26.076" | 4" | TB 4040 | 140 | 1 3/4" | Bushed | €1,305.88 | |
 |
140BTB26 | 26 | 14.518" | 15.463" | 2" | 3020 Taper Lock | 140 | 1 3/4" | Bushed | €823.68 |
