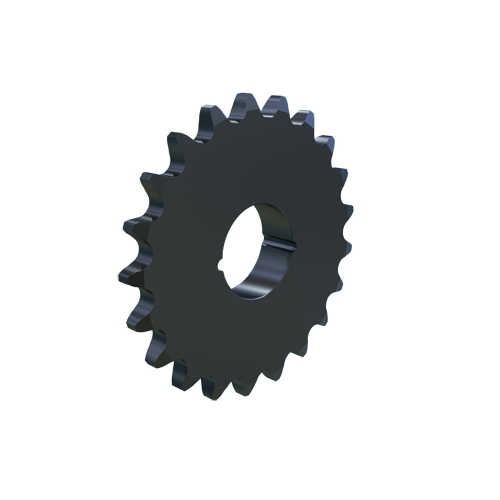

MARTIN SPROCKET 140BTB21 Sprocket, 140 Chain, 21 Teeth, 11.742 Inch Pitch Dia., 12.660 Inch O.D., Steel
Get it by Friday, Aug 28
€806.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | 3020 |
| Bushing Type | 3020 Taper Lock |
| Chain Number | 140 |
| Chain Pitch | 1 3/4" |
| Chain Size | #140 |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 140 |
| For Chain Pitch | 1 3/4" |
| Hub Configuration | B |
| Hub Dia. | 5 1/4" |
| Hub Outside Dia. | 5 1/4" |
| Individually Packaged | No |
| Length Through Bore | 2" |
| Length Thru Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3" |
| Min. Bore Size | 15/16" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 21 |
| Pitch | 1 3/4" |
| Pitch Dia. | 11.7416" , 11.742" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 12.66" |
| Storage Dimension Width | 12.66" |
| Type | Taper Bushed Type B |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 32.16 |
| Ship width (cm) | 32.16 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Length Thru Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
140BTB12 | 6.762" | 12 | 1 3/4" | 4 1/4" | 7.581" | 7.581" | 1 3/4" | 1 3/4" | €468.29 | |
 |
140BTB13 | 7.313" | 13 | 2" | 5 1/4" | 8.15" | 8.15" | 2" | 2" | €544.85 | |
 |
140BTB14 | 7.864" | 14 | 2" | 5 1/4" | 8.717" | 8.717" | 2" | 2" | €597.98 | |
 |
140BTB15 | 8.417" | 15 | 2" | 5 1/4" | 9.283" | 9.283" | 2" | 2" | €543.12 | |
 |
140BTB16 | 8.97" | 16 | 2" | 5 1/4" | 9.848" | 9.848" | 2" | 2" | €573.80 | |
 |
140CTB45 | 25.0873" | 45 | 4" | 7 3/4" | 26.076" | 26.076" | 4" | 4" | €1,305.88 | |
 |
140BTB17 | 9.524" | 17 | 2" | 5 1/4" | 10.412" | 10.412" | 2" | 2" | €596.73 |
