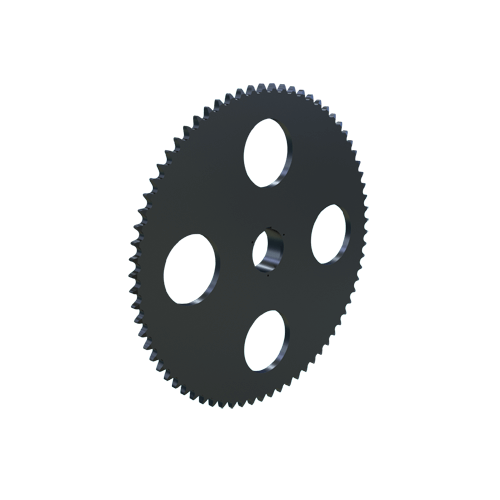

MARTIN SPROCKET 100R72 Sprocket, 100 Chain, 72 Teeth, 28.657 Inch Pitch Dia., 29.380 Inch O.D., Steel
29.380"
Get it by Tuesday, Aug 25
€1,864.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bore Type | Bushed |
| Bushing Part Number | R1 |
| Bushing Size | R1 |
| Bushing Type | MST R1 |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Chain Size | #100 |
| Construction | Welded With Lightening Holes |
| Construction Type | Welded With Lightening Holes |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Dia. | 5 3/8" |
| Hub Outside Dia. | 5 1/2" |
| Individually Packaged | No |
| Key Way Size | 3/4" |
| Keyway Width | 3/4" |
| Length Through Bore | 2" |
| Length Thru Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 72 |
| Outside Dia. | 29.38" |
| Pitch | 1 1/4" |
| Pitch Dia. | 28.657" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 29.38" |
| Storage Dimension Width | 29.38" |
| Type | Type 5 Single Strand Welded Bushed |
Shipping Info:
| Ship weight (kg) | 44.55 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 74.63 |
| Ship width (cm) | 74.63 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
100Q32 | 12.7529" | 32 | 1 3/4" | 4 1/4" | 0.75" to 2.688" | #100 | 13.441" | 13.441" | €624.82 | |
|
100R32 | 12.7529" | 32 | 2" | 5 1/2" | 1 1/8" to 3 3/4" | #100 | 13.441" | 13.441" | €624.82 | |
|
100Q35 | 13.9448" | 35 | 1 3/4" | 4 1/8" | 0.75" to 2.688" | #100 | 14.639" | 14.639" | €747.51 | |
 |
100R35 | 13.945" | 35 | 2 7/8" | 5 3/8" | 1 1/8" to 3 3/4" | 100 | 14.639" | 14.639" | €747.51 | |
|
100R40 | 15.9319" | 40 | 2" | 5 3/8" | 1 1/8" to 3 3/4" | #100 | 16.633" | 16.633" | €794.11 | |
 |
100R42 | 16.7269" | 42 | 2 7/8" | 5 3/8" | 1 1/8" to 3 3/4" | 100 | 17.43" | 17.43" | €813.51 | |
 |
100R54 | 21.498" | 54 | 2" | 5 3/8" | 1 1/8" to 3 3/4" | #100 | 22.212" | 22.212" | €1,093.58 |
