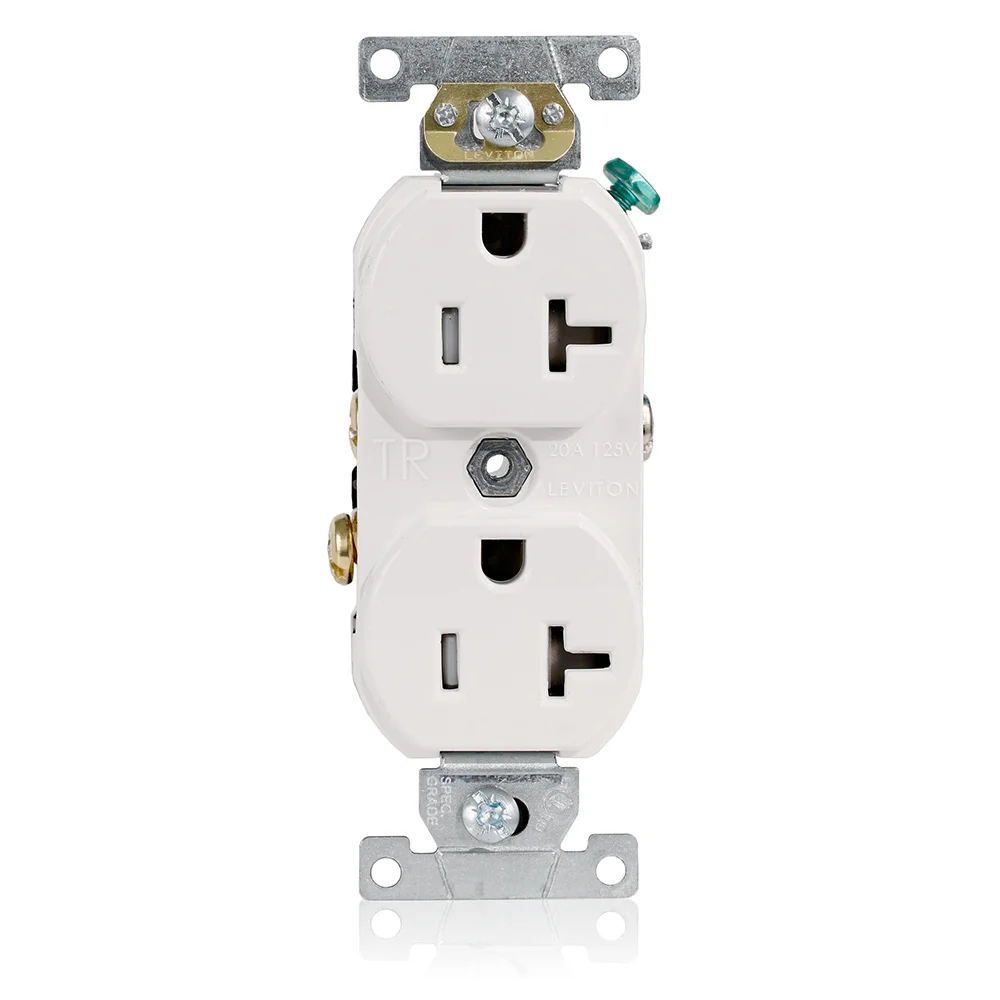

LEVITON TBR20-W Receptacle, Duplex, 5-20R, 20 A, 125V AC, White, 2 Poles, Screw Terminals
Item: CR9HXXModel: TBR20-WCross Ref: 792UT9
7 In Stock
Ships within 2 days via
10.00% off
€18.85 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Body Material | Thermoplastic |
| Color | White |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Gfci | No |
| Grounding | Grounded |
| Housing Color | White |
| Housing Material | Thermoplastic |
| Hp | 1 hp |
| Includes Mounting Hardware | Yes |
| Max. Operating Temp. | 60°C |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Special Resistance | Tamper Resistant |
| Standards | Ansi, Csa Certified, Nom Certified, Ul Listed |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 116.84 |
| Ship length (cm) | 3.96 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Current Rating | Wire Connection Location | Housing Color | Color | Nema Rating | Grounding | Amps | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

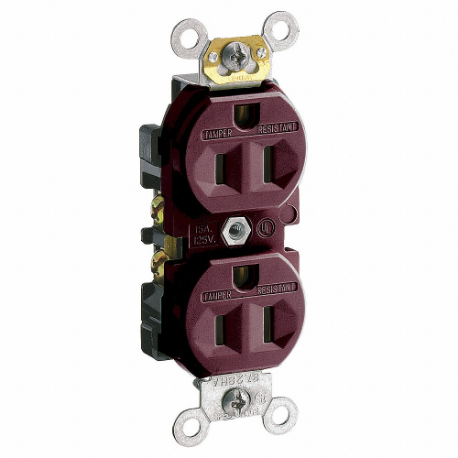

TCR15 | 15A | Side | Brown | Brown | NEMA WD-1 And NEMA WD-6 | Grounded | 15A | 1/2 hp | €12.57 | |
 |
TCR15-GY | 15A | Side | Gray | Gray | NEMA WD-1 And NEMA WD-6 | Grounded | 15A | 1/2 hp | €12.71 | |
 |
TCR15-W | 15A | Side | White | White | NEMA WD-1 And NEMA WD-6 | Grounded | 15A | 1/2 hp | €12.29 | |
 |
TBR20 | 20A | Back, Side | Brown | Brown | NEMA WD-1, NEMA WD-6 | Grounded | 20A | 1 hp | €20.88 | |
 |
TBR20-GY | 20A | Back, Side | Gray | Gray | NEMA WD-1, NEMA WD-6 | Grounded | 20A | 1 hp | €20.88 | |
 |
TBR20-I | 20A | Back, Side | Ivory | Ivory | NEMA WD-1, NEMA WD-6 | Grounded | 20A | 1 hp | €20.01 |
