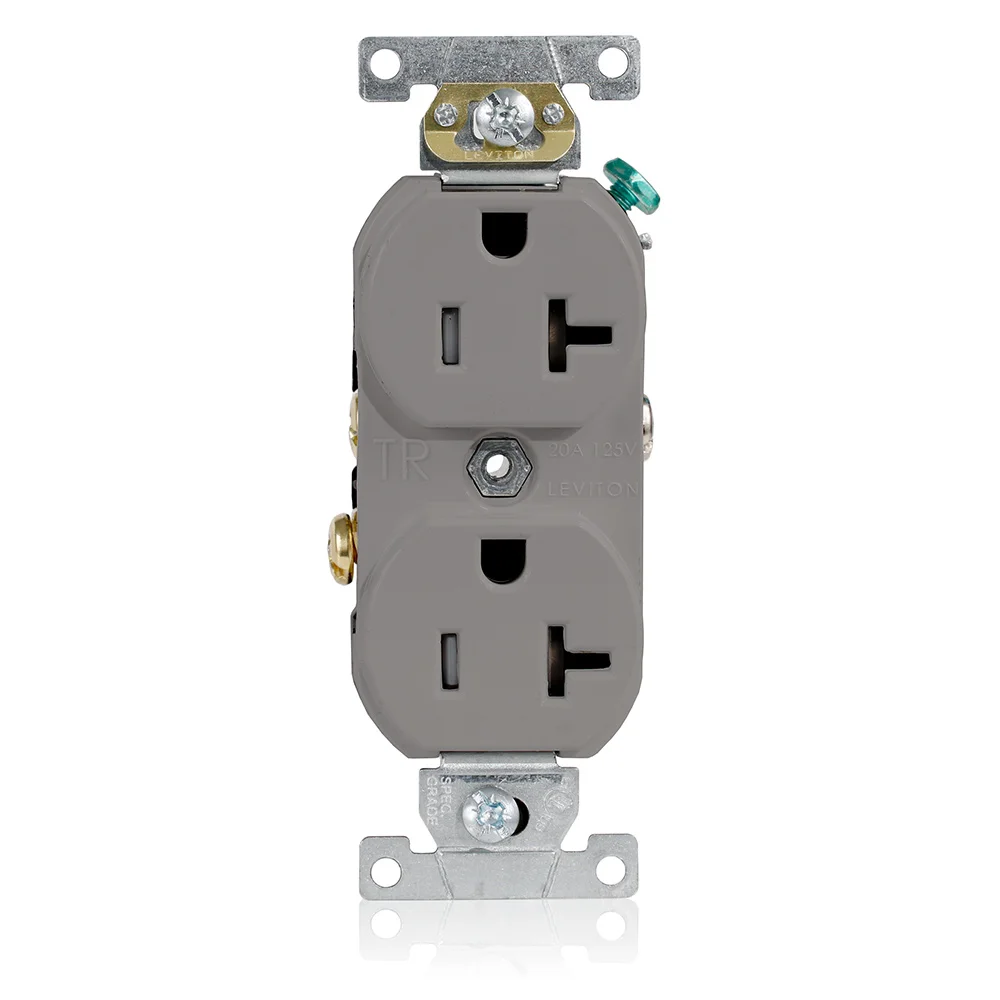

LEVITON TBR20-GY Receptacle, Duplex, 5-20R, 20 A, 125V AC, Gray, 2 Poles, Screw Terminals, Tamper Resistant | CR9HWH 792UT7

LEVITON TBR20-GY Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray

Item: CR9HWHModel: TBR20-GYCross Ref: 792UT7
7 In Stock
Color
Voltage Rating

Ships within 2 days via

€20.88
5.00% off
€19.84 /unit
This product can only be shipped in multiples of 50
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Receptacle
Ac Hp Ratings At Rated Voltage 1 hp
Amps 20A
Body Material Thermoplastic
Color Gray
Connection Orientation Straight
Contact Material Brass
Cover Type No Cover
Current Limiting Full Rated Current
Current Rating 20A
Device Type Duplex Receptacle Outlet
Dielectric Voltage Withstands 2000V Per UL498
Face Material Thermoplastic
Features Two Outlets Marked Controlled, Tamper Resistant, Smooth Face
Gfci No
Grade Commercial
Ground Clips Material Brass
Grounding Grounded , Self Grounding
Grounding Screw Finish Plated
Grounding Screw Material Steel
Housing Color Gray
Housing Material Thermoplastic
Hp 1 hp
Includes Mounting Hardware Yes
Line Contacts Material Brass
Line Contacts Thickness 0.031"
Max. Operating Temp. 60°C
Maximum Operating Temperature 140°F
Maximum Wire Size 10 AWG
Min. Operating Temp. -40°C
Min. Wire Size 14 AWG
Minimum Operating Temperature -40°F
Mounting Hardware Included Yes
Mounting Type Flush
Nema Enclosure Rating Not Rated
Nema Rating NEMA WD-1, NEMA WD-6
Nema Receptacle Configuration NEMA 5-20R
Number Of Outlets 2
Number Of Poles 2
Number Of Wires 3
Operating Temp. -40°C to +60°C
Phase Single
Polarized Yes
Product Datasheet leviton-tbr20-gy.pdf
Receptacle Type Duplex
Screw Terminal Torque 14 lbs.-in. to 18 lbs.-in.
Shutter Mechanism Delrin Acetal
Special Resistance Tamper Resistant
Standards Ansi, Csa Certified, Nom Certified, Ul Listed
Strap Finish Zinc Plated
Strap Material Steel
Temp. Rise Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current
Terminal Accom. 14 AWG to 10 AWG
Terminal Id Brass Hot, Green Ground, Silver Neutral
Terminal Screws Finish Plated
Terminal Screws Material Steel
Termination Back Or Side Wire
Voltage 125V AC
Voltage Rating 125V AC
Wire Connection Location Back, Side
Wire Connection Type Screw Terminals

Shipping Info:

Ship weight (kg) 0.45
Ship height (cm)22.23
Ship length (cm)31.12
Ship width (cm)3.51
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelCurrent RatingWire Connection LocationHousing ColorColorNema RatingGroundingAmpsHpPrice
LEVITON TCR15 Receptacle, Duplex, 5-15R, 15 A, 125V AC, Brown, 2 Poles, Screw Terminals | CR9HTV 792UU0 TCR1515ASideBrownBrownNEMA WD-1 And NEMA WD-6Grounded15A1/2 hp€12.57
LEVITON TCR15-GY Receptacle, Duplex, 5-15R, 15 A, 125V AC, Gray, 2 Poles, Screw Terminals, Tamper Resistant | CR9HUC 792UU1 TCR15-GY15ASideGrayGrayNEMA WD-1 And NEMA WD-6Grounded15A1/2 hp€12.71
LEVITON TCR15-W Receptacle, Duplex, 5-15R, 15 A, 125V AC, White, 2 Poles, Screw Terminals | CR9HUP 792UU2 TCR15-W15ASideWhiteWhiteNEMA WD-1 And NEMA WD-6Grounded15A1/2 hp€12.29
LEVITON TBR20 Receptacle, Duplex, 5-20R, 20 A, 125V AC, Brown, 2 Poles, Screw Terminals | CR9HVX 792UT6 TBR2020ABack, SideBrownBrownNEMA WD-1, NEMA WD-6Grounded20A1 hp€20.88
LEVITON TBR20-I Receptacle, Duplex, 5-20R, 20 A, 125V AC, Ivory, 2 Poles, Screw Terminals | CR9HWN 792UT8 TBR20-I20ABack, SideIvoryIvoryNEMA WD-1, NEMA WD-6Grounded20A1 hp€20.01
LEVITON TBR20-W Receptacle, Duplex, 5-20R, 20 A, 125V AC, White, 2 Poles, Screw Terminals | CR9HXX 792UT9 TBR20-W20ABack, SideWhiteWhiteNEMA WD-1, NEMA WD-6Grounded20A1 hp€20.95
