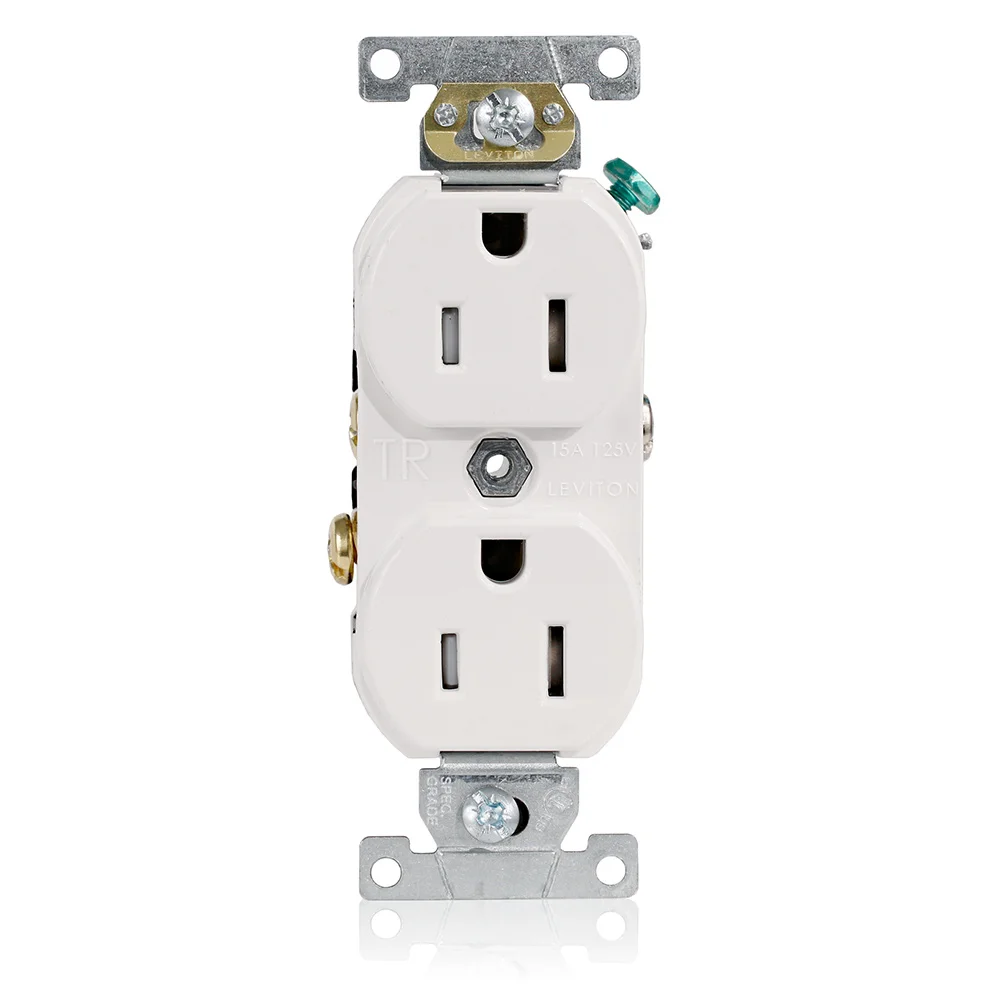

LEVITON TCR15-W Duplex Traditional Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Item: CR9HUPModel: TCR15-WCross Ref: 792UU2
7 In Stock
Ships within 2 days via
5.00% off
€11.67 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Amps Limiting | Full Rated Current |
| Body Material | Thermoplastic |
| Color | White |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Depth | 24/25" |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Thermoplastic |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.3" |
| Features | Tamper Resistant, Smooth Face |
| Flammability | Rated V-2 Per UL94 |
| Gfci | No |
| Grade | Commercial |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Finish | Plated |
| Grounding Screw Material | Steel |
| Housing Color | White |
| Housing Material | Thermoplastic |
| Hp | 1/2 hp |
| Included Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Line Contacts Thickness | 0.031" |
| Max. Operating Temp. | 140°F |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C , -40°F |
| Min. Wire Size | 14 AWG |
| Mount Hole Center To Center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-1 And NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Outlets | 2 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Overall Depth | 1" |
| Phase | 1 |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Shutter Mechanism | Delrin Acetal |
| Special Resistance | Tamper Resistant |
| Strap Finish | Zinc Plated |
| Strap Material | Steel |
| Temp. Rise | Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Plated |
| Terminal Screws Material | Steel |
| Termination | Side Wire |
| Voltage | 125V AC |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminal |
| Wire Type | Solid Or Stranded Building Wire |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 31.12 |
| Ship width (cm) | 3.51 |
| Country of Origin | MX |
Product Variants
| Product | Model | Color | Amps | Housing Color | Wire Connection Location | Hp | Nema Rating | Grounding | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TCR15 | Brown | 15A | Brown | Side | 1/2 hp | NEMA WD-1 And NEMA WD-6 | Grounded | -40°F | €12.57 | |
 |
TCR15-GY | Gray | 15A | Gray | Side | 1/2 hp | NEMA WD-1 And NEMA WD-6 | Grounded | -40°F | €12.71 | |
 |
TBR20 | Brown | 20A | Brown | Back, Side | 1 hp | NEMA WD-1, NEMA WD-6 | Grounded | -40°F | €20.88 | |
 |
TBR20-GY | Gray | 20A | Gray | Back, Side | 1 hp | NEMA WD-1, NEMA WD-6 | Grounded | -40°F | €20.88 | |
 |
TBR20-I | Ivory | 20A | Ivory | Back, Side | 1 hp | NEMA WD-1, NEMA WD-6 | Grounded | -40°F | €20.01 | |
 |
TBR20-W | White | 20A | White | Back, Side | 1 hp | NEMA WD-1, NEMA WD-6 | Grounded | -40°F | €20.95 |
