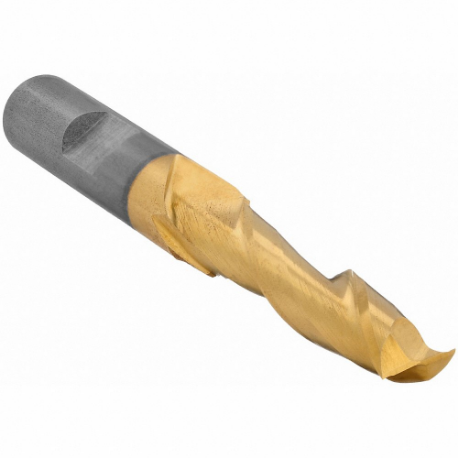

CLEVELAND C33769 0 Square End Mill, Center Cutting, 2 Flutes, 29/64 Inch Milling Dia, 13/16 Inch Cut
Item: CQ9VAVModel: C33769Cross Ref: 438F08 / 0
7 In Stock
Ships within 2 days via
10.00% off
€65.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Cast Iron (k) Compatibility | Yes |
| Cutting Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Cutting Length | 0.812" |
| Cutting Type | Center Cutting |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Style | Square |
| End Type | Single End |
| Finish | Tin |
| Grade | General Purpose |
| Hardened Compatibility | No |
| Helix Angle | 30° |
| List Number | HG-2-TN |
| Material | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Milling Dia. | 29/64" |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| Non Ferrous (n) Compatibility | Yes |
| Number Of Flutes | 2 |
| Overall Length | 3 1/4" |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 1/2" |
| Shank Type | Weldon |
| Stainless (m) Compatibility | No |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.51 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Flutes | Primary Material Application | Shank Dia. | List Number | Overall Length | Helix Angle | Cutting Direction | Milling Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C38916 | 2 | Cast Iron, Steel | 1 1/4" | HG-2-TC | 4 1/2" | 30° | Right Hand | 1 1/2" | €380.12 | |
 |
C33799 | 2 | Cast Iron, Steel | 1" | HG-2-TN | 4 1/2" | 30° | Right Hand | 1 1/2" | €359.63 | |
|
C38915 | 2 | Cast Iron, Steel | 1" | HG-2-TC | 4 1/2" | 30° | Right Hand | 1 1/2" | €377.15 | |
|
C33800 | 2 | Cast Iron, Steel | 1 1/4" | HG-2-TN | 4 1/2" | 30° | Right Hand | 1 1/2" | €359.63 | |
|
C33796 | 2 | Cast Iron, Steel | 1" | HG-2-TN | 4 1/2" | 30° | Right Hand | 1 1/4" | €271.15 | |
 |
C38911 | 2 | Cast Iron, Steel | 7/8" | HG-2-TC | 4 1/8" | 30° | Right Hand | 1 1/4" | - | RFQ
|
 |
C38912 | 2 | Cast Iron, Steel | 1" | HG-2-TC | 4 1/2" | 30° | Right Hand | 1 1/4" | €290.56 |
