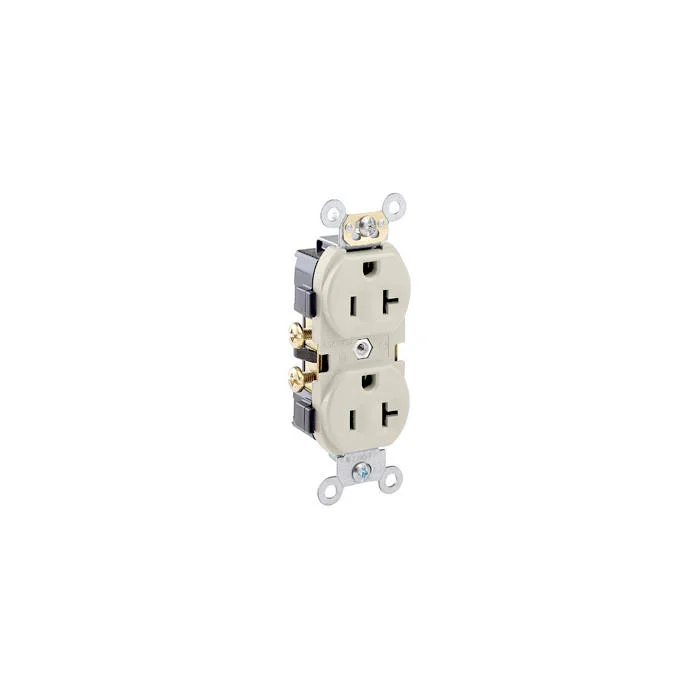

LEVITON CR20-T Duplex Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond
Item: CR9JAQModel: CR20-TCross Ref: 792U98
7 In Stock
Ships within 2 days via
5.00% off
€5.30 /unit
This product can only be shipped in multiples of 100Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 hp |
| Amps | 20A |
| Body Material | Thermoplastic |
| Color | Light Almond |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 20A |
| Depth | 1 2/25" |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Thermoplastic |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.5" |
| Features | Indented Face |
| Flammability | Rated V-2 Per UL94 |
| Gfci | No |
| Grade | Commercial |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Material | Steel |
| Grounding Screw Size | #8-32 |
| Housing Color | Light Almond |
| Housing Material | Thermoplastic |
| Hp | 1 hp |
| Includes | Isolated Ground |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Line Contacts Thickness | 0.031" |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-1 And NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Overall Depth | 1.1" |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Strap Finish | Zinc Plated |
| Strap Material | Steel |
| Temp. Rise | Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Material | Steel |
| Terminal Screws Size | #8-32 |
| Termination | Side Wire |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 23.5 |
| Ship length (cm) | 31.12 |
| Ship width (cm) | 3.96 |
| Country of Origin | US |
Product Variants
| Product | Model | Current Rating | Wire Connection Location | Housing Color | Grade | Nema Receptacle Configuration | Grounding | Amps | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BR15-E | 15A | Back, Side | Black | Commercial | NEMA 5-15R | Grounded | 15A | 1/2 hp | €7.79 | |
 |
CR15-GY | 15A | Side | Gray | Commercial | NEMA 5-15R | Grounded | 15A | 1/2 hp | €5.28 | |
 |
CR15-W | 15A | Side | White | Commercial | NEMA 5-15R | Grounded | 15A | 1/2 hp | €6.13 | |
 |
CR20-E | 20A | Side | Black | Commercial | NEMA 5-20R | Grounded | 20A | 1 hp | €6.18 | |
 |
BR20-E | 20A | Back, Side | Black | Commercial | NEMA 5-20R | Grounded | 20A | 1 hp | €9.05 | |
 |
CR20-GY | 20A | Side | Gray | Commercial | NEMA 5-20R | Grounded | 20A | 1 hp | €5.81 | |
 |
CR20-I | 20A | Side | Ivory | Commercial | NEMA 5-20R | Grounded | 20A | 1 hp | €6.28 |
