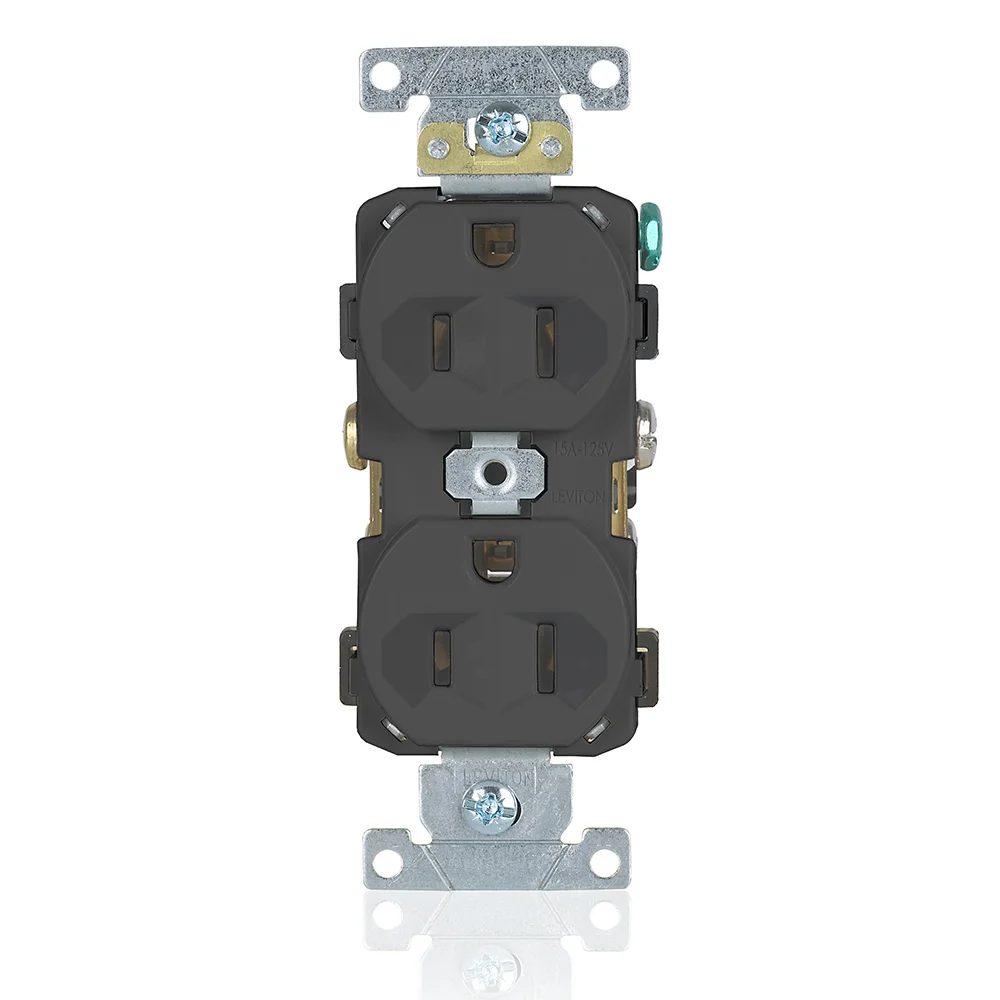

LEVITON BR15-E Receptacle, Duplex, 5-15R, 15 A, 125V AC, Black, 2 Poles, Screw Terminals, Std Resist
Item: CR9HTTModel: BR15-ECross Ref: 792U82
7 In Stock
Ships within 2 days via
10.00% off
€7.01 /unit
This product can only be shipped in multiples of 100Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Body Material | Polypropylene |
| Color | Black |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 15A |
| Gfci | No |
| Grounding | Grounded |
| Housing Color | Black |
| Housing Material | Polycarbonate |
| Hp | 1/2 hp |
| Max. Operating Temp. | 60°C |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 116.84 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Current Rating | Wire Connection Location | Housing Color | Grade | Nema Receptacle Configuration | Grounding | Amps | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CR15-GY | 15A | Side | Gray | Commercial | NEMA 5-15R | Grounded | 15A | 1/2 hp | €5.28 | |
 |
CR15-W | 15A | Side | White | Commercial | NEMA 5-15R | Grounded | 15A | 1/2 hp | €6.13 | |
 |
CR20-E | 20A | Side | Black | Commercial | NEMA 5-20R | Grounded | 20A | 1 hp | €6.18 | |
 |
BR20-E | 20A | Back, Side | Black | Commercial | NEMA 5-20R | Grounded | 20A | 1 hp | €9.05 | |
 |
CR20-GY | 20A | Side | Gray | Commercial | NEMA 5-20R | Grounded | 20A | 1 hp | €5.81 | |
 |
CR20-I | 20A | Side | Ivory | Commercial | NEMA 5-20R | Grounded | 20A | 1 hp | €6.28 | |
 |
CR20-W | 20A | Side | White | Commercial | NEMA 5-20R | Grounded | 20A | 1 hp | €6.34 |
